MAINTENANCE
FUSES

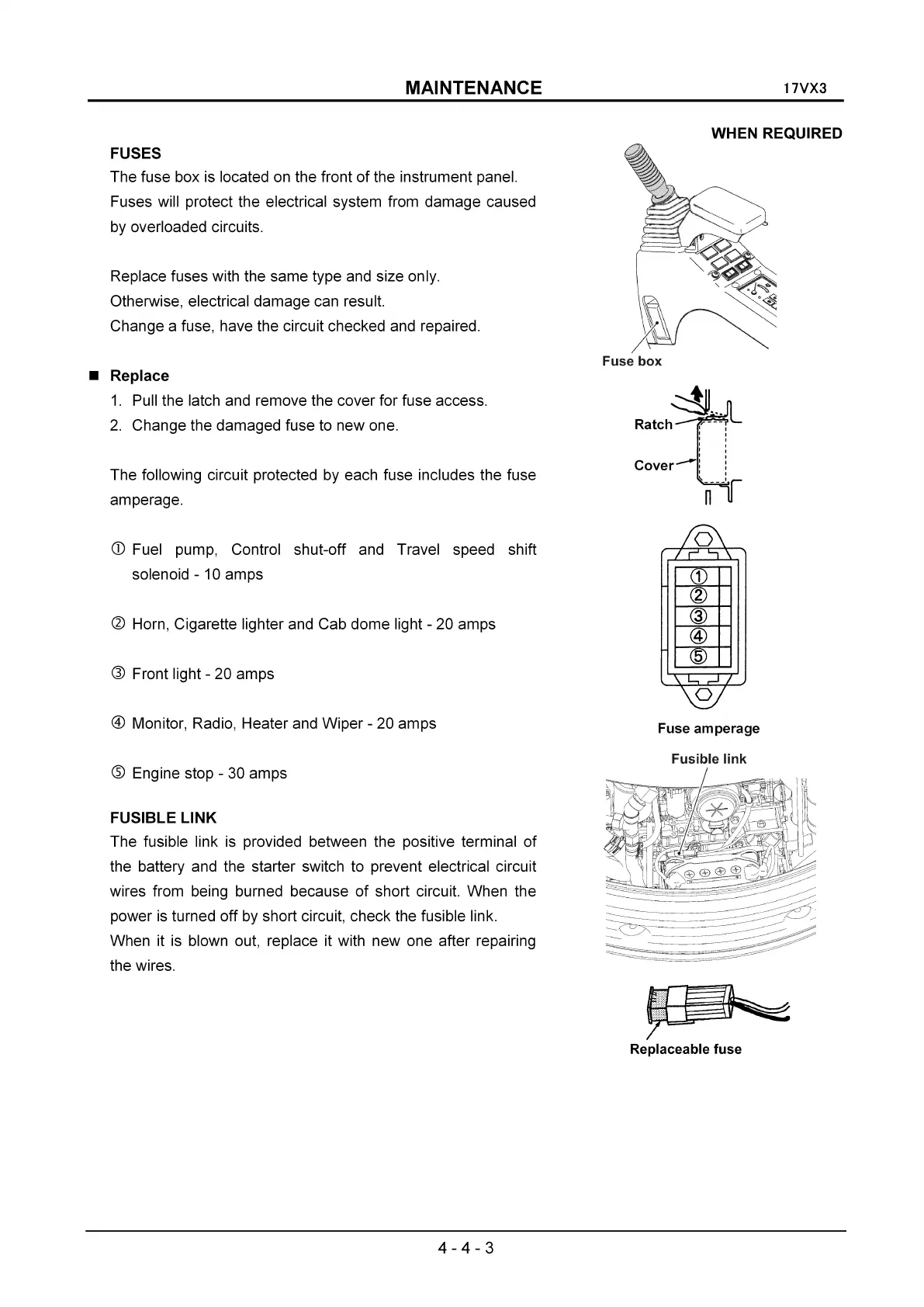

The fuse box is located on the front
of
the instrument panel.
Fuses will protect the electrical system from damage caused
by overloaded circuits.
Replace fuses with the same type and size only.
Otherwise, electrical damage can result.
Change a fuse, have the circuit checked and repaired.
• Replace
1.
Pull the latch and remove the cover for fuse access.
2.
Change the damaged fuse to new one.
The following circuit protected by each fuse includes the fuse
amperage.
CD
Fuel pump, Control shut-off and Travel speed shift
solenoid - 10 amps
G)
Horn, Cigarette lighter and Cab dome light - 20 amps
@ Front light - 20 amps
® Monitor, Radio, Heater and Wiper - 20 amps
~ Engine stop - 30 amps
FUSIBLE
LINK
The fusible link
is
provided between the positive terminal
of
the battery and the starter switch to prevent electrical circuit
wires from being burned because
of
short circuit. When the
power
is
turned off by short circuit, check the fusible link.
When it is blown out, replace it with new one after repairing
the wires.
4-4-3
17VX3
