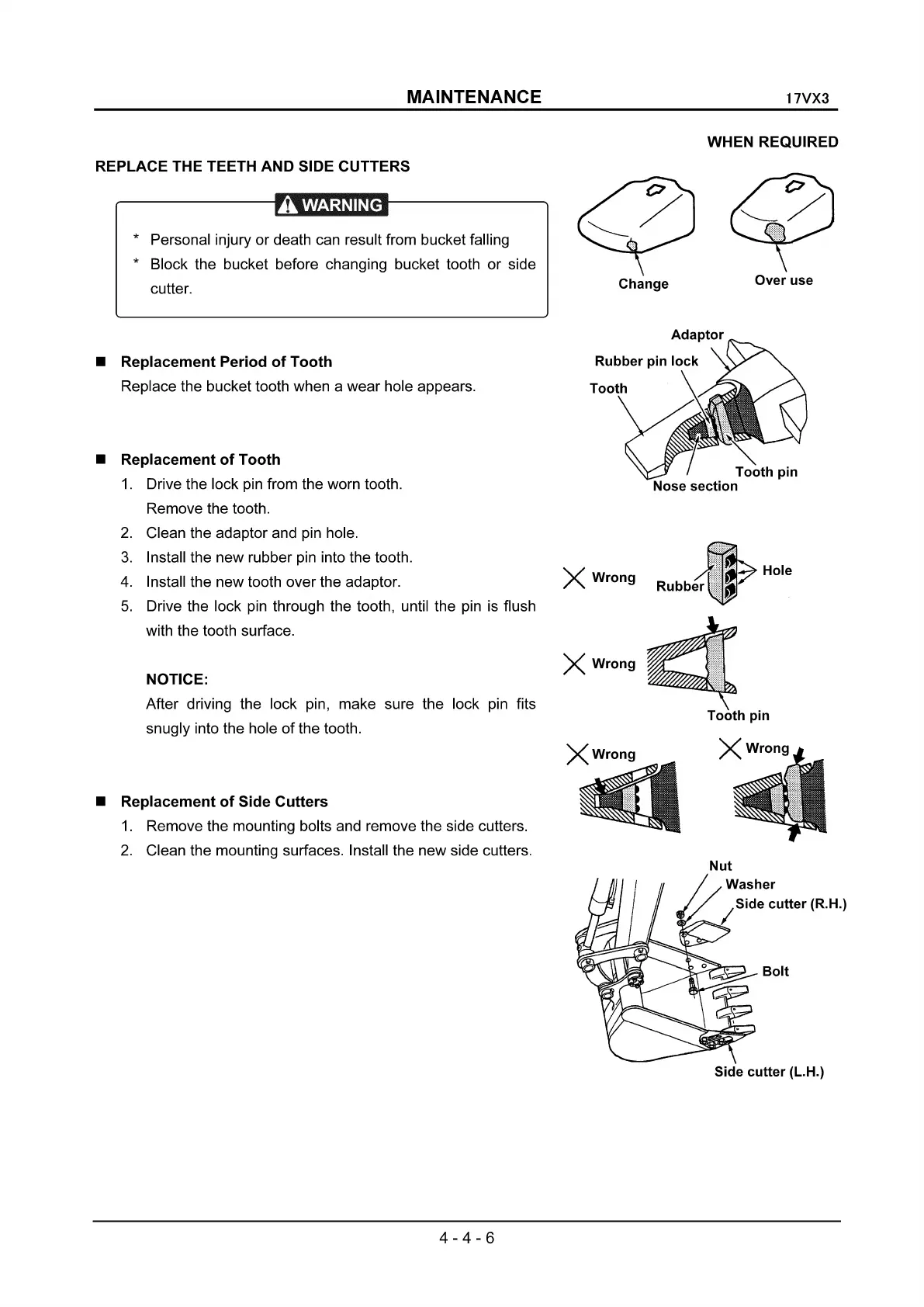

MAINTENANCE
17VX3
WHEN REQUIRED
REPLACE THE TEETH AND SIDE CUTTERS
* Personal injury or death can result from bucket falling
* Block the bucket before changing bucket tooth or side
cutter.
Change
Over use
X Wrong RUbb. Hole
• Replacement Period of Tooth
Replace the bucket tooth when a wear hole appears.
• Replacement
of Tooth
1. Drive the lock pin from the worn tooth.
Remove the tooth.
2. Clean the adaptor and pin hole.
3. Install the new rubber pin into the tooth.
4. Install the new tooth over the adaptor.
5. Drive the lock pin through the tooth, until the pin is flush
with the tooth surface.
NOTICE:
After driving the lock pin, make sure the lock pin fits
snugly into the hole of the tooth.
X Wrong
Tooth pin
Bolt
Nut
Washer
;Side cutter (R.H.)
• Replacement of Side Cutters
1. Remove the mounting bolts and remove the side cutters.
2. Clean the mounting surfaces. Install the new side cutters.
Side cutter (L.H.)
4-4-6
