6

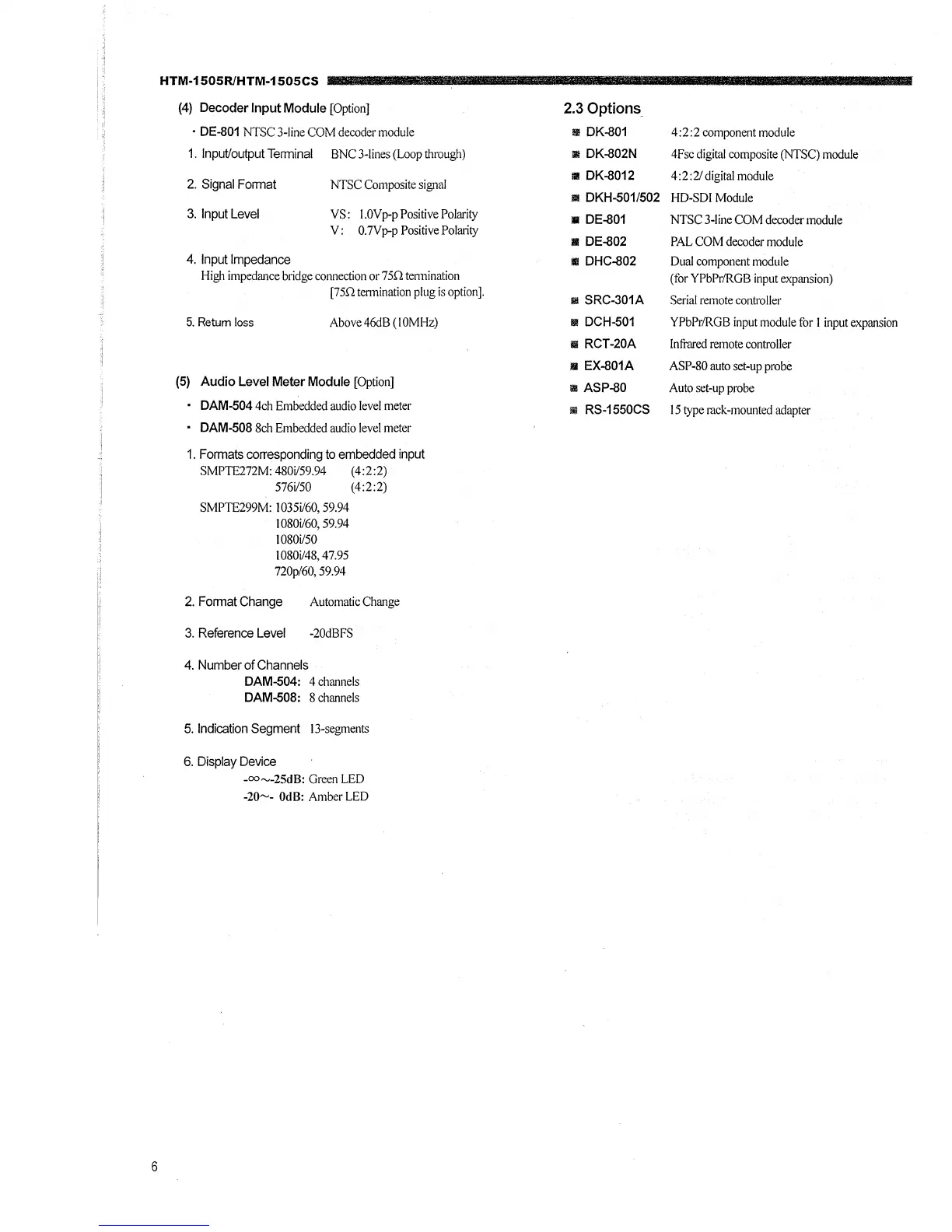

HTM-1505R/HTM-1505CS
(4) Decoder Input Module (Option]
· DE-801 NTSC 3-line COM decoder module
1. Input/output Terminal BNC 3-lines (Loop through)
2. Signal Format
3. Input Level
4. Input Impedance
NTSC Composite signal
VS: l.0Vp-p Positive Polarity
V: 0.7Vp-p Positive Polarity
High impedance bridge connection or 750. tennination
[750. tennination plug is option].
5. Rerum loss
Above 46dB ( I 0MHz)
(5) Audio Level Meter Module (Option]
DAM-504 4ch Embedded audio level meter
• DAM-508 8ch Embedded audio level meter
1. Formats corresponding to embedded input
SMPTE272M: 480i/59.94 (4:2:2)
576i/50 (4:2:2)
SMPTE299M: I 035i/60, 59.94
1080i/60, 59.94
1080i/50
1080i/48, 47.95
720p/60, 59.94
2. Format Change Automatic Change
3. Reference Level -20dBFS
4. Number of Channels
DAM-504: 4 channels
DAM-508: 8 channels
5. Indication Segment 13-segments
6. Display Device
-=~-25dB: Green LED
-20~- 0dB: Amber LED
2.3 Options_
111 DK-801
llll DK-802N
111 DK-8012
1111 DKH-501/502
111 DE-801
■
DE-802
■
DHC-802
• SRC-301A
1111 DCH-501
■
RCT-20A
11 EX-801A
4:2:2 component module
4Fsc digital composite (NTSC) module
4:2:2/ digital module
HD-SDI Module
NTSC 3-Iine COM decoder module
PAL COM decoder module
Dual component module
(for YPbPr/RGB input expansion)
Serial remote controller
YPbPr/RGB input module for I input expansion
Infrared remote controller
ASP-80 auto set-up probe
Ill ASP-80 Auto set cup probe
Ill RS-1550CS 15 type rack-mounted adapter
