Ikegami HTM-1505R - Dual Component Input Module

HTM-1505R/HTM-1505CS

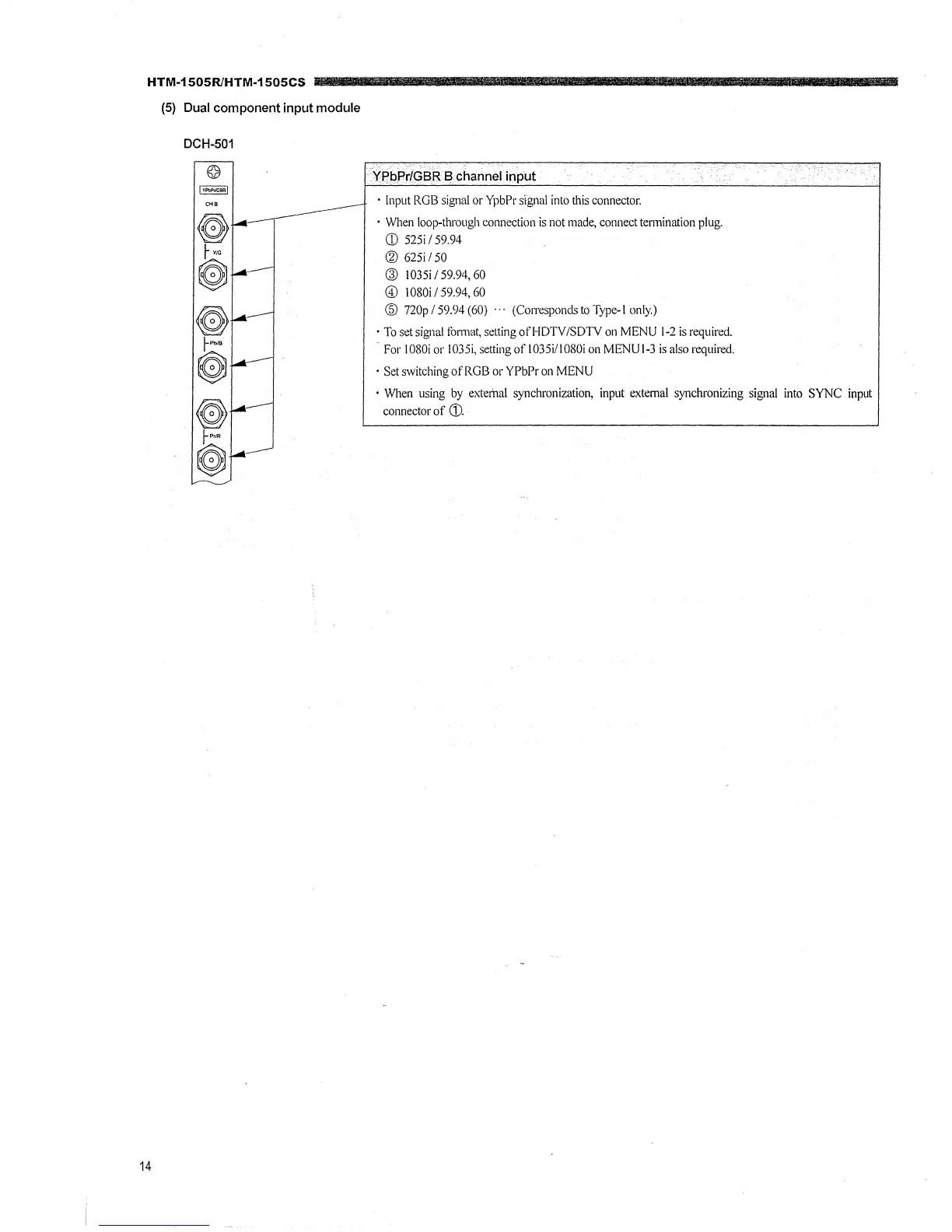

(5) Dual component input module
DCH-501
CHB
~
r V/G
~
~
rPhlS
~
~
rP,IR
~
14
YPbPr/GBRB channel input
· input RGB signal or YpbPr signal into this connector.
· When loop-through connection is not made, connect termination plug.
CD s2si 159.94
® 625i/50
@ 1035i/ 59.94, 60
@ IOS0i/ 59.94, 60
@ 720p / 59.94 (60) .. · (Corresponds to Type-I only.)
• To set signal format, setting ofl-IDTV/SDTV on MENU 1-2 is required.
- For IOS0i or 1035i, setting of I 035i/ I 080i on MENU 1-3 is also required.
• Set switching ofRGB or YPbPr on MENU
· When using by external synchronization, input external synchronizing signal into SYNC input
connector of G).
