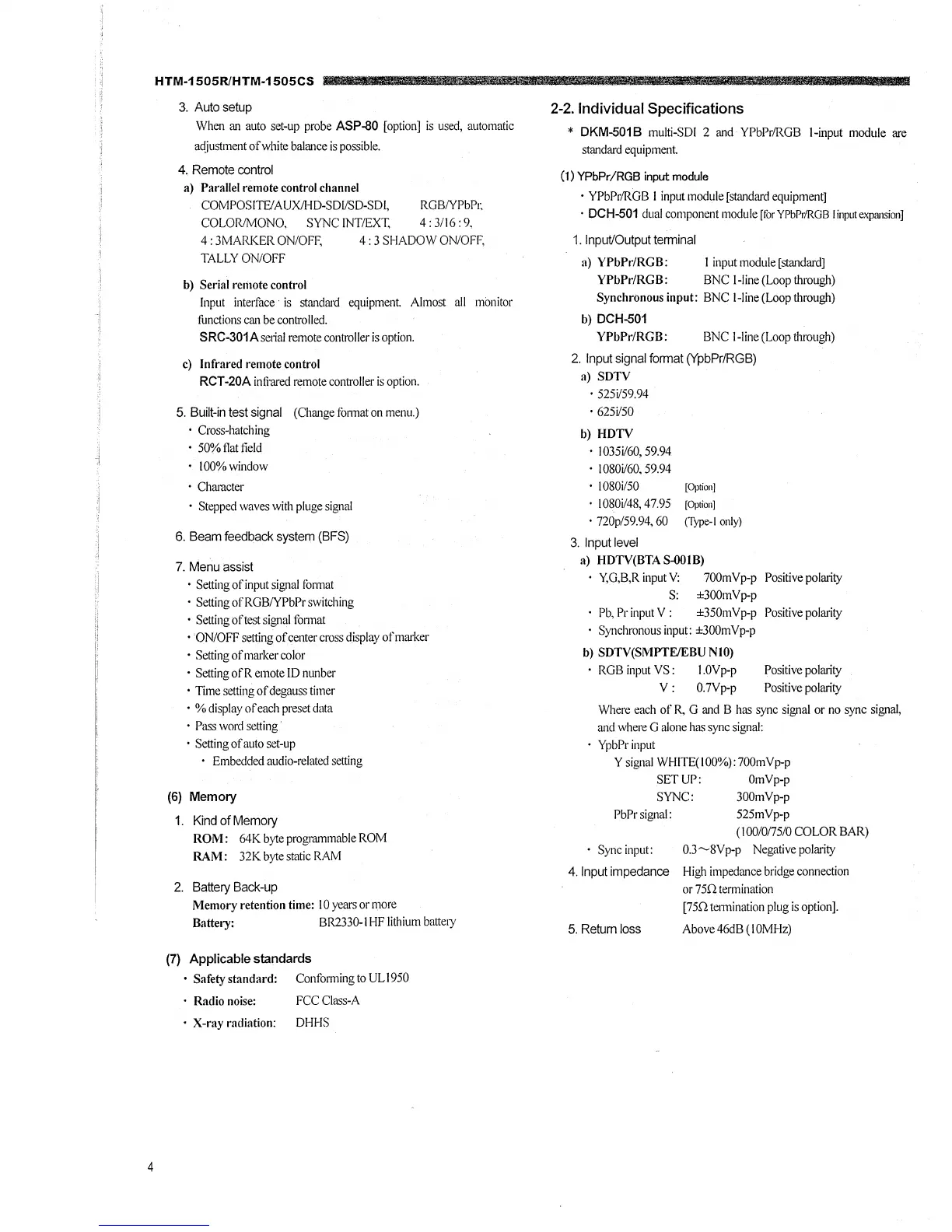

HTM-1505R/HTM-1505CS
3. Auto setup
When an auto set-up probe ASP-80 [option] is used, automatic
ac(justment of white balance is possible.
4. Remote control
a) Parallel remote control channel
COMPOSITE'l AUX/HD-SDI/SD-SDI, RGBNPbP1:
COLOR/MONO, SYNC INT/EXT, 4: 3/16: 9,
4: 3MARKER ON/OFF, 4: 3 SHADOW ON/OFF,
TALLY ON/OFF
b) Serial reritote control
Input interface · is standard equipment Almost all monitor
functions can be controlled.
SRC-301 A serial remote controller is option.
c) Infrared remote control
RCT-20A infrared remote controller is option.
5. Built-in test signal (Change format on menu.)
• Cross-hatching
• 50% flat field
• 100% window
• Character
• Stepped waves with pluge signal
6. Beam feedback system (BFS)
7. Menu assist
• Setting of input signal fonnat
• Settfng ofRGBNPbPr switching
• Setting oftest signal fonnat
• "ON/OFF setting of center cross display of marker
• Setting of marker color
• Setting ofR emote ID nunber
• Time setting of degauss timer
• %displayofeachpresetdata
• Pass word setting·
• Setting of auto set-up
• Embedded audio-related setting
(6) Memory
1. Kind of Memory
ROM: 64K byte programmable ROM
RAM: 32K byte static RAM
2. Battery Back-up
Memory retention time: IO years or more
Battery: BR2330-l HF lithium battery
(7) Applicable standards
• Safety standard: Conforming to UL 1950
• Radio noise: FCC Class-A
• X-ray radiation: DHHS
2-2. Individual Specifications
* DKM-501 B multi-SDI 2 and YPbPr/RGB I-input module are
standard equipment
(1) YPbPr/RGB input module
• YPbPr/RGB I input module [standard equipment]
· DCH-501 dual component module [tor YPbPiiRGB I inpL~ expansion]
1. Input/Output terminal
a) YPbPr/RGB: I input module [standard]
YPbPr/RGB: BNC 1-line(Loopthrough)
Synchronous input: BNC I-line (Loop through)
b) DCH-501
YPbPr/RGB: BNC 1-line(Loopthrough)
2. Input signal format (YpbPr/RGB)
a) SDTV
• 525i/59.94
• 625i/50
b) HDTV
• 1035i/60, 59.94
• 1080i/60. 59.94
• 1080i/50
• 1080i/48, 47.95
• 720p/59.94, 60
3. Input level
[Option]
[Option]
(Type-I only)
a) HDTV(BTA S-00IB)
• Y,G,B,R inputV: 700mVp-p
S: ±300mVp-p
• Pb, Pr input V : ±350mVp-p
• Synchronous input: ±300mVp-p
b) SDTV(SMPTE/EBU NIO)
• RGB input VS: I.0Vp-p
V: 0.7Vp-p
Positive polarity
Positive polarity
Positive polarity
Positive polarity
Where each of R, G and B has sync signal or no sync signal,
and where G alone has sync signal:
• YpbPr input
Y signal WHITE(100%):700mVp-p
SET UP: 0mVp-p
SYNC: 300mVp-p
Pb Pr signal: 525m Vp-p
(I OO/0n5/0 COLOR BAR)
Sync input: 0.3~8Vp-p Negative polarity
4. Input impedance High impedance bridge connection
or 750. tennination
[750. termination plug is option].
5. Return loss
Above 46dB ( I 0MHz)
