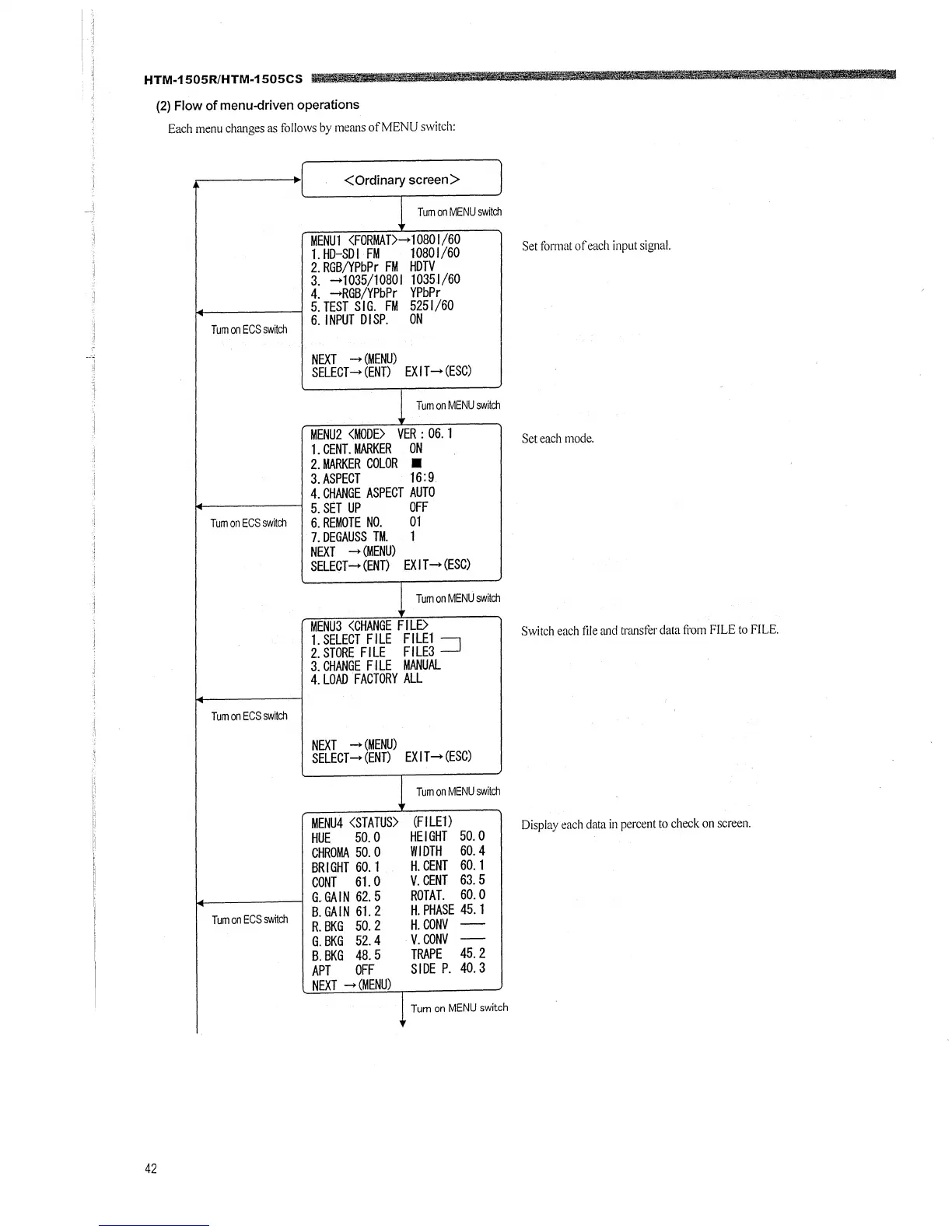

(2) Flow of menu-driven operations
Each menu changes as follows by means of MENU switch:
<Ordinary screen>
l
1 Tum on MENU switch
MENU1 <FORMAT>--+10801/60
1. HD-SDI FM 10801/60 Set format of each input signal.
2.RGB/YPbPr FM HDTV
3. --+1035/10801 10351/60
4. --+RGB/YPbPr YPbPr
______ _, 5. TEST SIG. FM 5251/60
6. INPUT DISP. ON
Tum on ECS swttch
NEXT --+ (MENU)
SELECT--+(ENT) EXIT-(ESC)
1 Tum on MENU switch
MENU2 <MODE> VER : 06. 1
1.CENT.MARKER ON
2. MARKER COLOR ■
3.ASPECT 16:9
4.CHANGE ASPECT AUTO
--------l 5. SET UP OFF
Tum on ECS switch
Tum on ECS swttch
6.REMOTE NO. 01
7.DEGAUSS TM. 1
NEXT --+ (MENU)
SELECT--+(ENT) EXIT--+(ESC)
1 Tum on MENU switch
MENU3 <CHANGE FILE>
1.SELECT FILE FILE1--,
2.STORE FILE FILE3 __J
3.CHANGE FILE MANUAL
4.LOAD FACTORY ALL
NEXT __. (MENU)
SELECT__. (ENT) EXIT__. (ESC)
l Tum on MENU switch
Set each mode.
Switch each tile and transfer data from FILE to FILE.
MENU4 <STATUS> (FI LE1) Display each data in percent to check on screen.
HUE 50.0 HEIGHT 50.0
CHROMA 50.0 WIDTH 60.4
BRIGHT 60. 1 H.CENT 60. 1
CONT 61.0 V.CENT 63.5
G.GAIN 62.5 ROTAT. 60.0
Tum on ECS swttch
B.GAIN 61.2 H.PHASE 45. 1
R.BKG 50.2 H.CONV -
G.BKG 52.4 V.CONV -
B.BKG 48.5 TRAPE 45.2
APT OFF SIDE P. 40.3
NEXT --+ (MENU)
l Tum on MENU switch
