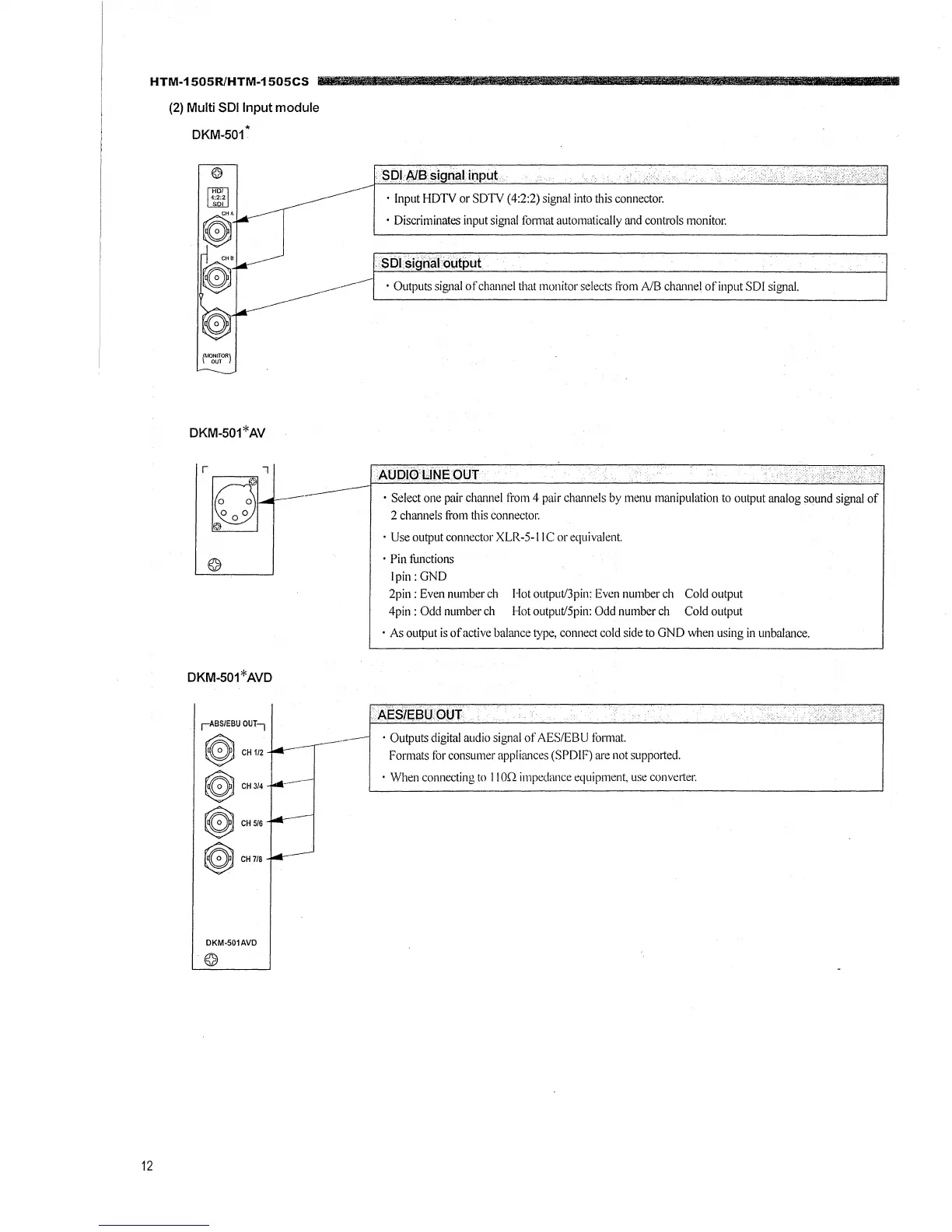

HTM-1505R/HTM-1505CS
(2) Multi SDI Input module
DKM-501*
DKM-501*AV
DKM-501*AVD
1
ABSIEBU 0UT7
~
CH112
~
CH3/4
~
CH516
~
CH7/8
DKM•501AVO
12
. SDIAJB.signal ioput ..
· Input HDTV or SDTV (4:2:2) signal into this connector.
· Discriminates input signal format automatically and controls monitor.
SDI.signal c:>utput
-------- · Outputs signal of channel that monitor selects from A/B channel of input SDI signal.
AUb10·tlNEOUT
· Select one pair channel from 4 pair channels by menu manipulation to output analog sound signal of
2 channels from this connector.
· Use output connector XLR-5c 11 C or equivalent.
· Pin functions
lpin:GND
2pin : Even number ch
4pin : Odd number ch
Hot output/3pin: Even number ch Cold output
Hot output/Spin: Odd number ch Cold output
· As output is ofactive balance type, connect cold side to GND when using in unbalance.
· Outputs digital audio signal ofAES/EBU format.
Formats for consumer appliances (SPDIF) are not supported.
· When connecting to 11 OD impedance equipment, use converter.
To Next Page
