Ikegami HTM-1505R - Connection of Parallel Remote Connector; (I) Pin Function; Connectors Used

......
U/11 . LUI
m
- iii&
. I

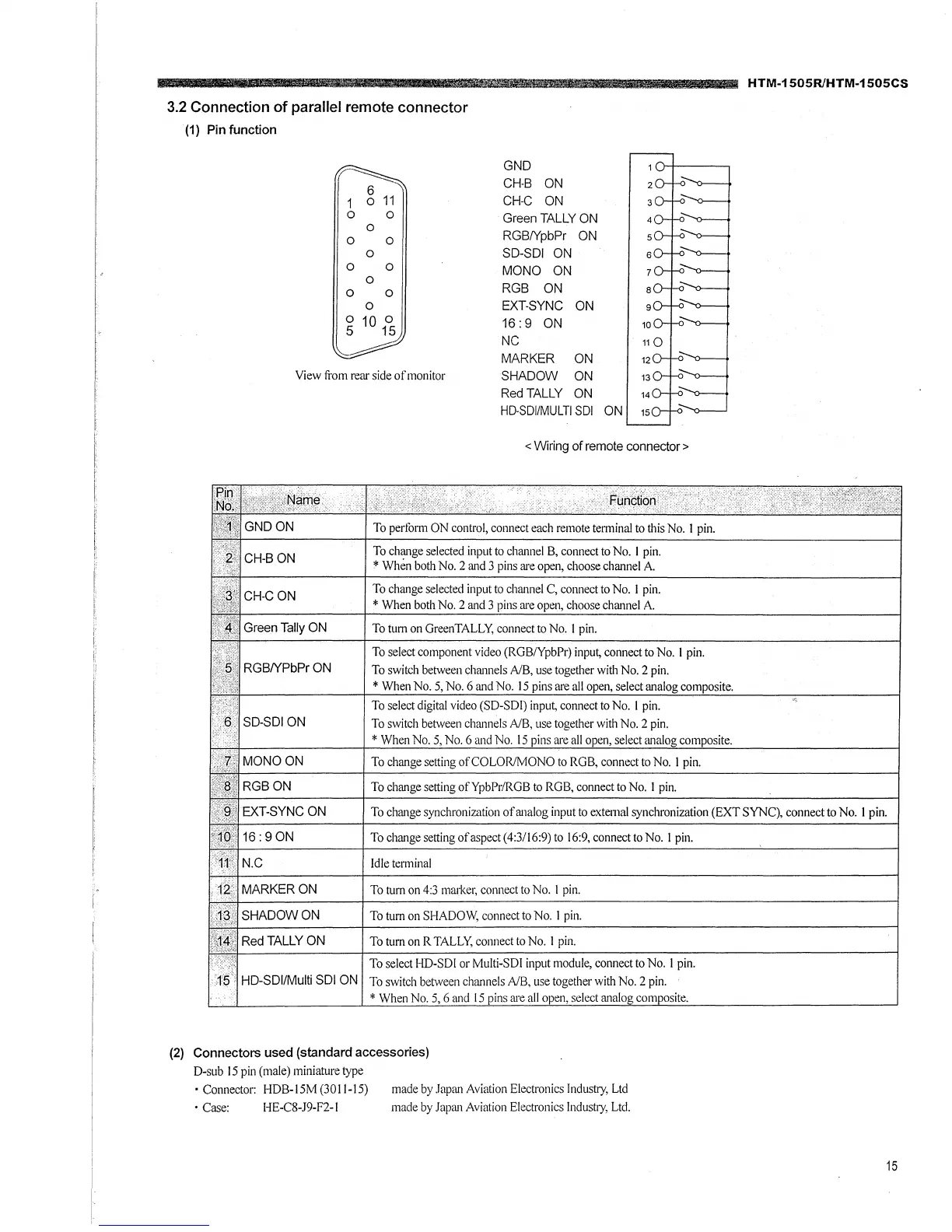

3.2 Connection of parallel remote connector
(1) Pin function
~
1
g 11
0 0
0
0 0
0
0 0
0
0 0
0
~ 10 1°s
~
GND
CH-B ON
CH-C ON
Green TALLY ON
RGB/YpbPr ON
SD-SDI ON
MONO ON
RGB ON
EXT-SYNC ON
16: 9 ON
NC
View from rear side of monitor
MARKER ON
SHADOW ON
RedTALLY ON
HD-SDI/MULTI SDI ON
Green Tally ON
< Wiring of remote connector>
To change selected input to channel B, connect to No. I pin.
* When both No. 2 and 3 pins are open, choose channel A
To change selected input to channel C, connect to No. I pin.
* When both No. 2 and 3 pins are open, choose channel A
To tum on GreenTALLY, connect to No. I pin.
To select component video (RGB/YpbPr) input, connect to No. I pin.
To switch between channels NB, use together with No. 2 pin.
ii HTM-1505R/HTM-1505CS
* When No. 5, No. 6 and No. 15 pins are all open, select analog composite.
To select digital video (SD-SDI) input, connect to No. I pin.
To switch between chmmels NB, use together with No. 2 pin.
* When No. 5, No. 6 and No. 15 pins are all open, select analog composite.
To change setting of COLOR/MONO to RGB, connect to No. I pin.
To change setting ofYpbPr/RGB to RGB, connect to No. I pin.
To change synchronization of mialog input to external synchronization (EXT SYNC), connect to No. I pin.
To change setting of aspect (4:3/16:9) to 16:9, connect to No. I pin.
Idle terminal
To turn on 4:3 market; connect to No. I pin.
To tum on SHADOW, connect to No. I pin.
To turn on R TALLY, connect to No. I pin.
To select HD-SDI or Multi-SDI input module, connect to No. I pin.
To switch between channels NB, use together with No. 2 pin.
* When No. 5, 6 and 15 pins m·e all open, select analog composite.
(2) Connectors used (standard accessories)
O-sub 15 pin (male) miniature type
• Connector: HDB-15M(3011-15)
• Case: HE-C8-J9-F2-I
made by Japm1 Aviation Electronics Industry, Ltd
made by Japm1 Aviation Electronics lndust1y, Ltd.
15
