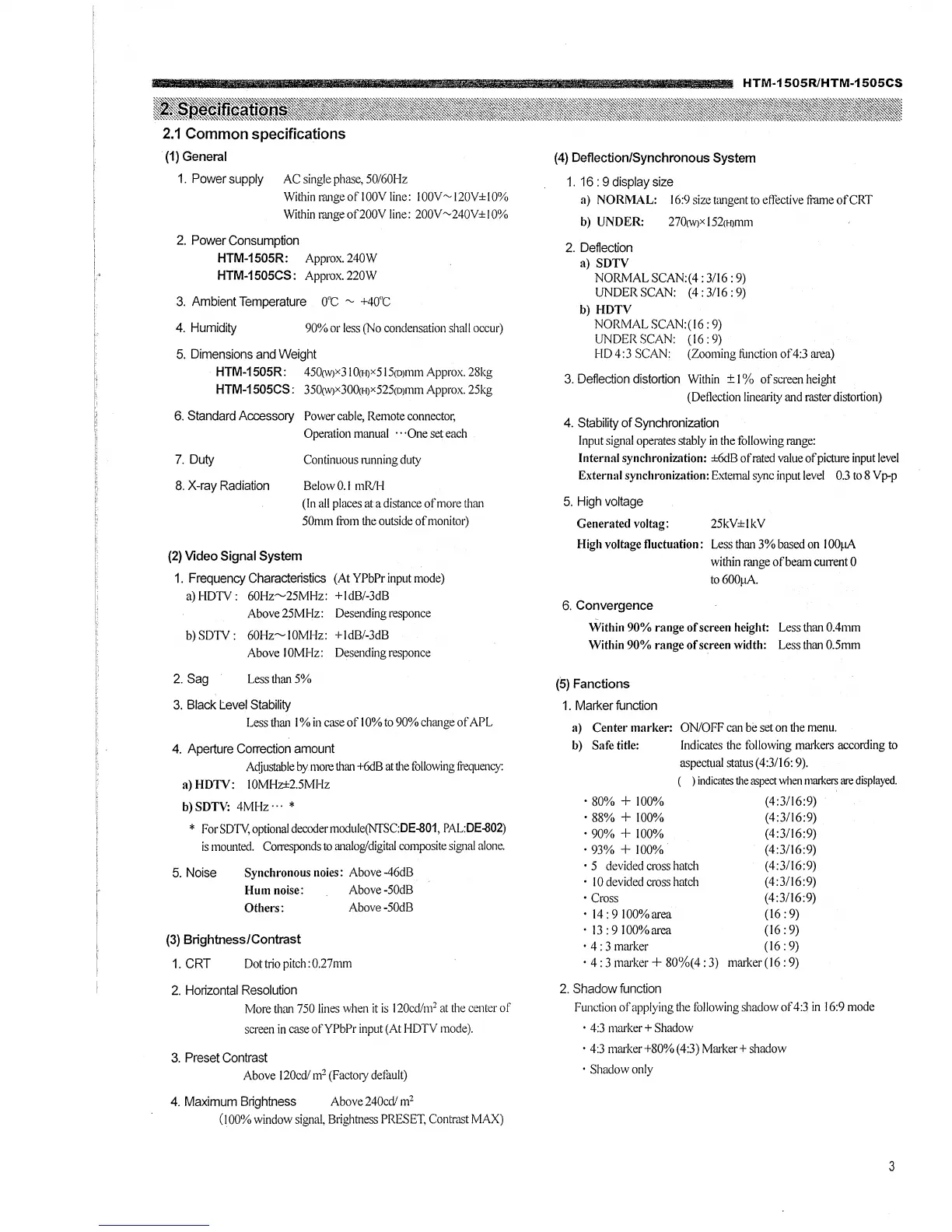

2.1 Common specifications
(1) General
1. Power supply AC single phase, 50/601--Iz
Within rangeof!00V line: I00V~I20V±l0%
Within range of200V line: 200V~240V±IO%
2. Power Consumption
HTM-1505R: Approx. 240W
HTM-1505CS: Approx. 220W
3. Ambient Temperature 0°C ~ +40"C
4. Humidity 90% or less (No condensation shall occur)
5. Dimensions and Weight
HTM-1 SOSR: 450cwJx3 I 0a-rJx5 I 5(DJl11l11 Approx. 28kg
HTM-1 SOSCS: 350(W)x300(1-Qx525coimrn Approx. 25kg
6. Standard Accessory Power cable, Remote connector,
Operation manual · · · One set each
7. Duty
8. X-ray Radiation
Continuous 111nning duty
Below 0.1 mR/1-1
(In all places at a distance of more than
50mm from the outside of monitor)
(2) Video Signal System
1. Frequency Characteristics (At YPbPr input mode)
a) HDTV: 60Hz~25Ml-lz: +ldB/-3dB
Above 25MHz: Desending responce
b) SDTV: 60Hz~ IOMI-lz: +1dB/-3dB
Above I 0MHz: Desending responce
2.Sag Less than 5%
3. Black tevel Stability
Less than I% in case of 10% to 90% change of APL
4. Aperture Correction amount
Acjjustable by more than +6c!B at tl1e following frequency:
a) HDTV: IOMl-lz±2.5Ml-lz
b)SDTV: 4Ml-lz··· *
* For SDTV, optional decoder module(NTSC:DE-801, PAL:DE-802)
is mounted. Co1Tesponds to analog/digital composite signal alone.
5. Noise
Synchronous noies: Above -46dB
Hum noise: Above -50dB
Others: Above -50dB
(3) Brightness/Contrast
1. CRT
Dot trio pitch: 0.27111111
2. Horizontal Resolution
More than 750 lines when it is 120cd/m
2
at the center of
screen in case ofYPbPr input (At HDTV mode).
3. Preset Contrast
Above 120cd/ m
2
(Factory default)
4. Maximum Brightness Above240cd/ m
2
(100% window signal, Brightness PRESET, Contrast MAX)
HTM-1505R/HTM-1505CS
(4) Deflection/Synchronous System
1. 16 : 9 display size
a) NORMAL: 16:9 size t,mgent to effective frame of CRT
b) UNDER: 270cwixI52crQrnm
2. Deflection
a) SDTV
NORMAL SCAN:(4: 3/16: 9)
UNDER SCAN: (4: 3/16: 9)
b) HDTV
NORMAL SCAN:(16: 9)
UNDER.SCAN: (16:9)
HD 4:3 SCAN: (Zooming ti.mction of4:3 area)
3. Deflection distortion Within ± 1 % of screen height
(Deflection linearity and raster distortion)
4. Stability of Synchronization
Input signal operates stably in the following range:
Internal synchronization: ±6dB of rated value of picture input level
External synchronization: External sync input level 0.3 to 8 Vp-p
5. High voltage
Generated voltag: 25kV±lkV
High voltage fluctuation: Less than 3% based on I 00pA
within range of beam cu1Tent 0
to 600pA.
6. Convergence
Within 90% range of screen height: Less than 0.4mm
Within 90% range of screen width: Less than 0.5mm
(5) Fanctions
1. Marker function
a) Center marker: ON/OFF can be set on the menu.
b) Safe title: Indicates the following markers according to
aspectual status ( 4:3/16: 9).
( ) indicates tl1e aspect when markers are displayed.
• 80% + 100%
· 88% + 100%
· 90% + 100%
· 93% + 100%
• 5 devided cross hatch
· IO devided cross hatch
• Cross
• 14: 9 IO0¾area
· 13: 9 I00¾area
· 4: 3 marker
· 4: 3 marker+ 80%(4: 3)
2. Shadow function
(4:3/16:9)
(4:3/16:9)
(4:3/16:9)
(4:3/16:9)
(4:3/16:9)
(4:3/16:9)
(4:3/16:9)
(16: 9)
(16: 9)
(16: 9)
marker(l6: 9)
Function or applying the following shadow of 4:3 in 16:9 mode
· 4:3 marker+ Shadow
· 4:3 marker +80% ( 4:3) Marker+ shadow
· Shadow only
