Setup Manual Page 21
B.3 Device Location
Please allow a minimum of 150 mm (6 inch) from any side walls and 300 mm (12 inch)
from a back wall. Leave one meter (3 feet) minimum distance from any door or entrance
way. Use the illustration below as a guide.

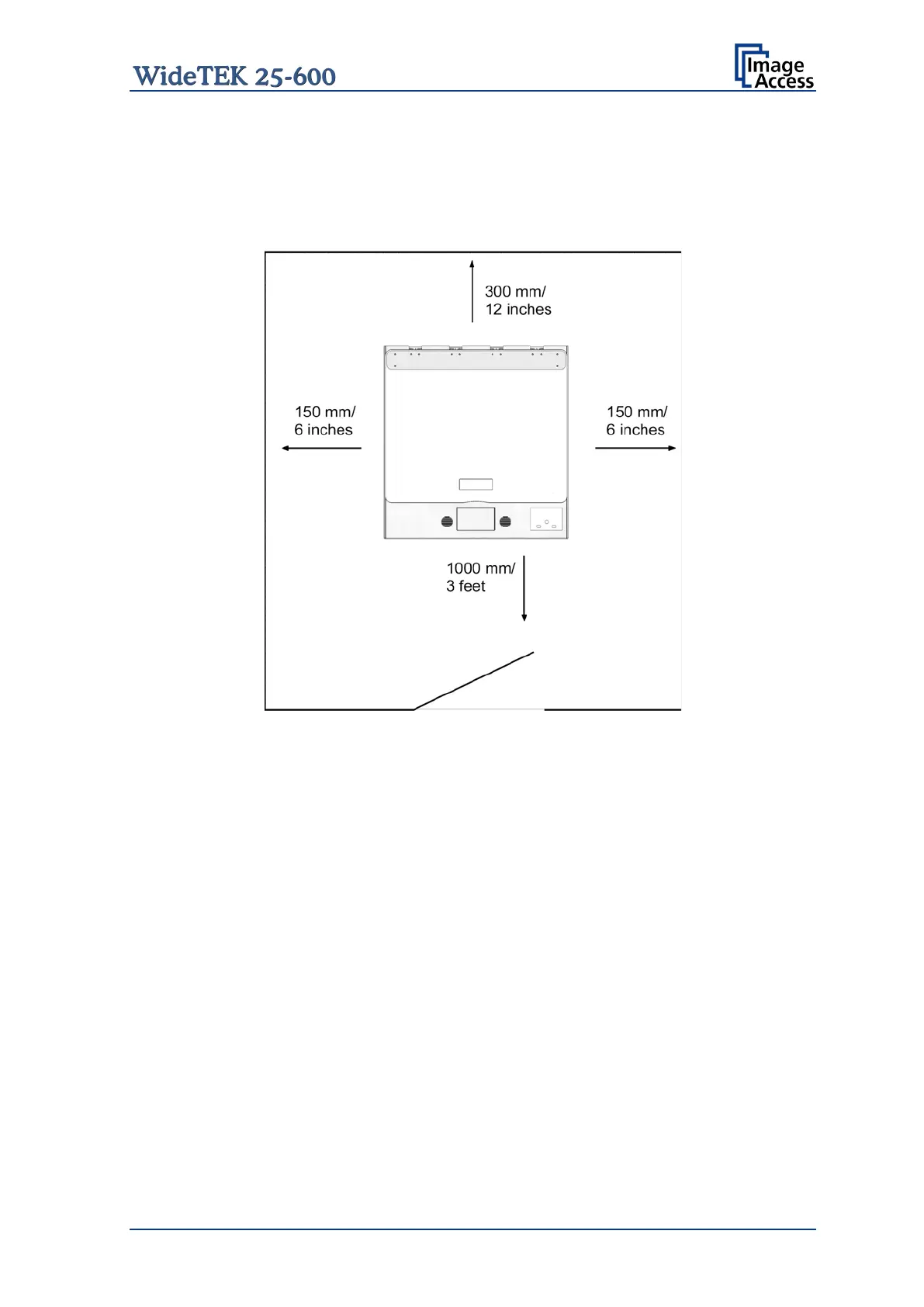

Picture 5: Minimum distances
Do not operate the scanner in an area that has poor air circulation and/or that is non-
ventilated.
Place the WideTEK 25-600 on a flat and solid base. The load bearing capacity of the base
must correspond to the device weight.
Choose a location that complies with the limits of temperature and humidity. Refer to the
technical specification.
Important: Before using the WideTEK 25-600 scanner in the new environment allow at
least one hour for temperature adaptation.
Temperature adaptation means:
A fast change from cold to warm environmental conditions can build up
condensation inside the housing. This will result in unfavorable scanned
images and could cause permanent damages to the unit.
