Page 50 Setup Manual
D.3.2.6 Wireless LAN (Basic Settings)
Use the function Wireless LAN (Basic Settings) to define the basic settings for the
WLAN module.
Note: This menu is displayed only if a WLAN module is installed and if the settings for
IPv4 (Network Interface 1) and Wireless LAN (LAN Interface) fit together.

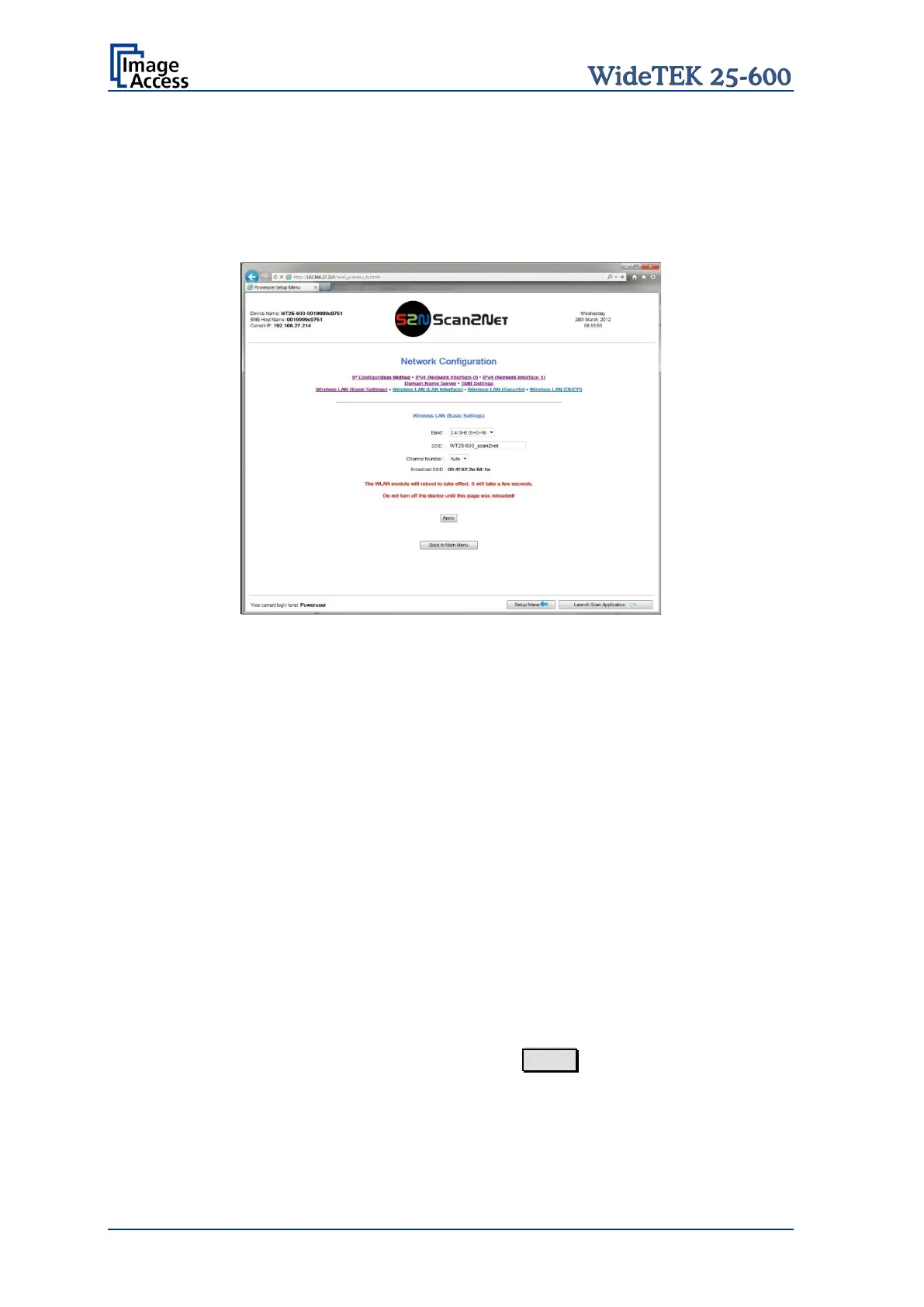

Picture 28: Wireless LAN Basic Settings
Note: The default settings are recommended.
Click on the selection arrow to open the list.
Select from the list the desired band for the WLAN communication.
Enter a name to identify the WLAN of the scanner.
Auto: Recommended setting. Uses the channel with the best data
transfer performance.
To use a specific channel, click the selection arrow and select the
desired channel from the list.
The broadcast SSID is set automatically.
After modifying the WLAN parameters, click on the Apply button to transfer the new
settings.
Follow the note regarding the reboot sequence.
