Connect Alternative Dp Sensor
Any Handheld and Dp Sensor can become a wireless pair. This may be particularly useful in companies with
several TA-SCOPE instruments. Establish communication between your Handheld unit and the Dp Sensor you
currently wish to work with.
1 Connect the units with the cable and check that wireless option in Settings menu is set to On.
2 Wait until the wireless icon
is displayed on the Information bar.
3 Disconnect the cable and wireless communication is established.
Connect / Disconnect Measuring Equipment
The measuring equipment is colour coded to ensure valid data is collected, red indicates high pressure and blue
indicates low pressure.

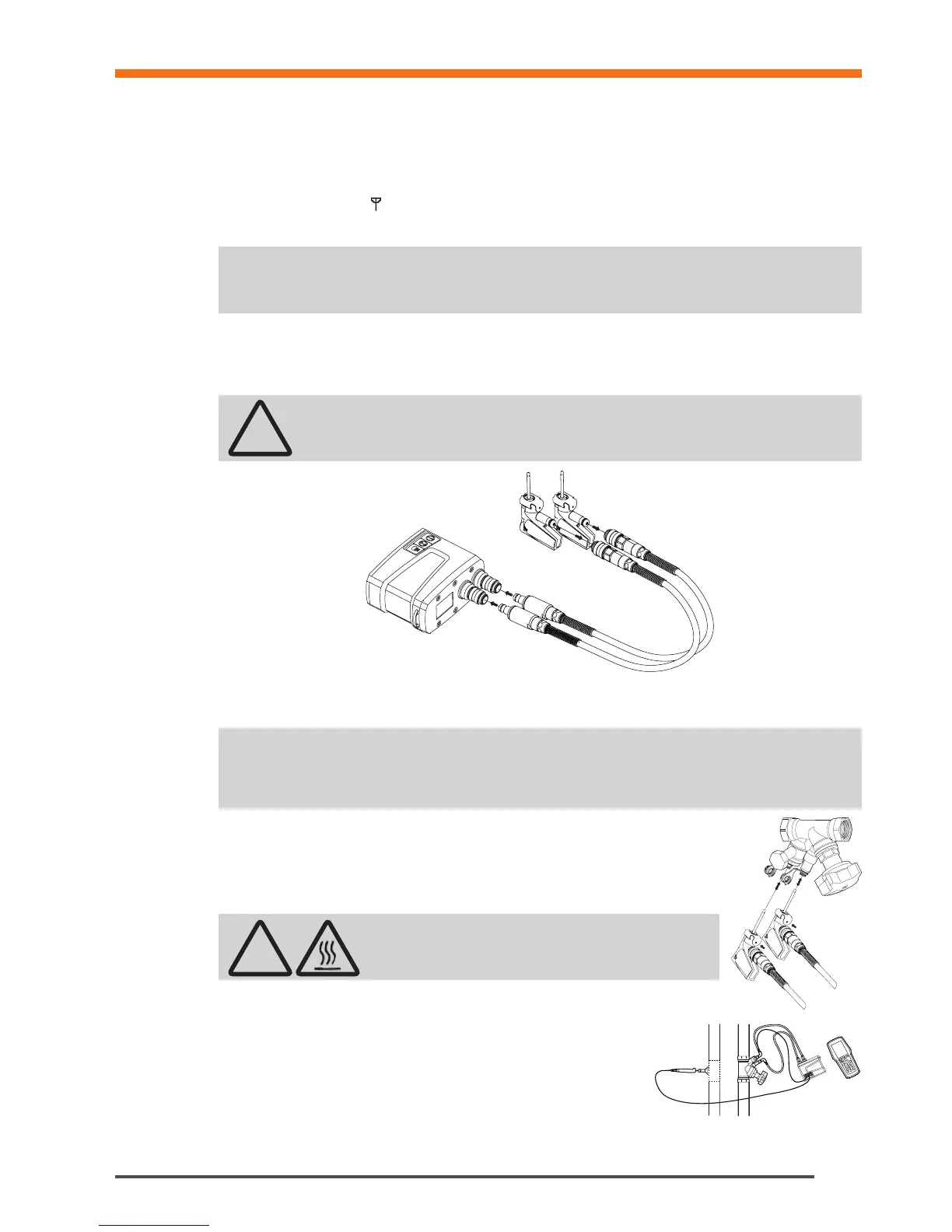

First – connect the Safety Pressure Probes (SPP) to the measuring hoses which shall be connected to the Dp
Sensor, pay attention to the colour indications.
Second – connect the Safety Pressure Probes to the measuring points on the valve,
which are also colour coded.
Make sure the safety catches lock behind the thread on the measuring point.
When disconnecting, press the safety catches at the Safety Pressure Probe and pull to
release.
Each hydronic function in TA-SCOPE requires a specific set-up of
measuring hoses and temperature sensors.
On screen diagrams will be displayed on the Handheld for guidance.
The Dp Sensor can either be hanged by the hoses or by the accessory
(15) chain in the pipes.
Tips! Wireless range Handheld – Dp Sensor. Range in open space – approximately 70 meters.
Range inside a building – approx. 20-30 meters.
!
Measuring Preparations
Note! When using the combined Safety Pressure and Temperature Probe (SPTP), do not forget
to connect the data cable to one of the two temperature probe connections on the Dp Sensor.
Warning! Beware of hot fluid in the valve. Always follow the sequence described here when
connecting and disconnecting the measuring equipment.
!
Warning! The surface on the Dp Sensor can be hot
while measuring on hot media. Always use suitable safety
equipment.
!
!
