MAGIS COMBO V2
26
It is necessary to insert a
jumper on connector X25
KEY:
A3 - Integrated P.C.B.
A7 - Congurable relay board
A16-3 - Dehumidier zone 3
B3-3 - Zone 3 ow probe
M10-3 - Zone 3 circulator pump
M31-3 - Zone 3 mixing valve
K1 - Congurable relay
K2 - Congurable relay
K3 - Congurable relay
Relay K1: Dehumidication request
Relay K2: Mix valve closure
Relay K3: Mix valve opening

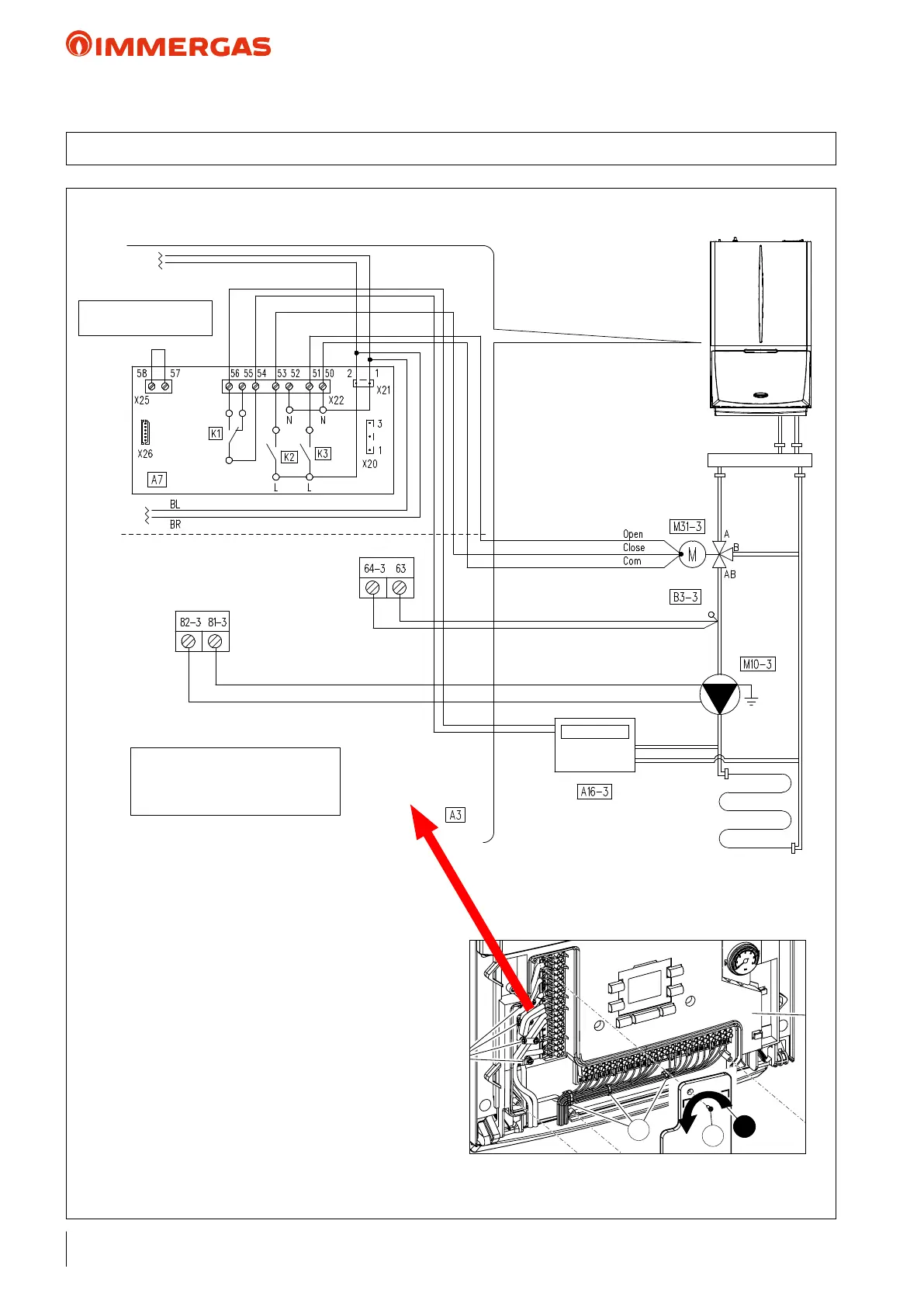

19.1 ELECTRICAL CONNECTIONS THIRD MIXED OR DIRECT ZONE
c
a
1
