MAGIS COMBO V2
27
If Zone 2 and 3 remote panel is also connected, make sure there
is a jumper between clamps 41 and 40-2 and 40-3.
NOTES: Eliminate the X40-1 jumper before connecting the
S20-1 room thermostat. When the Zone 1 remote panel is
connected, hold the X40-1 jumper.
E7-2 - Mixed zone 2 safety thermostat
E7-3 - Mixed zone 3 safety thermostat
R8 - Storage tank resistance
(PLUS version)
S20-1 - Zone 1 room thermostat
S20-2 - Zone 2 room thermostat
S20-3 - Zone 3 room thermostat
S36-1 - Zone 1 humidistat
S36-2 - Zone 2 humidistat
S36-3 - Zone 3 humidistat
X40-1 - Zone 1 room thermostat jumper
1 - Service connector
KEY:
A13 - System manager
A16-1 - Dehumidier zone 1
A16-2 - Dehumidier zone 2
A17-1 - Zone 1 humidity sensor
A17-2 - Zone 2 humidity sensor
A17-3 - Zone 3 humidity sensor
A23 - Outdoor unit
A30 - DOMINUS interface board
A32-1 - Zone 1 remote panel
A32-2 - Zone 2 remote panel
A32-3 - Zone 3 remote panel
B2 - Storage tank probe (PLUS version)
B3-1 - Zone 1 ow probe
B3-2 - Zone 2 ow probe
B3-3 - Zone 3 ow probe
B4 - External probe
B9 - Solar inlet probe (instant version)
B13 - Central heating probe

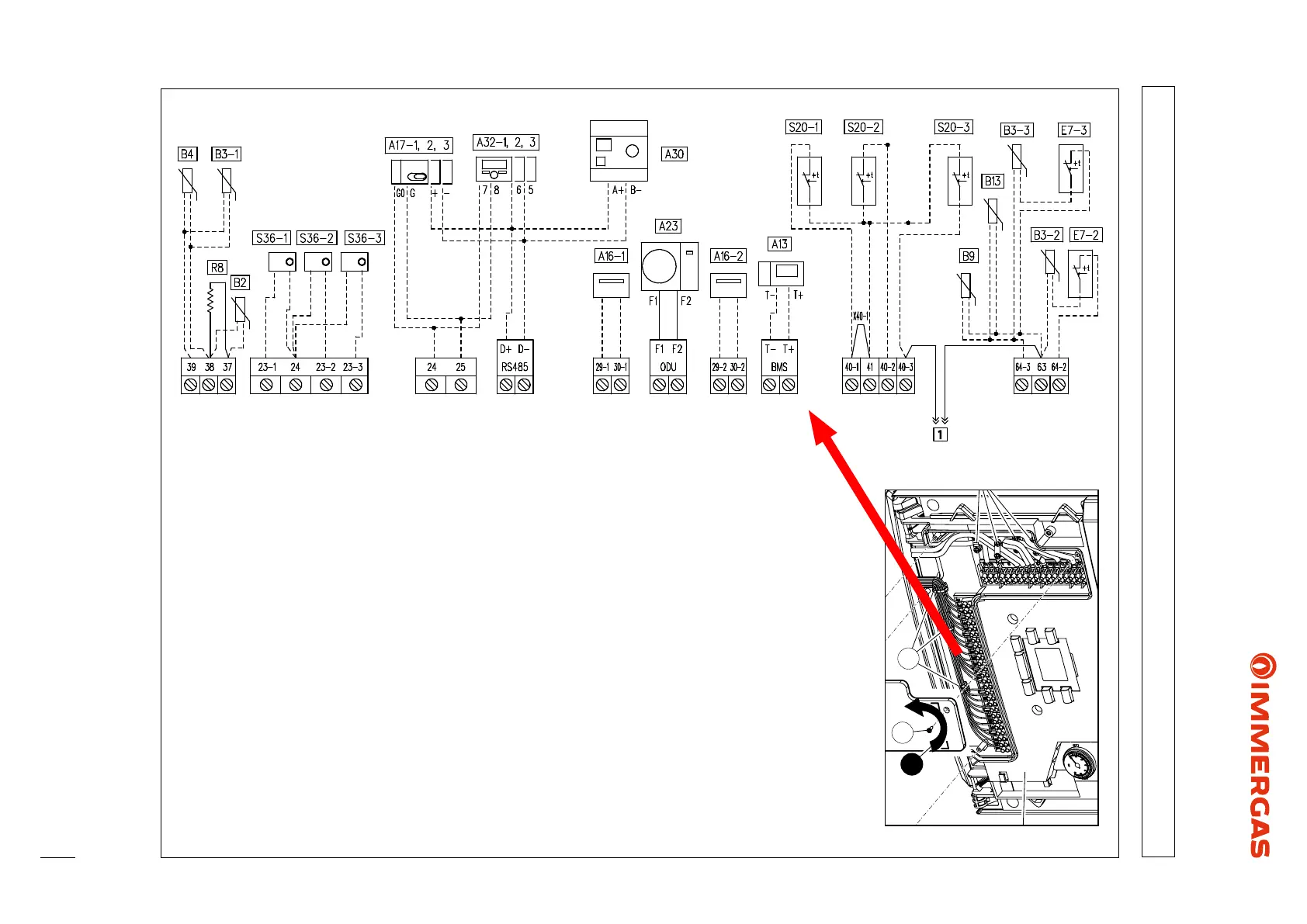

19.2 MAGIS COMBO / COMBO PLUS LOW VOLTAGE ELECTRICAL CONNECTIONS
