Immergas MAGIS COMBO V2 - Page 30

MAGIS COMBO V2
30
G - Green
GY - Grey
OR - Orange
P - Purple
PK - Pink
R - Red
W - White
Y - Yellow
Y/G - Yellow/Green
W/BK - White/Black
Instant version / PLUS version

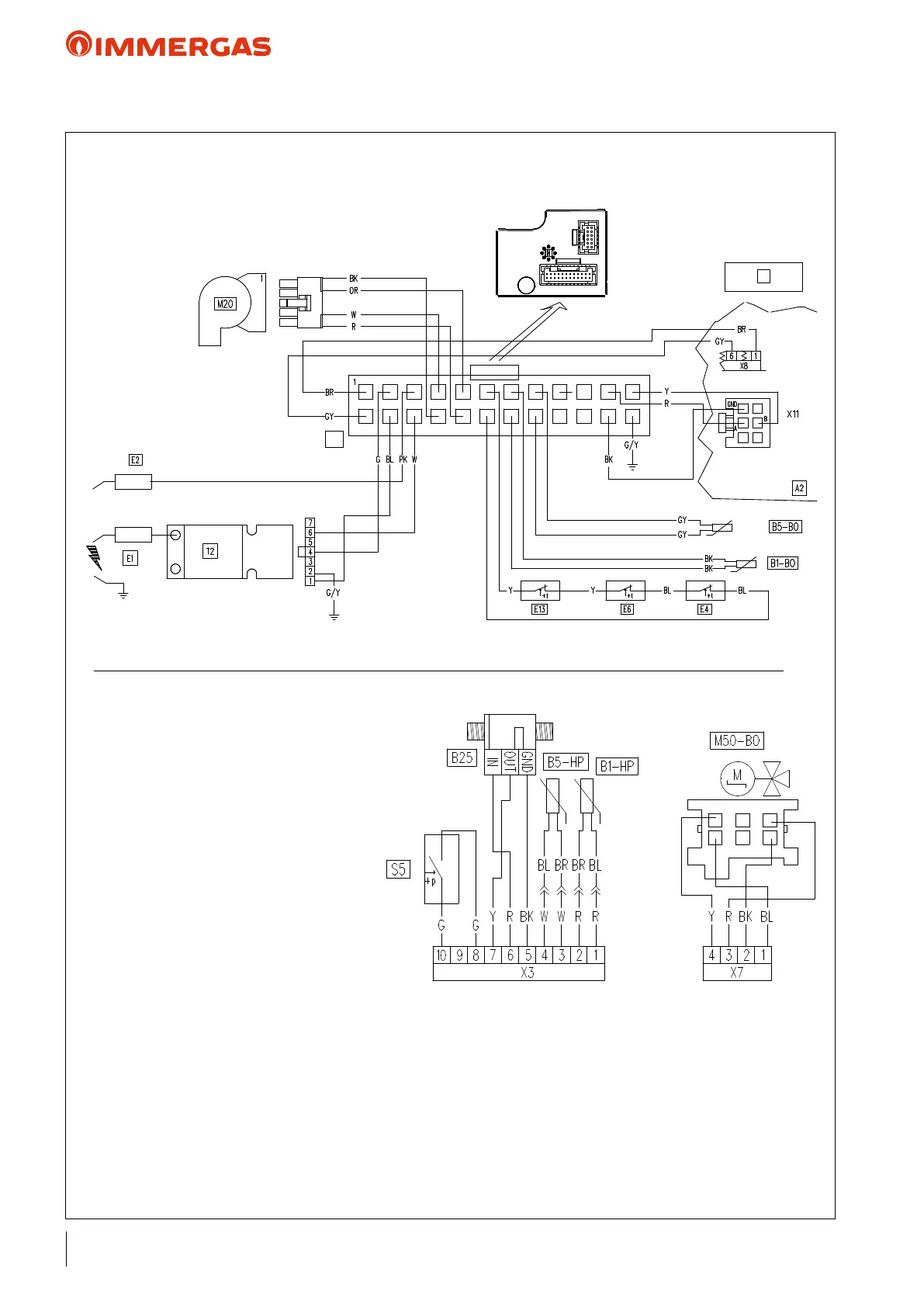

KEY:
A2 - P.C.B.
B1-BO - Heat unit ow probe
B1-BO - Heat unit ow probe
B5-BO - Heat unit return probe
B1-HP - HP unit ow probe
B5-HP - HP unit return probe
B25 - System ow-meter
E1 - Ignition electrode
E2 - Detection electrode
E4 - Safety thermostat
E6 - Flue gas thermofuse
E13 - Heat exchanger safety thermofuse
M20 - Fan
M50-BO - Heat unit 3-way valve
S5 - System pressure switch
T2 - Ignition transformer
Z - Control panel electrical con-
nections compartment terminal
board
Colour code key:
BK - Black
BL - Blue
BR - Brown
A1
Z
