Set your molar mass. In the example for 102:
ð If the equivalence factor is not equal to 1 or the molar mass is not set to factory
settings, the equivalence factor is displayed both on the calibration result and on
the measurement screen.

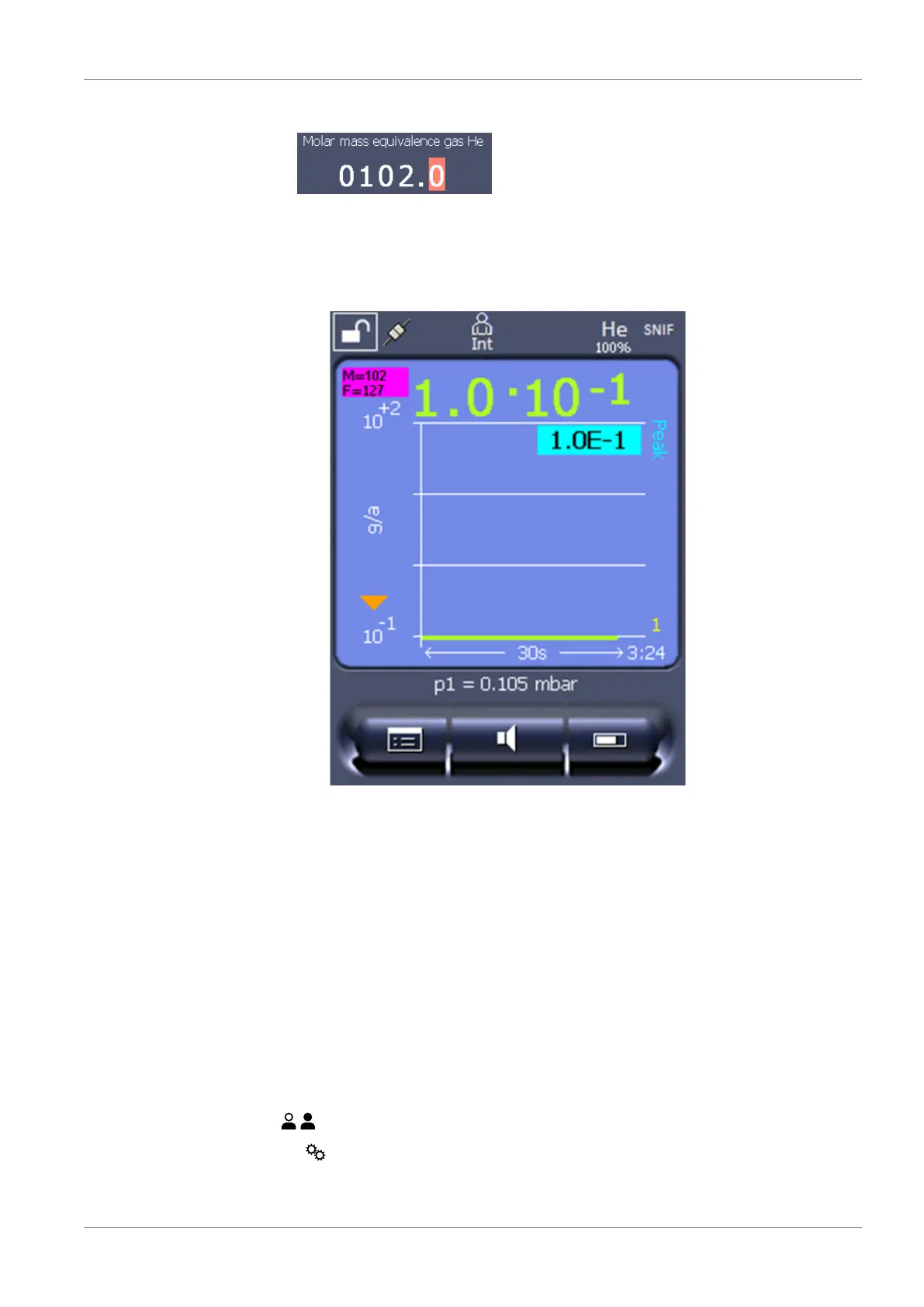

Fig.4: Top left: Display of Molar Mass (102) and Equivalence Factor (127)
6.3.3 Setting setpoints
You can set the leak rate for the setpoint to 1, 2, 3 and 4 separately.
When the setpoints are exceeded:
• If the setpoint 1 or 2 is exceeded, the measurement line in the measurement
window changes color.
• The setpoint relay of the digital output switches, see also "Assigning the digital
outputs of the I/O module [}51]" or the interface description.
Also setpoint 1 defines the trigger point for the different alarms, see also "Setting the
audio alarm [}41]".
ü
Operator
or
Supervisor
rights
1
> Trigger
2
Adjust.
