LP340/340B/350 Service Manual 32
2 Align the AC receptacle with its opening in the top case first.

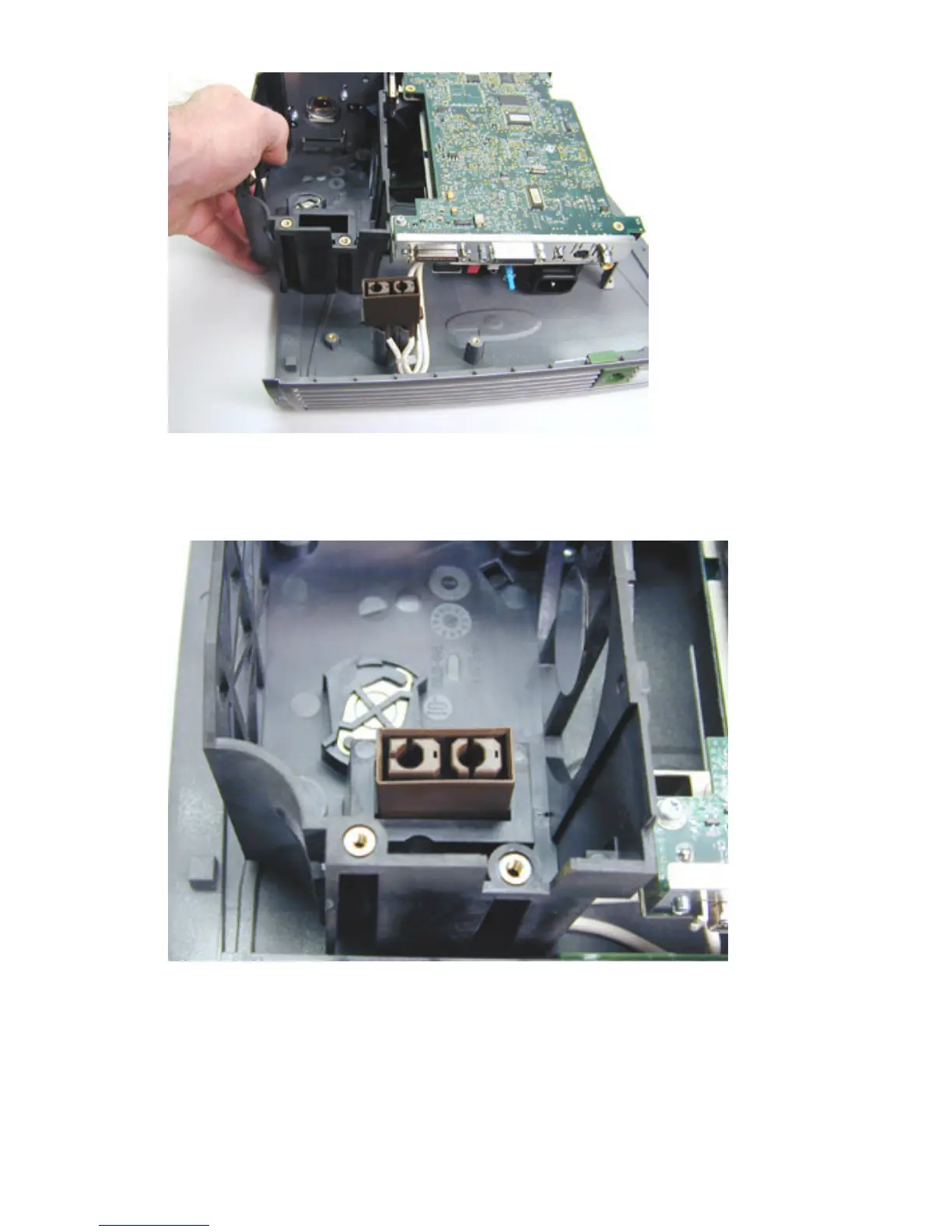

Then lower the chassis into the top case, making sure the lamp connector emerges through its
hole in the lamp housing.
3 Seat the chassis on the posts in the top case. Then torque the six M3x8 Torx screws to 6 in.-lbs.
(.678 N m). If you have trouble aligning the holes on the chassis with the posts in the top case,
see the note below.
4 Install the keypad cable in its ZIF connector. Route the cable through the channel in the chassis.
See the photo in step 2 for proper routing.
