Chapter 3 –Inputs-Outputs
XtrapulsCD1-a

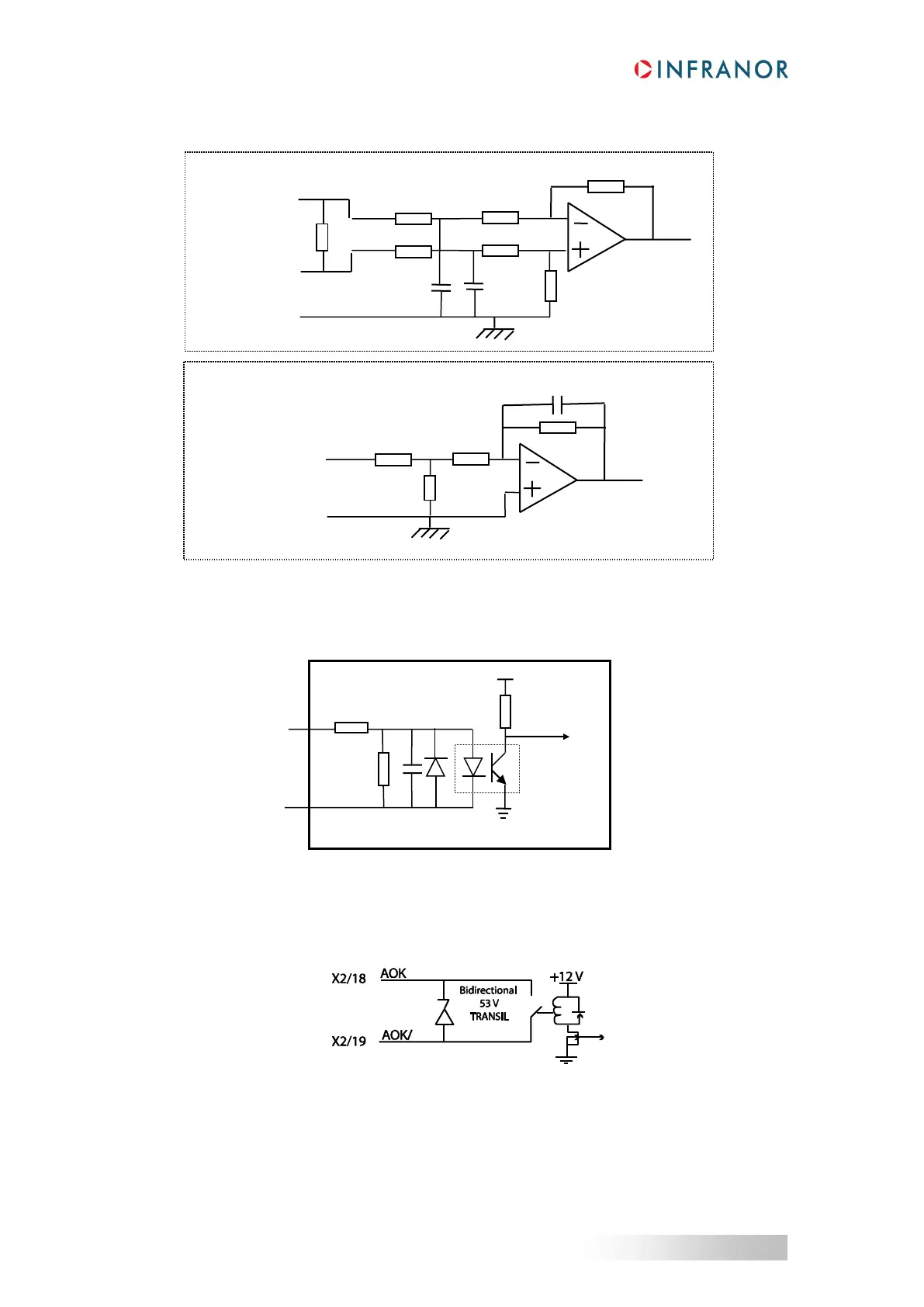

3.1 - SPECIFICATION OF THE ANALOG INPUTS: CV+, CV-, Ilim
3.2 - SPECIFICATION OF THE LOGIC OPTOCOUPLED INPUTS: ENABLE, FCP, FCN, RESET, CVO, CI
The input voltage corresponding to level 1 is between 18 V and 30 V.
3.3 - SPECIFICATION OF THE "AOK" RELAY OUTPUT
Relay contact open if any fault except for the "Undervolt." fault.
Pmax = 10 W with Umax = 50 V and Imax = 100 mA
100K
16K
100K
100K
16K
X2-17 (CV+)
100K
X2-16 (CV-)
1nF
1nF
20K
X2-15 (GND)
X2-3 (ILIM)
10K
X2-25 (GND)
18K
100K
2.2nF
10K
Logic input
100 nF
0 V
5 V
8.2 k
100 kΩ
10 kΩ
