Chapter 4 – Connections
XtrapulsCD1-a
Chapter 4 - Connections
1 - CONNECTION DIAGRAMS

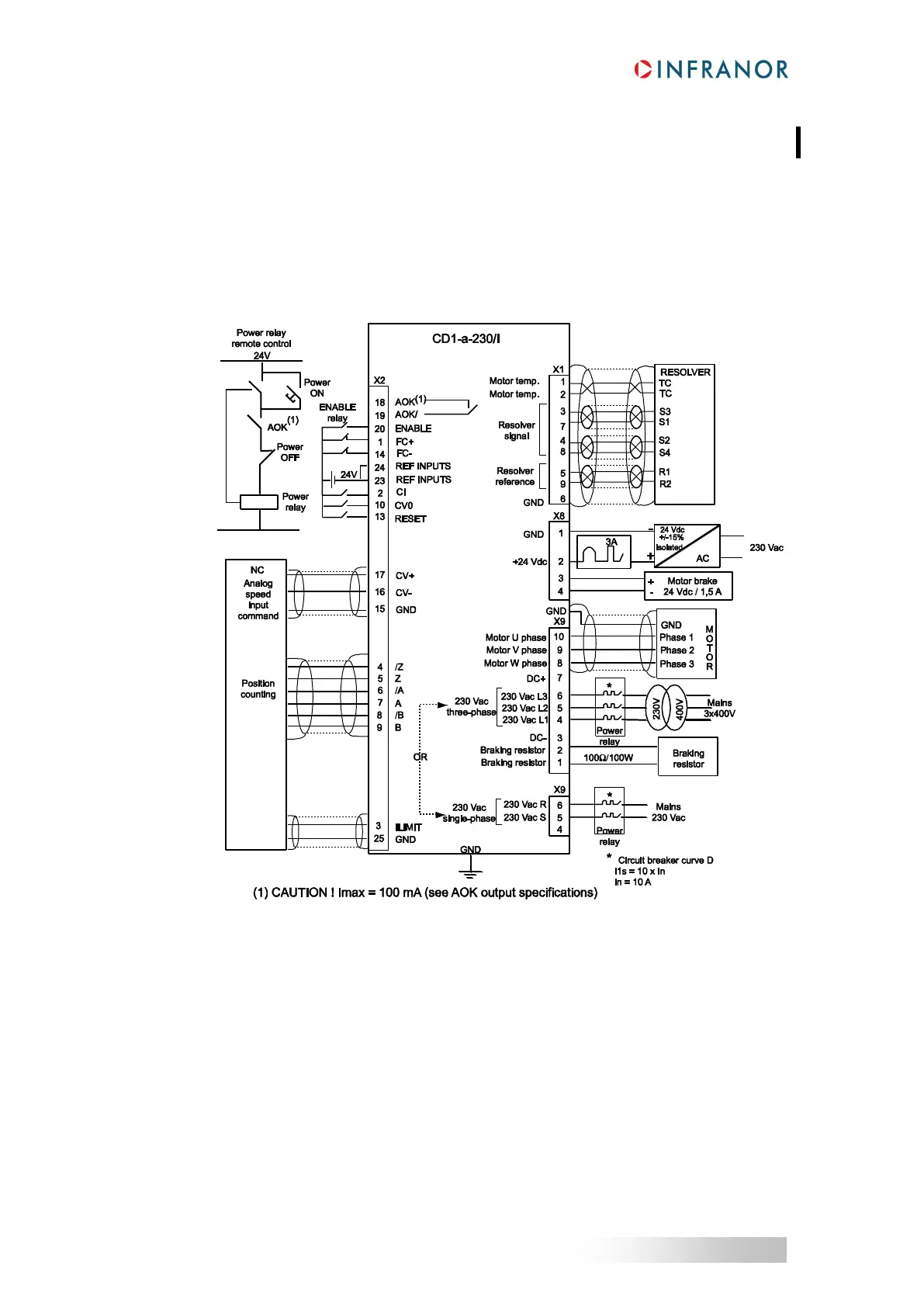

1.1 – XTRAPULS CD1-a-230/I DRIVE
(For the UL certified connection, see chapter 4, section 3.4).
The protection, on source side, of both 24 V and power supplies must be made by the user.
