Infranor XtrapulsCD1-a Series User Manual

27
XtrapulsCD1-a
Chapter 4 - Connections

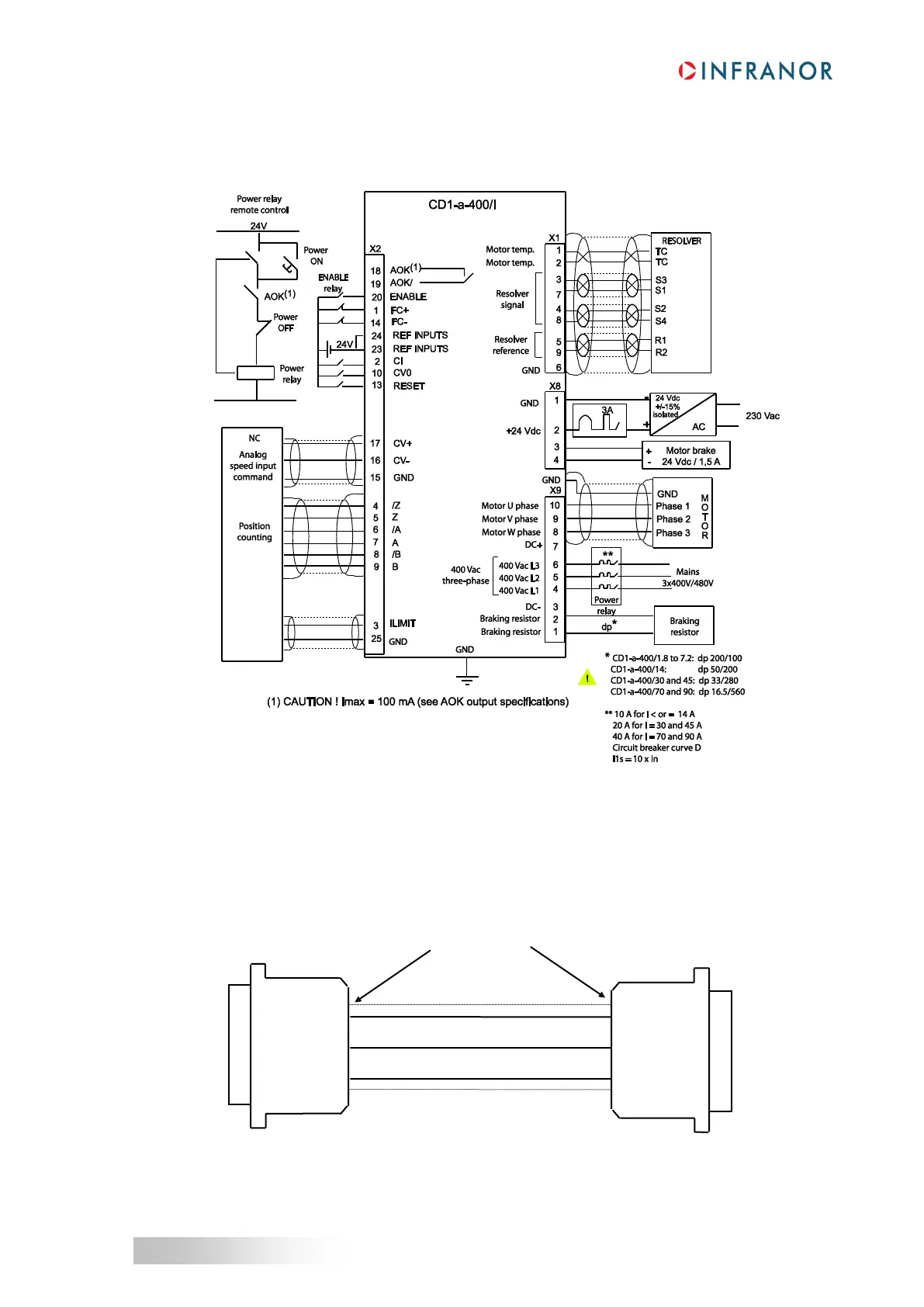

1.2 – XTRAPULS CD1-a-400/I DRIVE
(See chapter 4, section 3.5 for the UL compliant connection).
The protection, on source side, of both 24 V and power supplies must be made by the user.
1.3 - SERIAL LINK CONNECTION
PC
Serial port
360° shield connection
Sub D 9 pins female
Sub D 9 pins female
RxD 2
TxD 3
GND 5
5 GND
2 RxD
3 TxD
CD1-a
X5
