Infranor XtrapulsCD1-a Series - Connectors Shield Connection Procedures

30
Chapter 4 – Connections
XtrapulsCD1-a

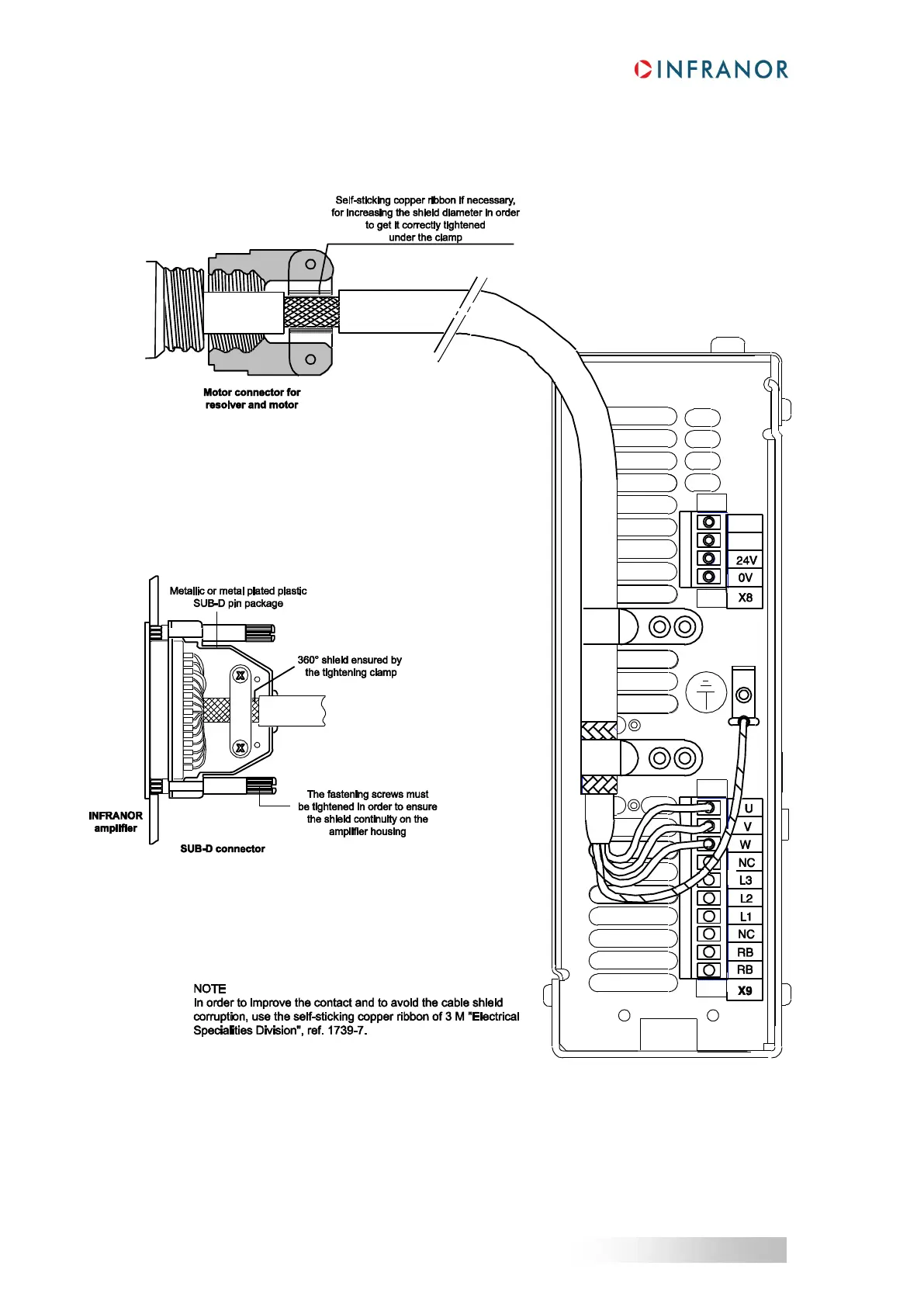

2.2 - CONNECTORS SHIELD CONNECTION
RULE
The shield should never be interrupted or corrupted over the whole cable length.
NOTE
When the 360° shield connection is made by means of a collar, it is not necessary to connect a cable on the
appropriate pin of the SUB-D connector.
