Installation and programming manual
User Interface 25
5.3.3 Repeater board
If you open the repeater enclosure, the rear side of the electronic board (which is attached to the
frontplate) will be on view. Following is a description of the parts which will be used during the installation
phase:

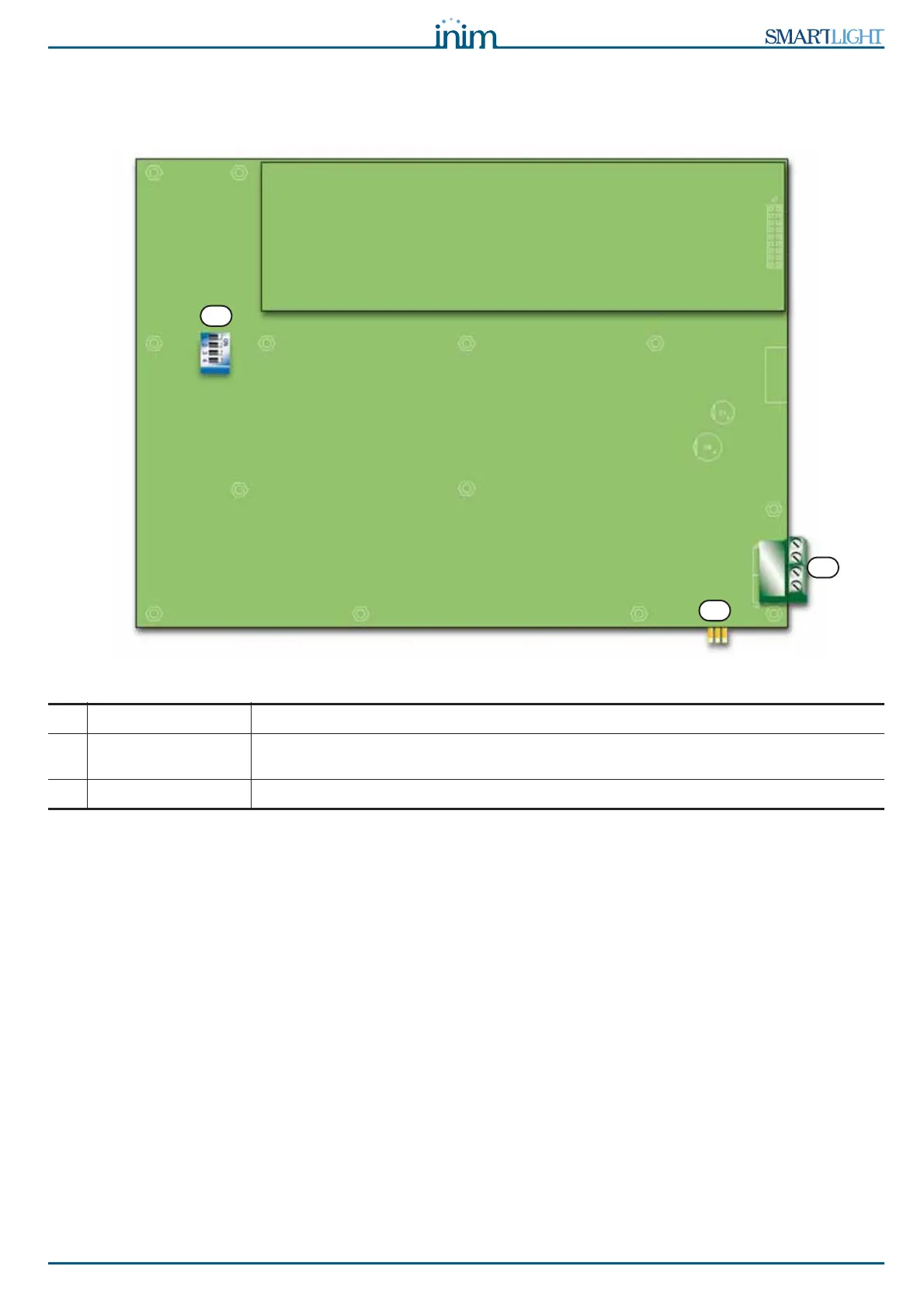

Figure 9 - The rear side of the repeater board
[A] DIP switches For the repeater address setting
[B] RS485 terminals Respectively, from the bottom of the figure to the top “+24V - + GND”, for the
connection to the RS485 BUS
[C] EOL terminals For the setting-jumper position of the repeater position.
A
B
C
