System Interfaces
 GNSS navigation input (RS232 serial port / UDP)
 HRP / motion sensor (RS232 serial port)
 heading sensor (RS232 serial port)
 depth input / output (RS232 serial port)
 synchronizing (trigger) unit (RS232 levels)
 Ethernet
Software
 INNOMAR SESWIN data acquisition software
 INNOMAR SES-Convert data converter SES to SEG-Y, XTF
 INNOMAR SES-NetView for display of online echo prints and system information on remote
computers (Ethernet) for QC
 INNOMAR ISE post-processing software (option)

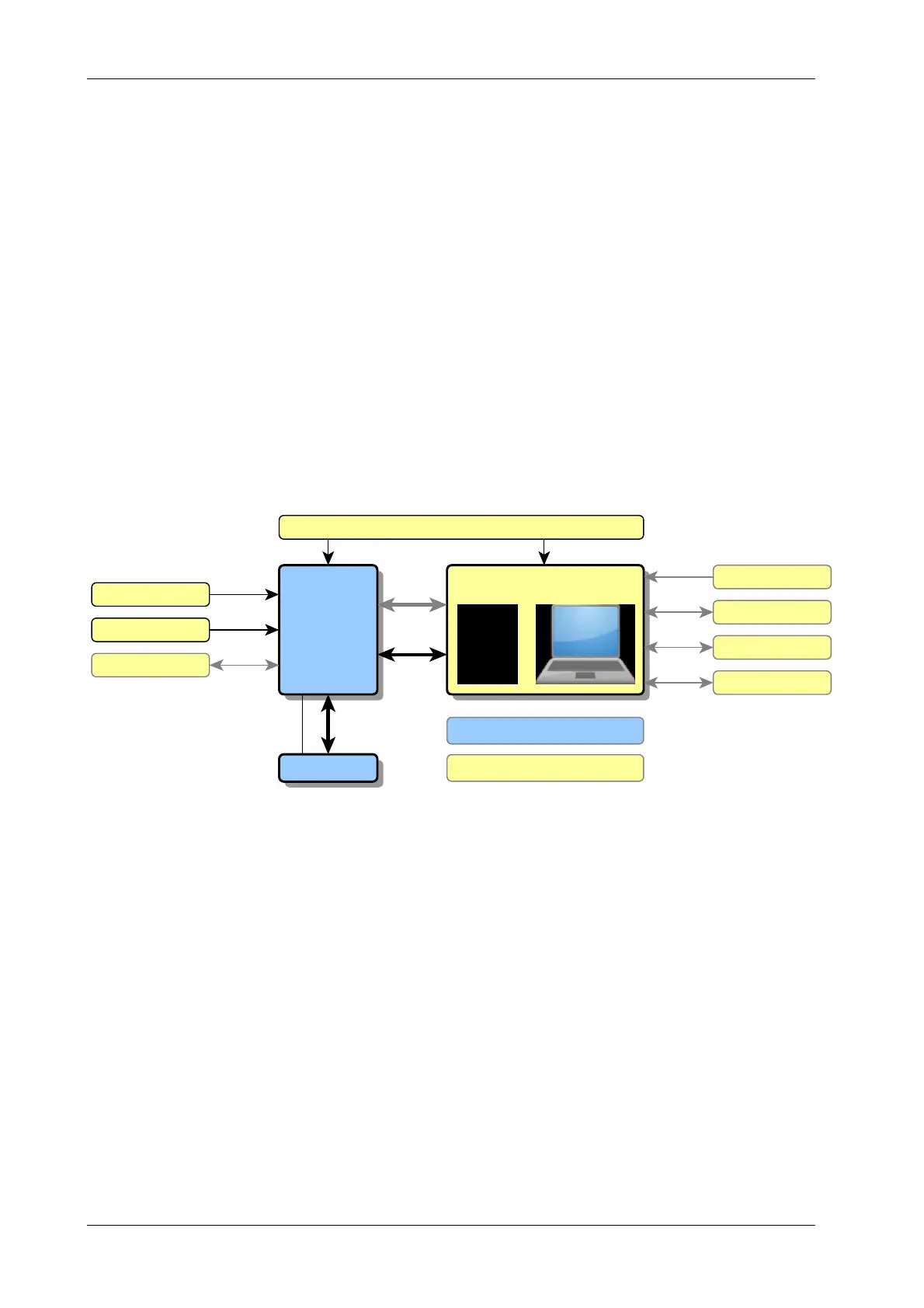

SES smart Wiring Diagram
Transport Boxes
All items are shipped in strong plastic boxes filled with anti-shock foam. These boxes are fitted
for air- and sea shipping and should be used during any transport and storage.
Before putting the system components into the transport boxes after a survey, make sure all
items are cleaned and in dry condition.
Control & Data Storage PC
GNSS Position
Power (230V AC / opt. 12/24V DC)
Motion Sensor
Innomar
Topside Unit
(Transceiver)
Innomar supplied items
User supplied itemsTransducer
Ext. Storage
Trigger In/Out
Water Depth
Ethernet
GNSS Position
or
RS232
RS232
Ethernet
WiFi
GND
Transducer
Cable
USB
BNC
RS232
CAT5
RS232
