56 User’s Manual Innomar SES Parametric Sub-bottom Profilers
56 Innomar Technologie GmbH (2020-09)

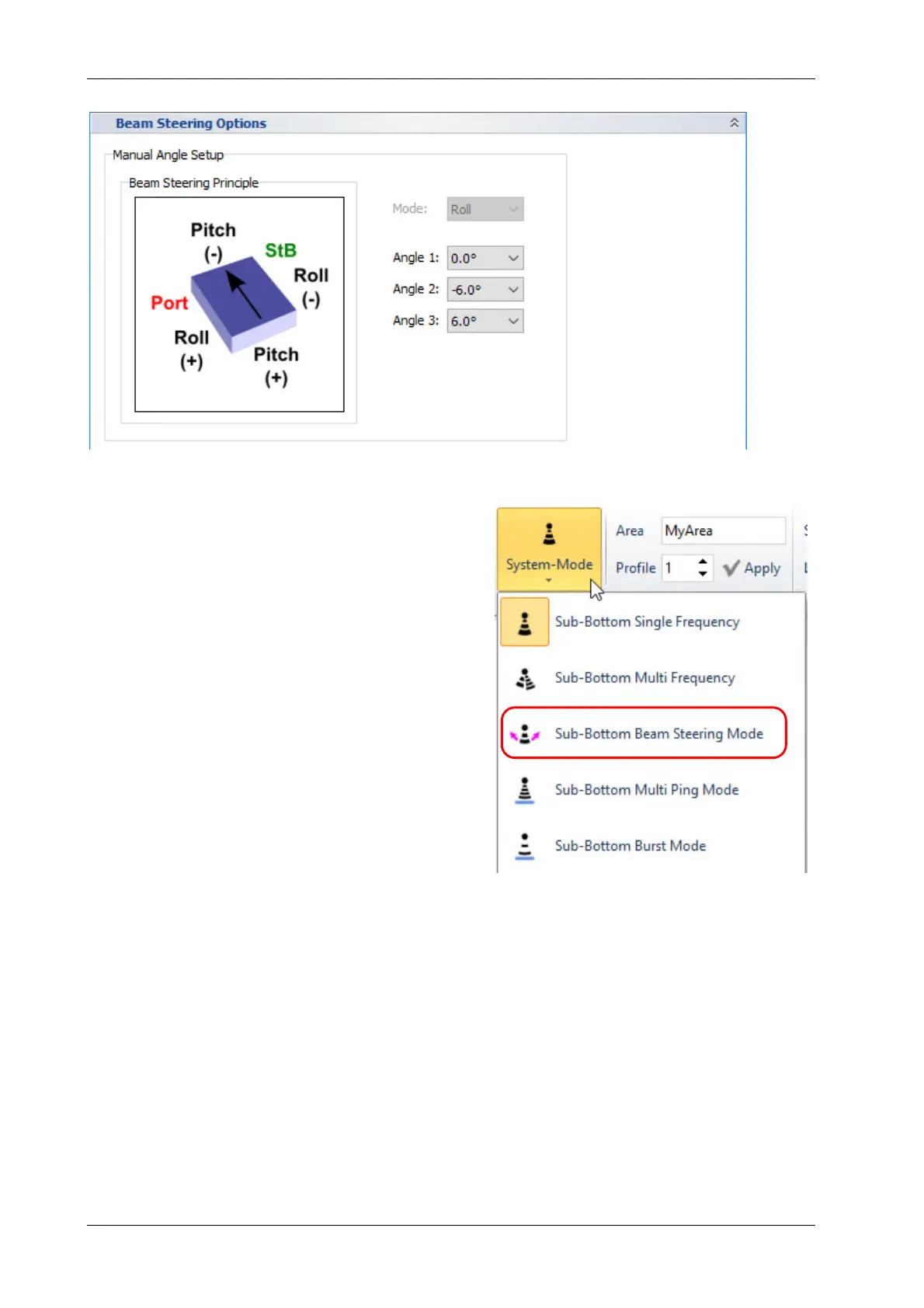

4.11.7 System Setup – Settings – General – Beam Steering Options
This is available with the INNOMAR “standard” and “medium-100” models only.
Manual Angle Setup
There can be three (3) different angles defined
(range and steps depend on SBP model) for subse-
quent transmission. This reduces the pulse repetition
rate per angle.
This feature may be used to scan the seabed, e.g.
while following a submerged pipeline or cable.
All settings made in this “Beam Steering Options” di-
alog are activated via “Home – General – System
Mode” menu, see picture on the right and section
4.9.1 on page 38.
This is not for beam stabilisation! That feature is defined and switched on/off in the
“Motion Sensor” setup, see section 4.11.13.
