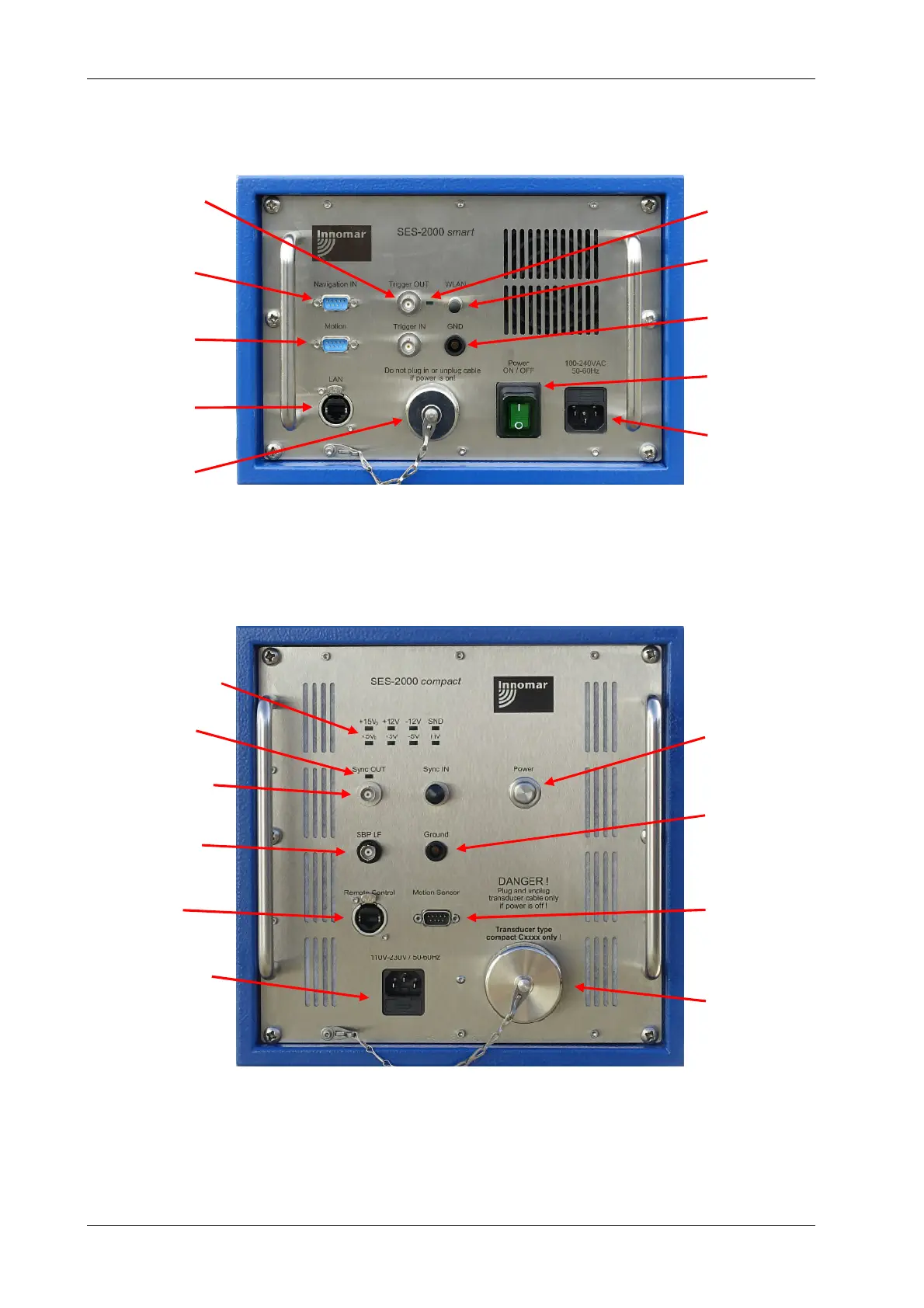

2.4 Innomar SBP Front Panel: Connectors and Switches
Innomar SES “smart”
Innomar SES “compact”
Power indicators
Trigger LED
Sync OUT / IN
BNC connectors
Analog OUT
Ethernet to
control PC
Power connector
and main fuse
Power switch
Ground wire
to transducer
Motion data
(RS232)
Transducer con-
nector
Sync OUT / IN
BNC connectors
GNSS position
data (RS232)
Motion data
(RS232)
Ethernet to
control PC
Transducer con-
nector
Trigger LED
Wi-Fi to control PC
Ground wire
to transducer
Power switch
Power connector
and main fuse
