User’s Manual Innomar SES Parametric Sub-bottom Profilers 73
Innomar Technologie GmbH (2020-09) 73

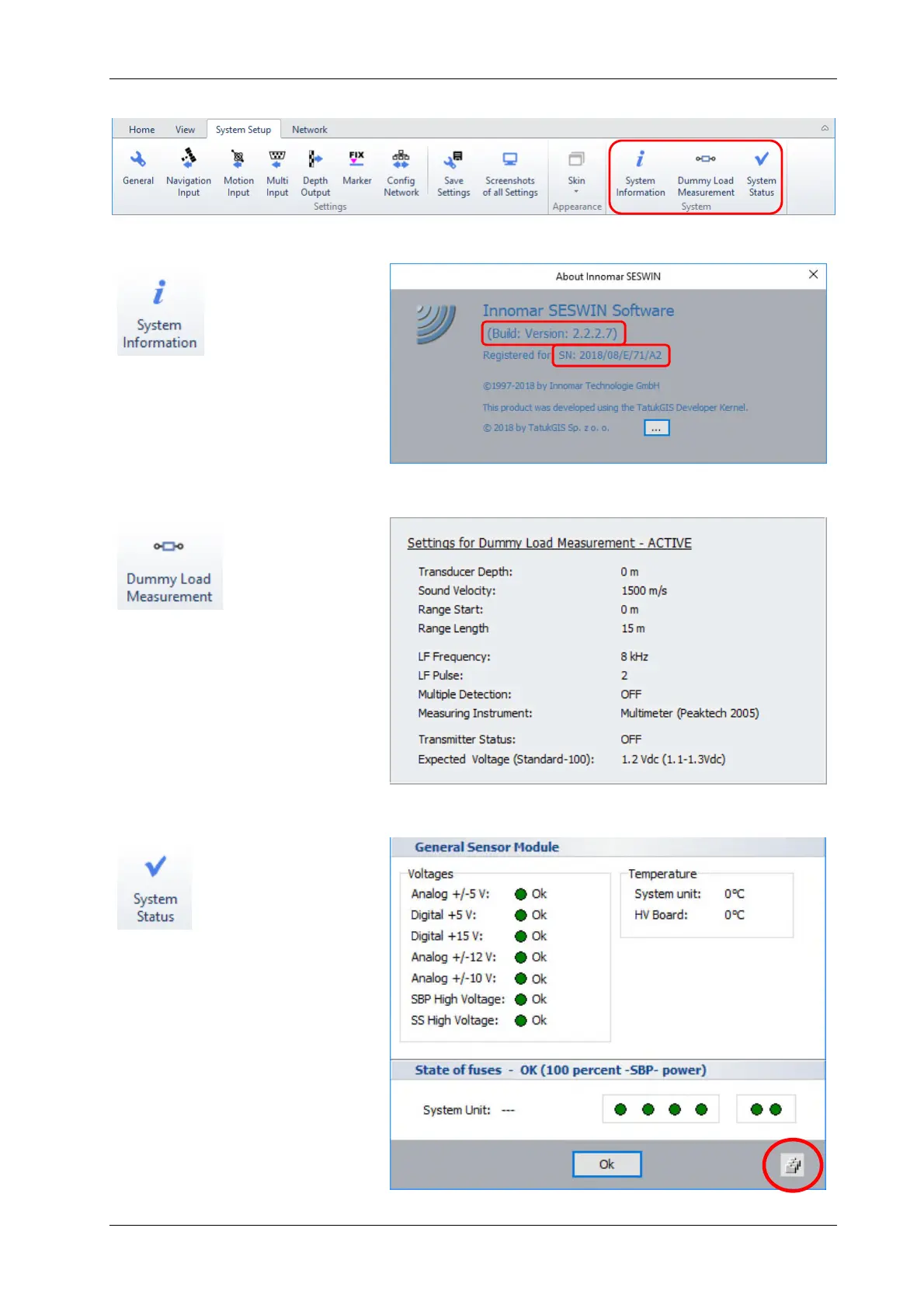

4.13 SESWIN System Setup – System
4.13.1 System Setup – System – System Information
Shows the INNOMAR SES serial
number and SESWIN version
that might be useful in case sup-
port is needed
4.13.2 System Setup – System – Dummy Load Measurement
There is an optional dummy load
available from INNOMAR to check
the transmitters within the top-
side unit. To simplify the test
procedure, system parameters
can be set by this button to the
required valus.
4.13.3 System Setup – System – System Status
Show serial number and hard-
ware sensor information like volt-
ages, temperature, transmitter
status, etc.
The button in the lower right cor-
ner can be used to get a screen-
shot of this dialog.
