Inovance CS200 - Cable Dimensions and Tightening Torque of the CS200-4 T 30 GB;37 GB; Terminal Dimensions of the CS200-4 T 18.5 GB;22 GB

Chapter 7 Selection and Dimensions
- 104 -

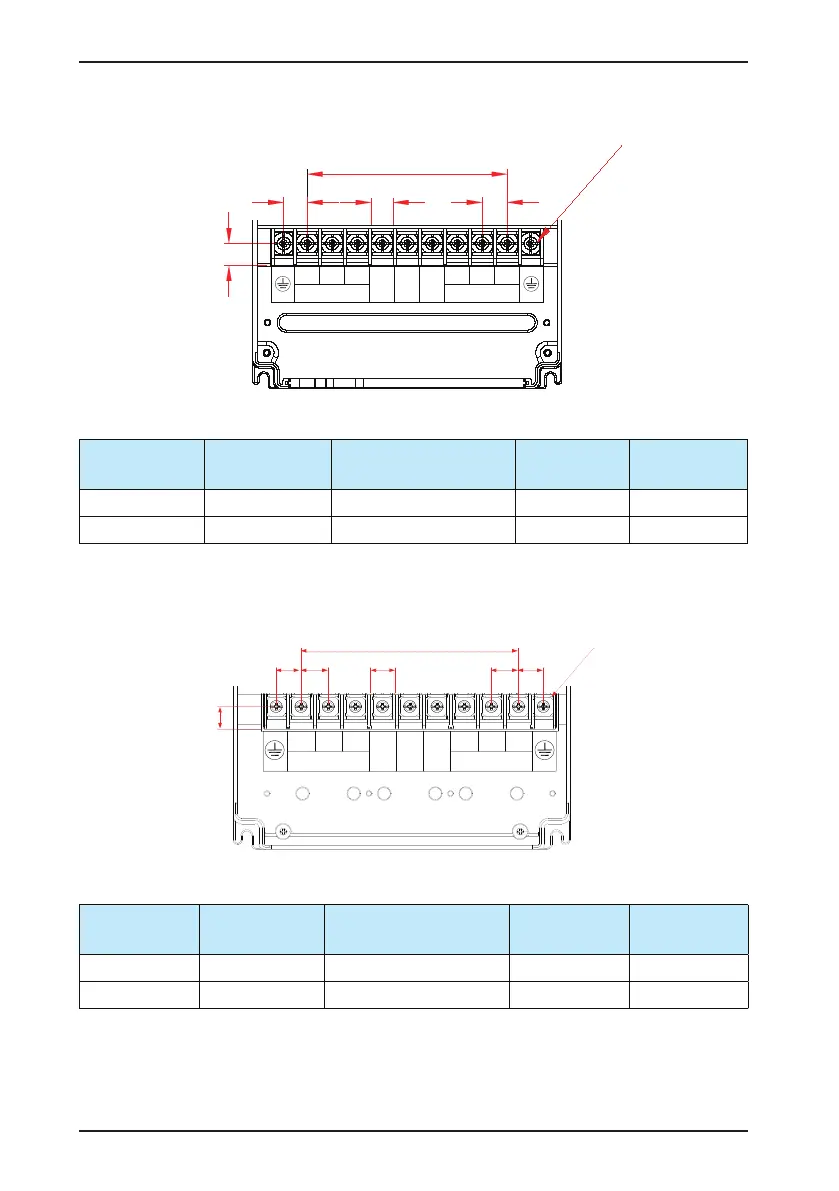

Figure 7-3 Terminal dimensions of the CS200-4T 18.5GB/22GB
136
M
1516
15
17
6
Combination screw
R S T U V W
POWER MOTOR
BR
(+) -
Table 7-3 Cable dimensions and tightening torque of the CS200-4T 18.5GB/22GB
AC Drive Model
Rated Input Current
(A)
Recommended Cable Diameter
(mm
2
)
Tightening Torque
(N·m)
Recommended
Cable Lug Model
CS200-4T18.5GB 49.5 10 4.0 GTNR10-6
CS200-4T22GB 59 16 4.0 GTNR16-6
Figure 7-4 Terminal dimensions of the CS200-4T 30GB/37GB
16.5
18.4
18
20.2
20.2
18.4
161.6
M
6
combination screw
R S T U V W
POWER MOTOR
BR
(+) (-)
Table 7-4 Cable dimensions and tightening torque of the CS200-4T 30GB/37GB
AC Drive Model
Rated Input Current
(A)
Recommended Cable Diameter
(mm
2
)
Tightening Torque
(N·m)
Recommended
Cable Lug Model
CS200-4T30GB 57 16 4.0 GTNR16-6
CS200-4T37GB 69 25 4.0 GTNR25-6
