Standard EMC lter
The following table lists the recommended manufacturers and models of EMC lters for the CS200. Select a proper
one based on actual requirements.
Table 6-1 Recommended manufacturers and models of EMC lters
AC Drive Model
AC Input Filter Model
(Changzhou Jianli)
AC Input Filter Model
(SCHAFFNER)
CS200-4T18.5GB DL-50EBK5 FN 3258-55-34
CS200-4T22GB DL-65EBK5 FN 3258-75-34
CS200-4T30GB DL-65EBK5 FN 3258-75-34
CS200-4T37GB DL-80EBK5 FN 3258-100-35
CS200-4T45GB DL-100EBK5 FN 3258-100-35
CS200-4T55GB DL-130EBK5 FN 3258-130-35
CS200-4T75GB DL-160EBK5 FN 3258-180-40
■
Simple EMC Filter

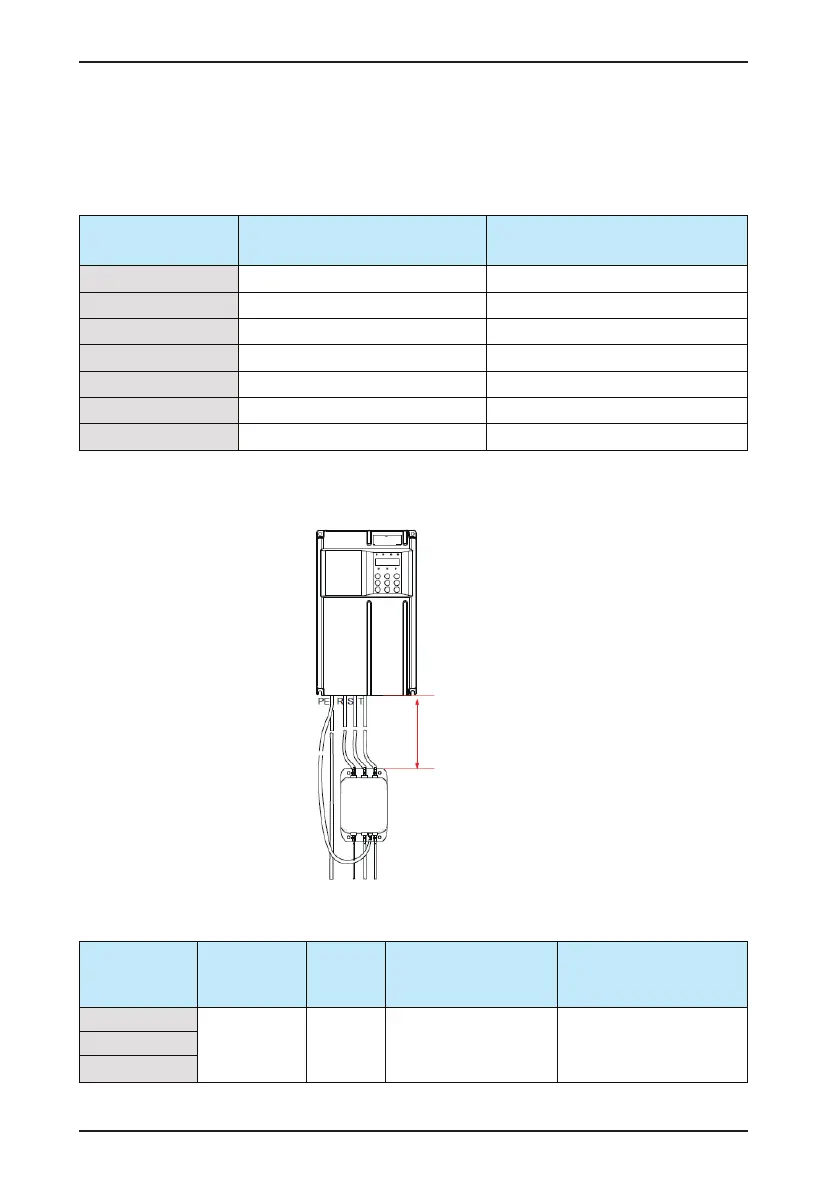

Figure 6-2 Installation of the simple EMC lter
Cable length < 300 mm
Leakage
current
filter
•
Selection of the simple EMC lter
AC Drive Model
Simple EMC Filter
Model
Filter Rated
Current (A)
Overall Dimensions
(Length x Width x Height:
mm)
Mounting Dimensions
(Mounting Length x Mounting
Width: mm)
CS200-4T18.5GB
DL65EB1/10 65 218 x 140 x 80 184 x 112
CS200-4T22GB
CS200-4T30GB
