Appendix
- 124 -
Appendix A: Extension I/O Card MD38IO1
It is applied to the CS200 of 3.7 kW and above.
A.1 Overview
MD38IO1 is developed by Inovance and is designed for extension of input and output terminals of the CS200 drive.
Item Specication
Input terminals Five digital input (DI) terminals
Output terminals
One relay output
One digital output
One analog output
Communication
RS485 communication interface
CAN communication interface
A.2 Mechanical Installation and Description of Terminals
■

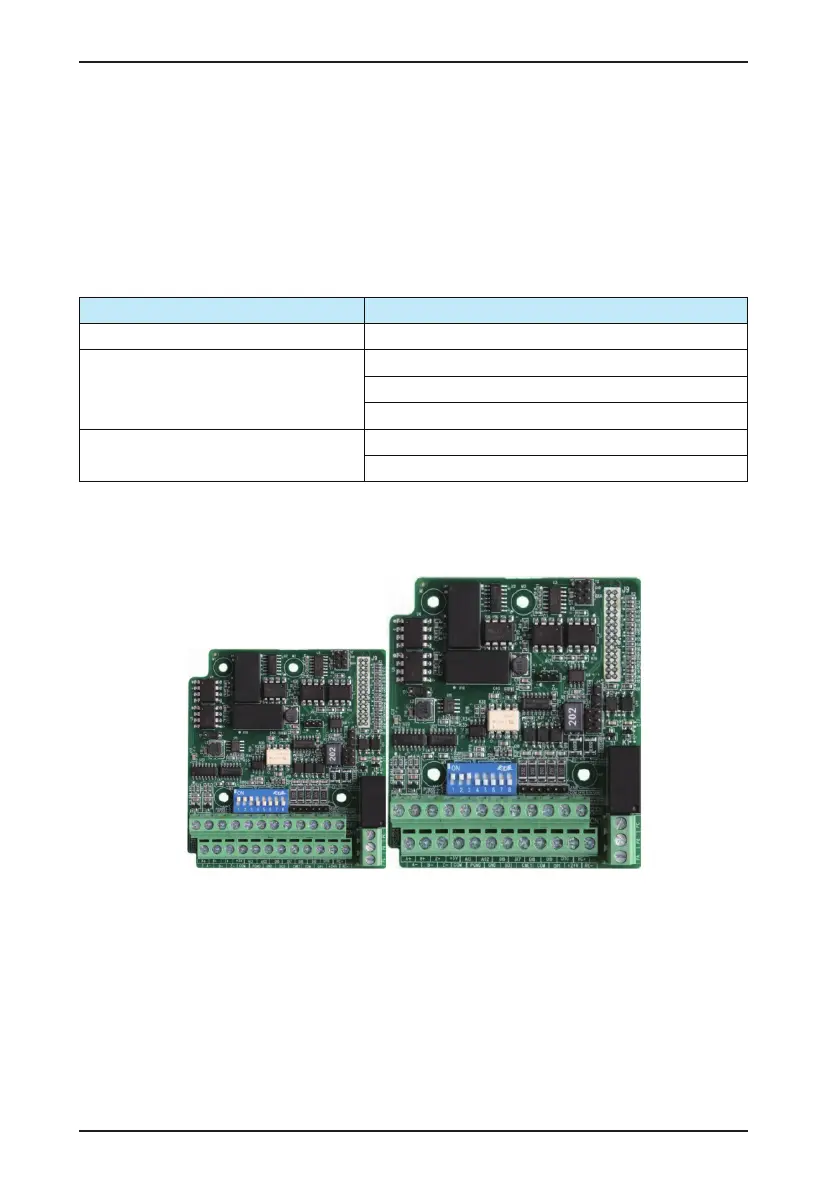

Physical Appearance
Mechanical Installation
The MD38IO1 an embedded extension card. Power off the drive and wait for a period of 10 minutes until the
charging indicator goes off before starting the installation work.
As shown in the following gure, insert the MD38IO1 card into the drive and x it with the prepared screws.
