Chapter 6 EMC
- 95 -
AC Drive Model
Simple EMC Filter
Model
Filter Rated
Current (A)
Overall Dimensions
(Length x Width x Height:
mm)
Mounting Dimensions
(Mounting Length x Mounting
Width: mm)
CS200-4T37GB
DL-120EB1/10 120 334 x 185 x 90 304 x 155CS200-4T45GB
CS200-4T55GB
CS200-4T75GB DL-180EB1/10 180 388 x 220 x 100 354 x 190

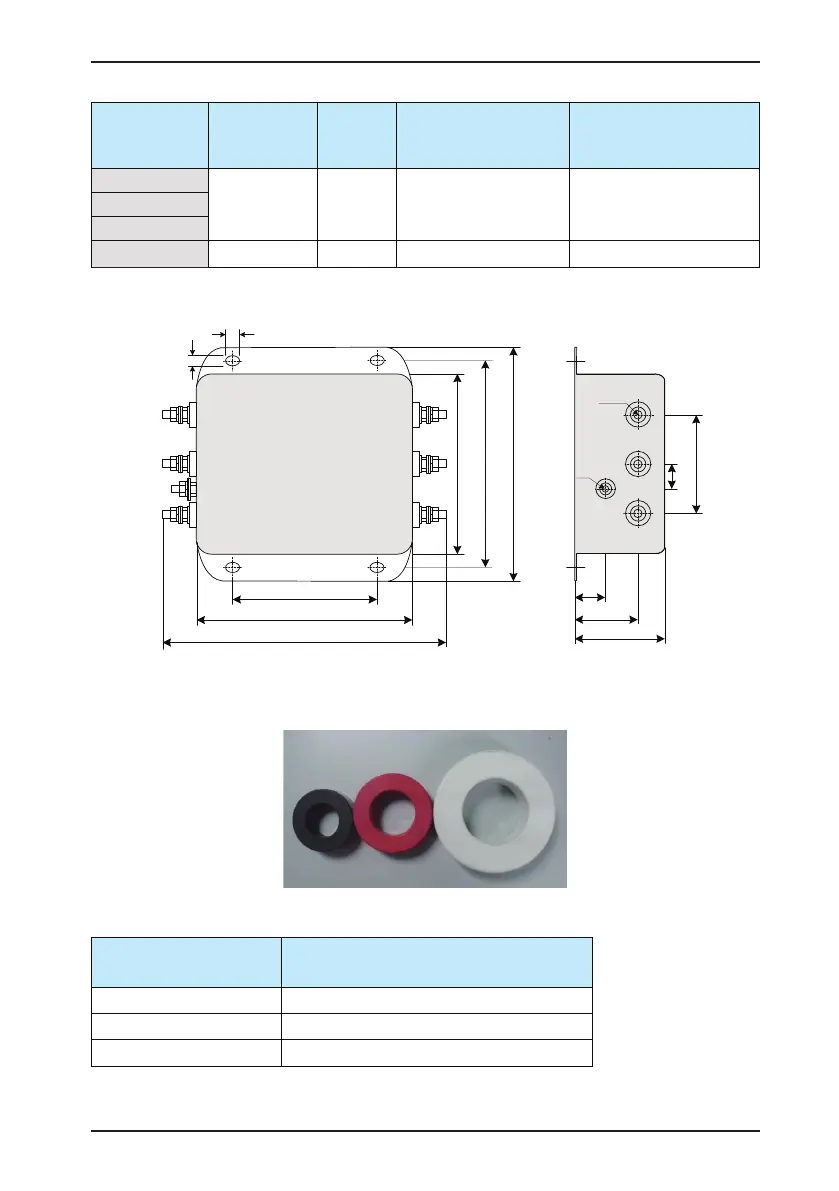

The overall dimensions and mounting dimensions of the simple EMC lter are as follows:
6.5 ± 0.2
4.5 ± 0.2
Mounting length: 80 ± 0.2
120 ± 2
Length: 157 ± 3
100 ±
2
Mounting width:
115 ± 0.
5
Width
: 130 ± 2
13.75
± 1
55
± 1
M4
M6 x
6
17 ± 1
35 ± 1
Height: 50 ± 2
Unit: mm
■
Amorphous Magnetic Ring (Common-mode Suppressor/Zero Phase Reactor)
Add the magnetic ring to the input cables R, S, T or output cables U, V, W to improve the EMC performance.
•
Selection of the magnetic ring
Magnetic Ring Model
Dimensions
(Outer Diameter x Inner Diameter x Thickness: mm)
DY644020H 64*40*20
DY805020H 80*50*20
DY1207030H 120*70*30
