7. Line voltage system
The CS200 is applicable to the line voltage system with neutral point grounded. If it is used in an IT system,
remove the VDR jumper screw as shown in the following gure. Failure to comply may result in personal injury
or damage to the AC drive.

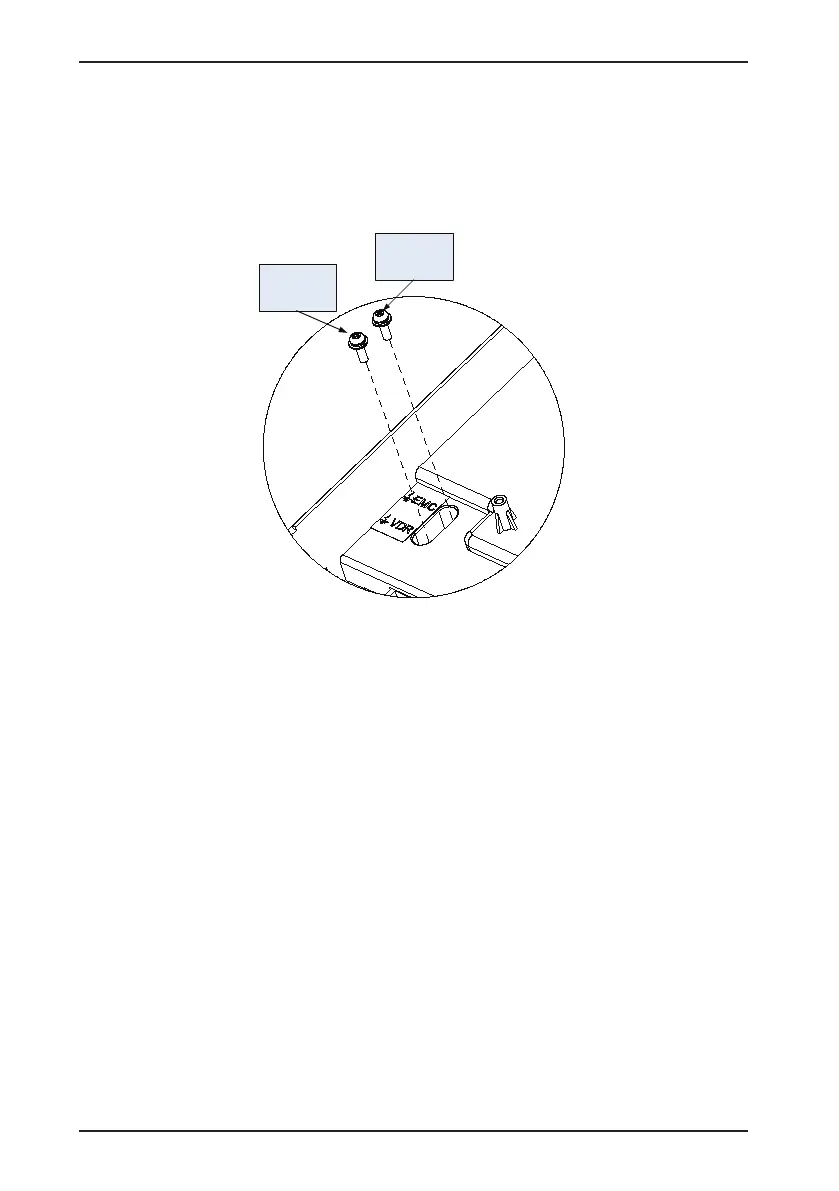

Figure 3-14 The VDR jumper screw position
VDR jumper
screw
EMC jumper
screw
