Inovance MD580 Series - STO Safe Design and Wiring

Electrical Design
‑102‑

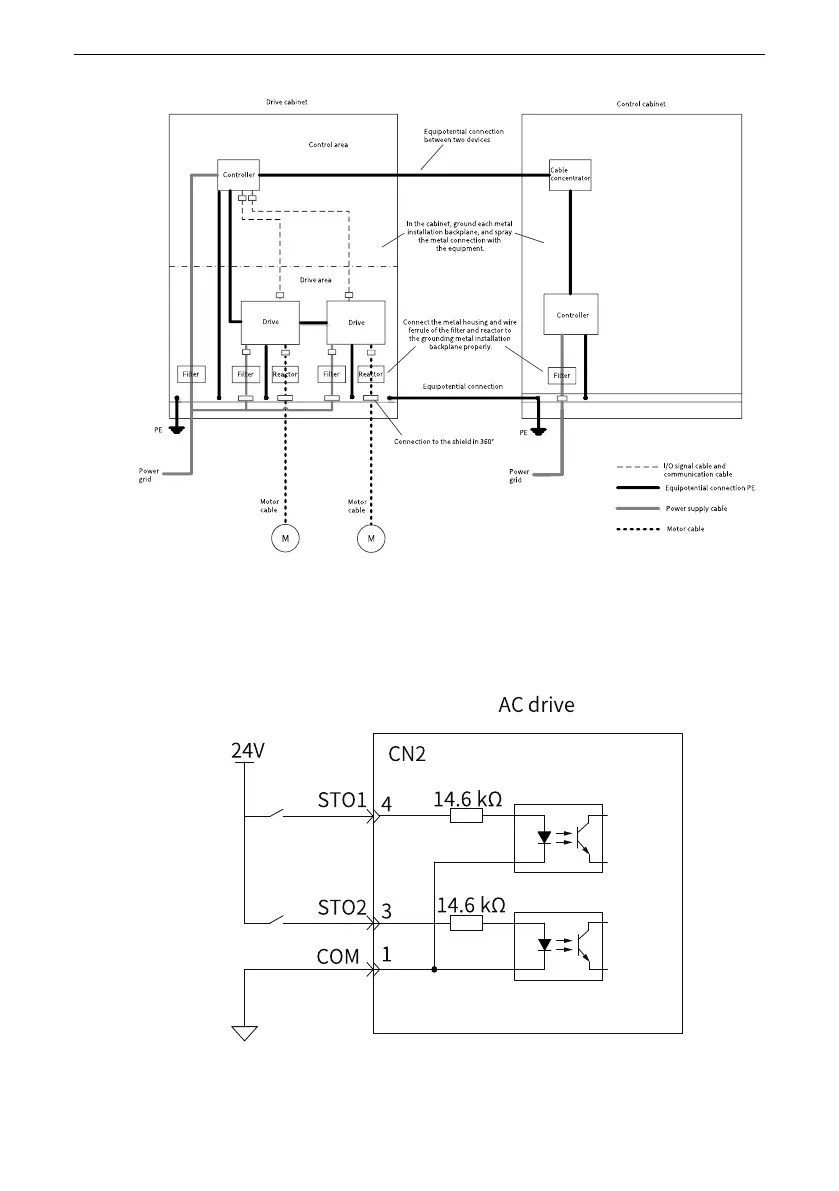

Figure 3‑42 Recommended wiring for the cabinet system
3.7 STO Safe Design and Wiring
1. Example connection of external 24 V
2. Example connection of internal 24 V
