Multi Zone—Continued
If you’ve connected your Zone 2/3/4 speakers to the AV
receiver, as explained in “Connecting Your Zone 2
Speakers Directly to the AV receiver” on page 137,
“Connecting Your Zone 3 Speakers Directly to the AV
receiver” on page 139 or “Connecting Your Zone 4
Speakers Directly to the AV receiver” on page 140, you
must set the “Powered Zone2”, “Powered Zone3” or
“Powered Zone4” setting to “Act” (Activated).
Notes:
• Powered Zone2 cannot be used if “Passive Sub-
woofer” setting set to “Use” (see page 55).
• Powered Zone3 cannot be used if “Speakers
Type(Front)” setting set to “Bi-Amp” or “BTL” (see
page 55).
• Powered Zone4 cannot be used if “Powered Zone2” or
“Powered Zone3” is set to “Not Act”.
• This procedure can also be performed on the AV
receiver by using its [Setup] button, arrow buttons, and
[Enter] button.

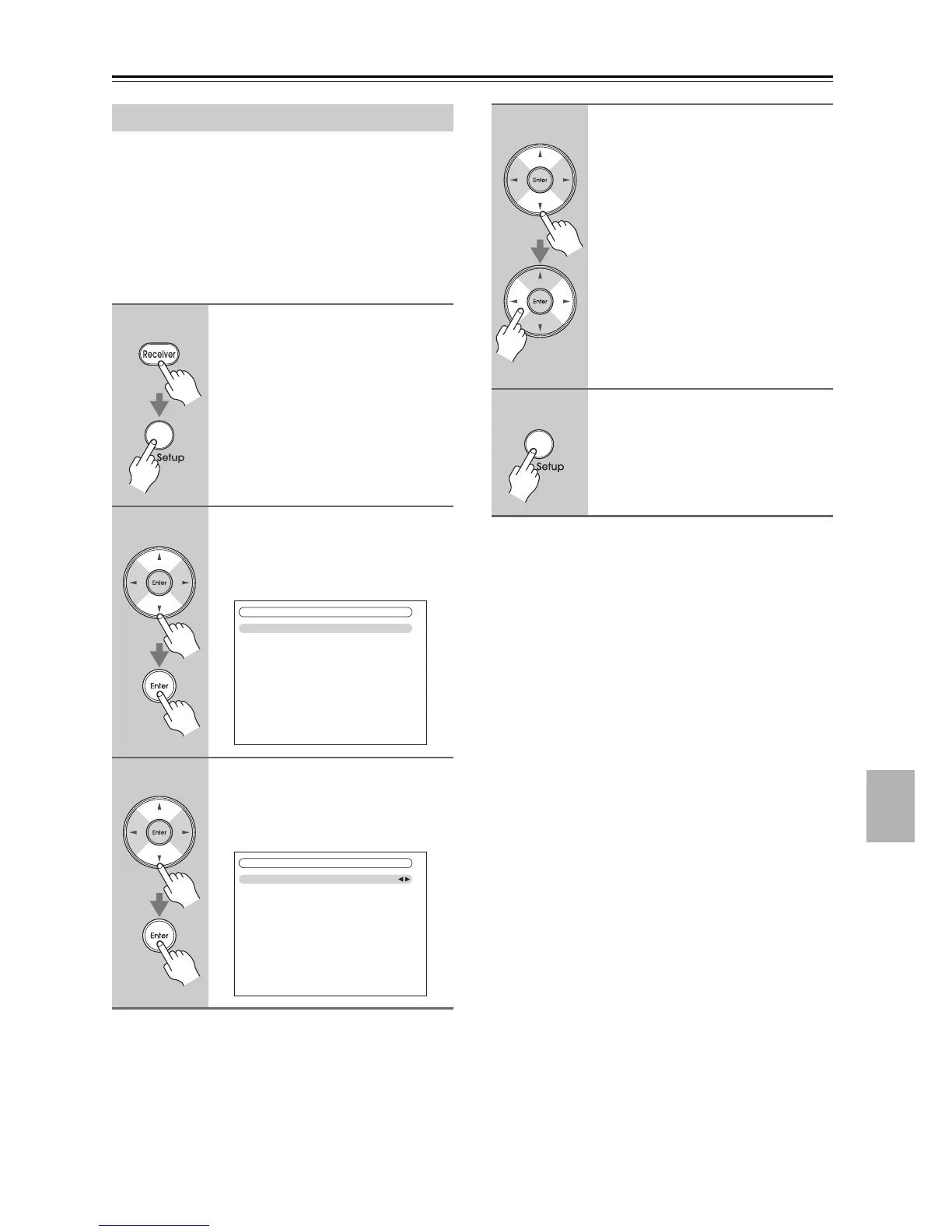

Setting the Powered Zone 2/3/4
1
Press the [Receiver] button
followed by the [Setup] button.
The main menu appears onscreen.
If the main menu doesn’t appear, make
sure the appropriate external input is
selected on your TV.
2
Use the Up and Down [q]/[w]
buttons to select “2. Speaker
Setup”, and then press [Enter].
The “Speaker Setup” menu appears.
3
Use the Up and Down [q]/[w]
buttons to select “1. Speaker
Settings”, and then press [Enter].
The “Speaker Settings” menu appears.
2. Speaker Setup
1. Speaker Settings
2. Speaker Configuration
3. Speaker Distance
4. Level Calibration
5. Equalizer Settings
6. THX Audio Setup
2–1. Speaker Settings
Speaker Impedance
Speakers Type(Front)
Passive Subwoofer
Powered Zone2
Powered Zone3
Powered Zone4
6ohms
Normal
Not Use
Not Act
Not Act
Not Act
4
Use the Up and Down [q]/[w]
buttons to select “Powered
Zone2”, “Powered Zone3” or
“Powered Zone4”, and use the
Left and Right [e]/[r] buttons to
select:
Not Act:
ZONE 2/3/4 L/R speaker terminals
not activated (Powered Zone 2/3/4
disabled).
Act:
ZONE 2/3/4 L/R speaker terminals
activated (Powered Zone 2/3/4
enabled).
5
Press the [Setup] button.
The setup menu closes.
To Next Page
