Front & Rear Panels
The actual front panel has various logos printed on it. They are not shown here for clarity.
The page numbers in parentheses show where you can find the main explanation for each item.
a On/Standby button (45)
This button is used to set the AV receiver to On or
Standby.
b Standby indicator (45)
Lights when the AV receiver is in Standby mode,
and it flashes while a signal is being received from
the remote controller.
c Zone 2 indicator (143)
Lights when Zone 2 is selected.
d Zone 3 indicator (143)
Lights when Zone 3 is selected.
e Zone 4 indicator (143)
Lights when Zone 4 is selected.
f Remote control sensor/transmitter (14)
The sensor receives control signals from the remote
controller. The transmitter transmits setting data to
the remote controller.
g Monitor Out button (46)
Used to set the “Monitor Out” setting.
h Tone button (65, 144)
Used to select the tone (bass and treble) for the main
room and the tone and balance for Zone 2 or
Zone 3.
Down and Up [–]/[+] buttons (65, 144)
Used to adjust the tone (bass and treble) for the
main room and the tone and balance for Zone 2 or
Zone 3.
i Display
See “Display” on page 10.
j Movie/TV button (88)
Selects the listening modes intended for use with
movies and TV.
k Music button (88)
Selects the listening modes intended for use with
music.
l Game button (88)
Selects the listening modes intended for use with
video games.
m Dimmer button (66)
(North American models)
This button is used to adjust the display brightness.
RT/PTY/TP button (82)
(Australian models)
This button is used for RDS (Radio Data System).
The [RT/PTY/TP] button does not work in areas
where RDS broadcasts are not available. See “Using
RDS (Australian models)” on page 82.
n Memory button (70)
This button is used when storing or deleting radio
presets.
o Tuning Mode button (69)
This button is used to select the Auto or Manual
tuning mode.

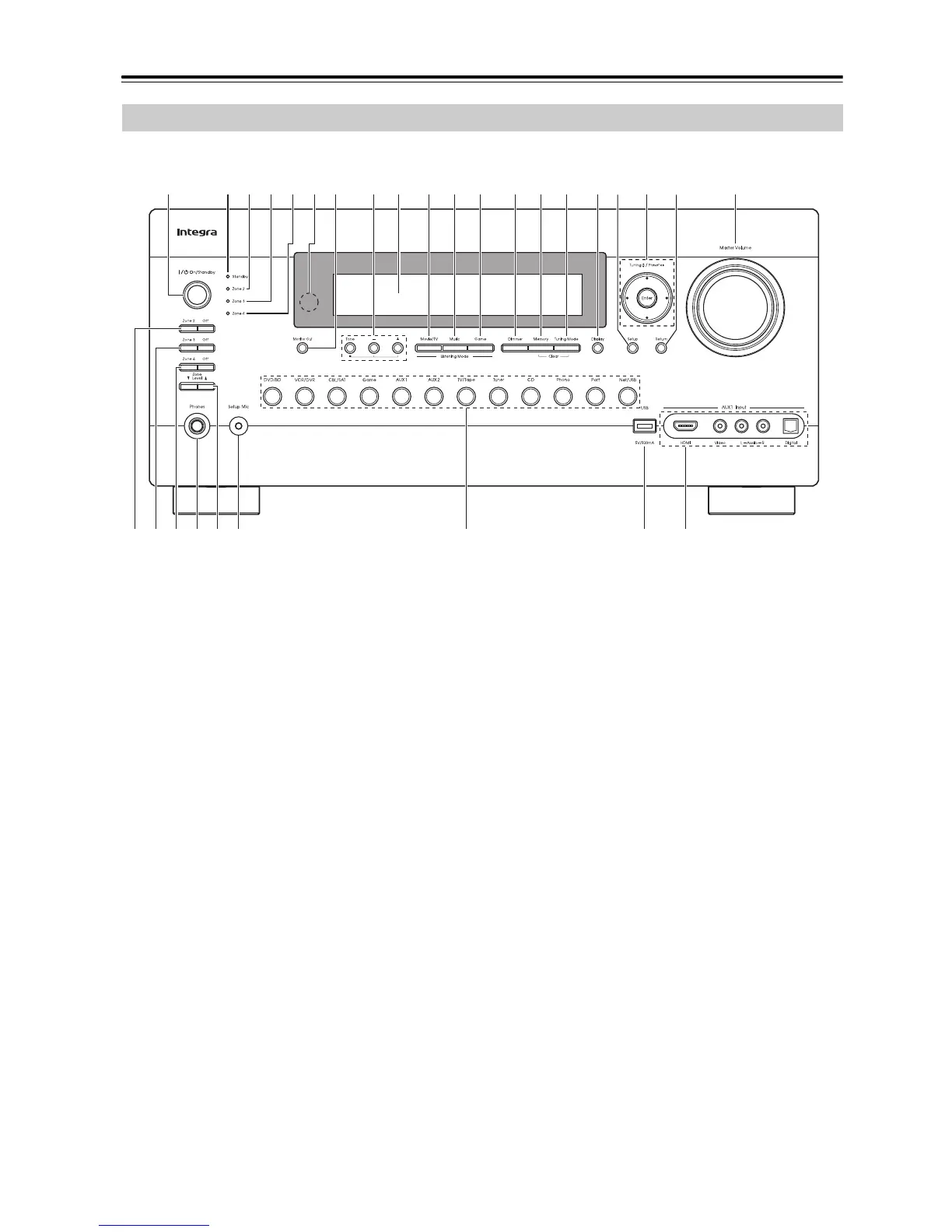

Front Panel
