Connecting the AV receiver—Continued
The FRONT L/R and SURR BACK/ZONE 3 L/R ter-
minal posts can be used with front speakers and surround
back speakers respectively, or bridged together to pro-
vide almost double the output power for the front
speakers.
• When bridging is used, surround back speakers cannot
be used.
• For bridging, the positive (+) FRONT L/R and SURR
BACK/ZONE 3 L/R terminal posts are used, but the
negative (–) FRONT L/R and SURR BACK/ZONE 3
L/R terminals are not.
• Once you’ve completed the bridging connections
shown below and turned on the AV receiver, you must
set the “Speakers Type(Front)” setting to “BTL” to
enable bridging (see page 54).
Notes:
• Use only front speakers with an impedance of 8
ohms or higher for bridging. Failure to do so may
seriously damage the AV receiver.
• When using bridging, make sure that your front speak-
ers can handle the additional power.

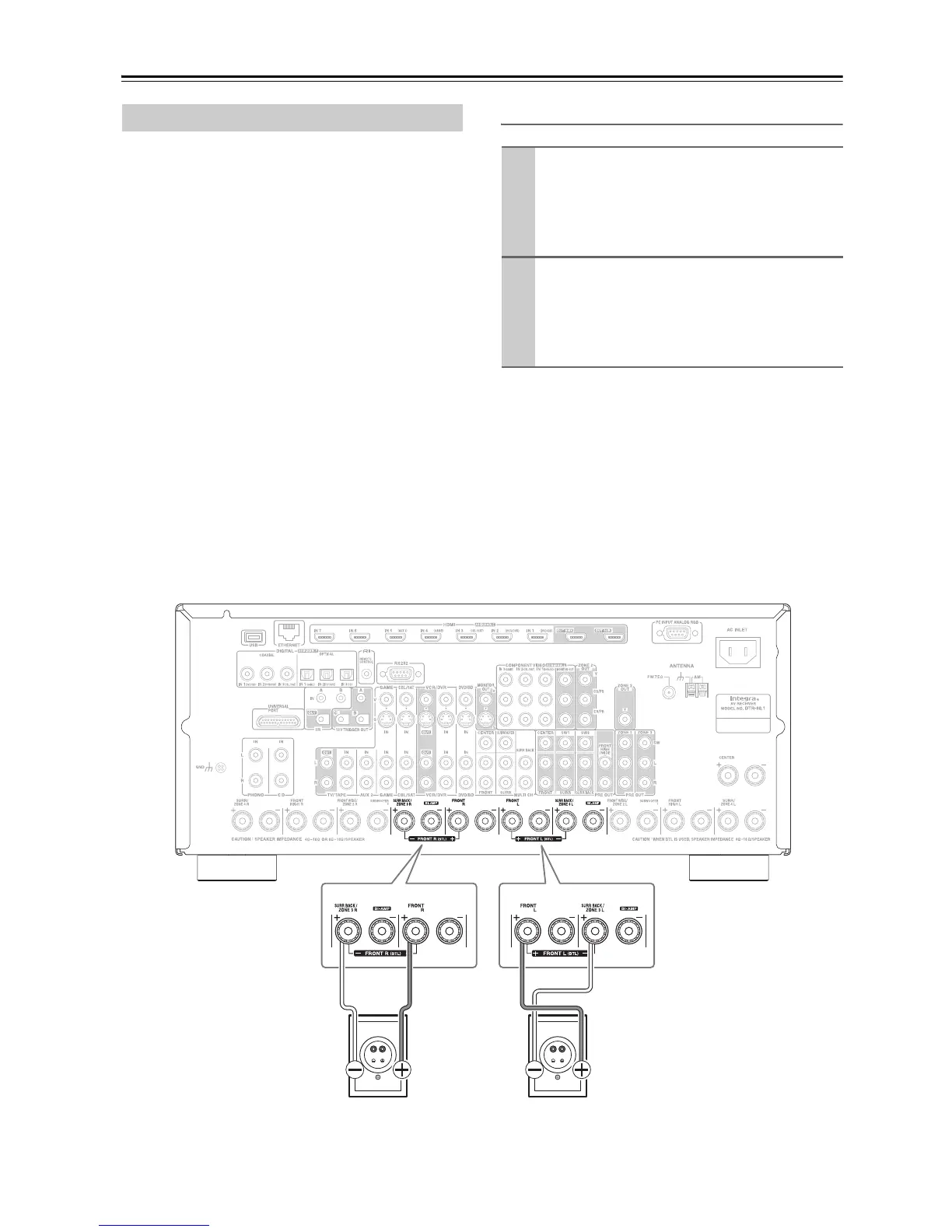

Bridged Speaker Hookup
Bridging the Front Speakers
1
Connect the AV receiver’s FRONT R positive (+)
terminal to the right speaker’s positive (+) ter-
minal. And connect the AV receiver’s SURR
BACK/ZONE 3 R positive (+) terminal to the
right speaker’s negative (–) terminal.
2
Connect the AV receiver’s FRONT L positive (+)
terminal to the left speaker’s positive (+) terminal.
And connect the AV receiver’s SURR
BACK/ZONE 3 L positive (+) terminal to the left
speaker’s negative (–) terminal.
Right speaker Left speaker
To Next Page
