Multi Zone—Continued

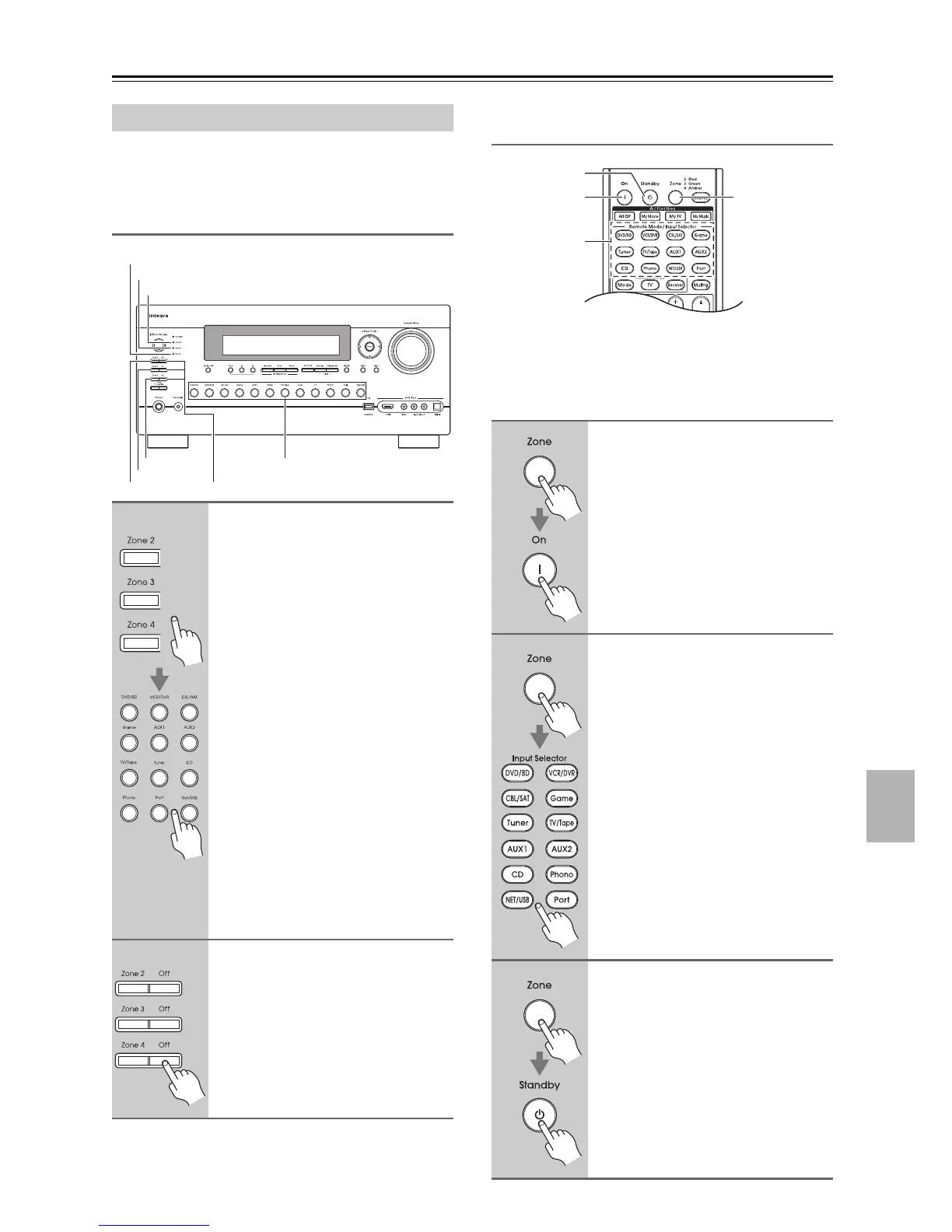

This section explains how to turn Zone 2/3/4 on and off,
how to select an input source for Zone 2/3/4, and how to
adjust the volume for Zone 2/3/4.
Controlling Zone 2/3/4 from the AV receiver
Note:
When Zone 2/3/4 is turned off, the output from the 12V
TRIGGER OUT goes low (0 volts).
Controlling Zone 2/3/4 with the Remote
Controller
Note:
To control Zone 2/3/4, you must press the remote con-
troller’s [Zone] button first.
The Zone button turns red while Zone 2 is on, and green
while Zone 3 is on, and amber while Zone 4 is on.
Using Zone 2/3/4
1
To turn on Zone 2/3/4 and select
an input source, press the
[Zone 2], [Zone 3] or [Zone 4]
button followed by an input
selector button within 8 seconds.
Zone 2/3/4 turns on, the Zone 2/3/4
indicator lights up.
Tip:
The 12V TRIGGER OUT goes high
(+12 V).
To select AM or FM press the [Tuner]
input selector and the [Zone 2],
[Zone 3] or [Zone 4] button repeatedly.
You can also select SIRIUS (North
American models).
To select the same source as that of the
main room, press the [Zone 2],
[Zone 3] or [Zone 4] button twice.
“Zone 2 Selector: Source”, “Zone 3
Selector: Source” or “Zone 4 Selector:
Source” appears on the display.
2
To turn off Zone 2/3/4, press the
[Off] button.
The zone is turned off, and the Zone 2,
Zone 3 or Zone 4 indicator goes off.
Zone 2
Off
Zone 3
Zone 4
Zone 2 indicator
Zone 4 indicator
Input selector buttons
Zone 3 indicator
1
Press the [Zone] button
repeatedly, then point the remote
controller at the AV receiver and
press the [On] button.
Tip:
The 12V TRIGGER OUT goes high
(+12 V).
2
To select an input source for
Zone 2/3/4, press the [Zone]
button repeatedly, followed by an
Input Selector button.
To select AM or FM press the [Tuner]
Input Selector
and the [Zone] button
repeatedly. You can also select SIRIUS
(North American models).
3
To turn off Zone 2/3/4, press the
[Zone] button repeatedly,
followed by the [Standby] button.
Input
Selector
On
Zone
Standby
To Next Page
