20

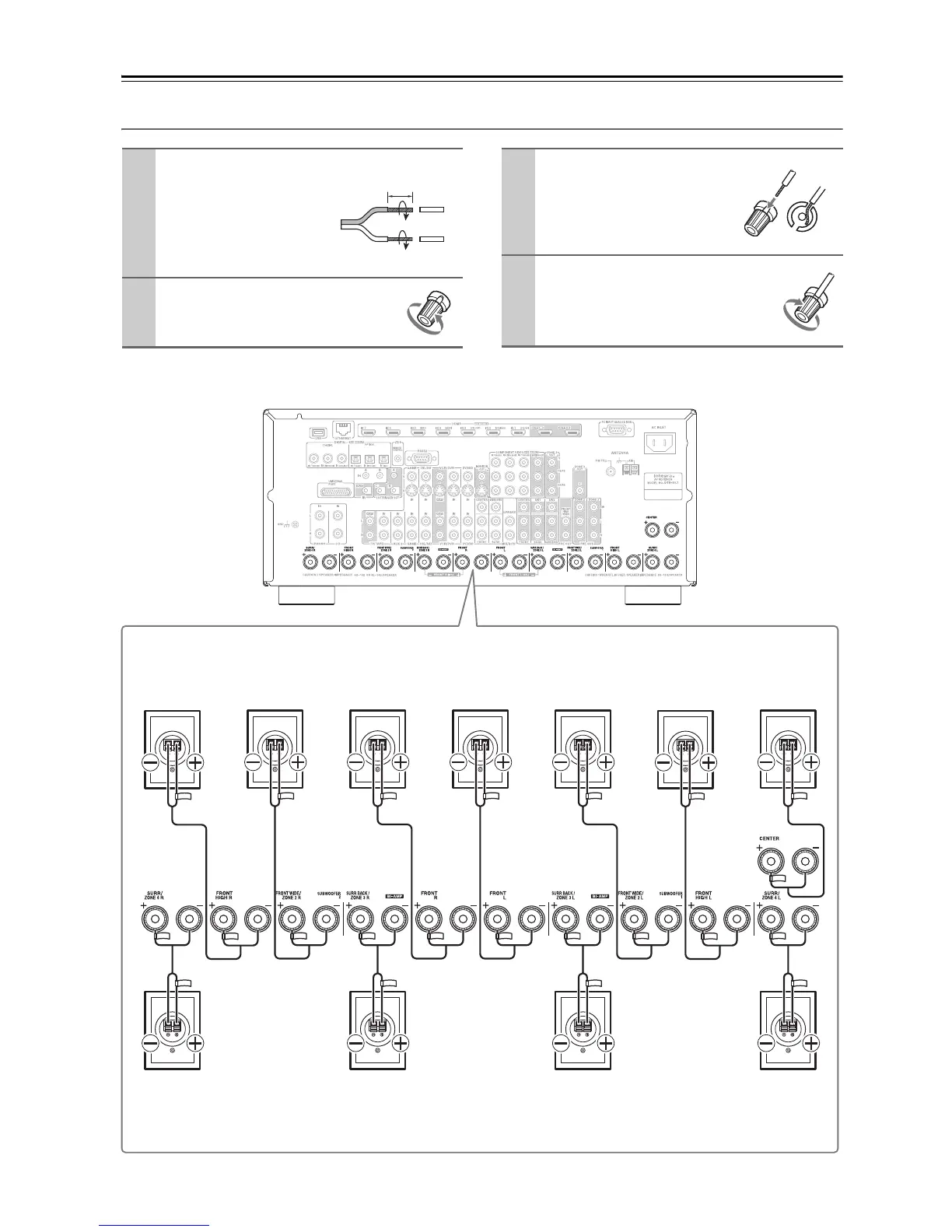

Connecting the AV receiver—Continued
Connecting the Speaker Cables
The following illustration shows which speaker should be connected to each pair of terminals. If you’re using only one
surround back speaker, connect it to the SURR BACK/ZONE 3 L terminal.
1
Strip 1/2" to 5/8" (12 to
15 mm) of insulation
from the ends of the
speaker cables, and
twist the bare wires
tightly, as shown.
2
Unscrew the terminal.
1/2" to 5/8"
(12 to 15 mm)
3
Fully insert the bare
wires.
4
Screw the terminal tight.
Surround
back left
speaker
Surround
back right
speaker
Surround
left
speaker
Surround
right
speaker
Front high
left
speaker
Front high
right
speaker
Front left
speaker
Front right
speaker
Center
speaker
Front wide
right
speaker
Front wide
left
speaker
To Next Page
