Intel Atom D2700

Embedded Intel® Atom Processor D2700 with Intel® NM10 Express Chipset 
16
2.1.2 Board Layout
Figure 1 shows the location of the major components.

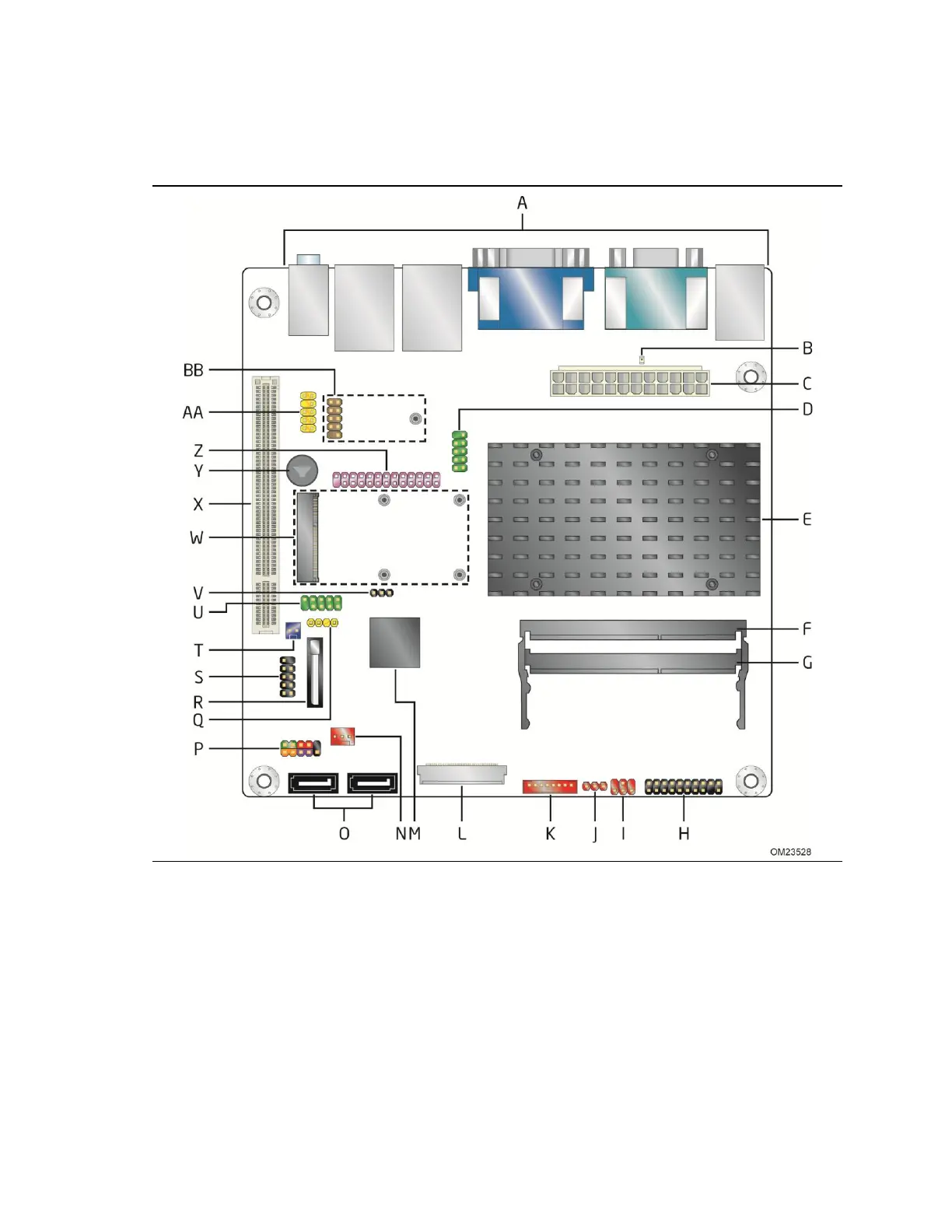

Figure 1. Major Board Components (Top)
