Embedded Intel® Atom Processor D2700 with Intel® NM10 Express Chipset 
61
3.2.2.5 Front Panel USB 2.0 Headers

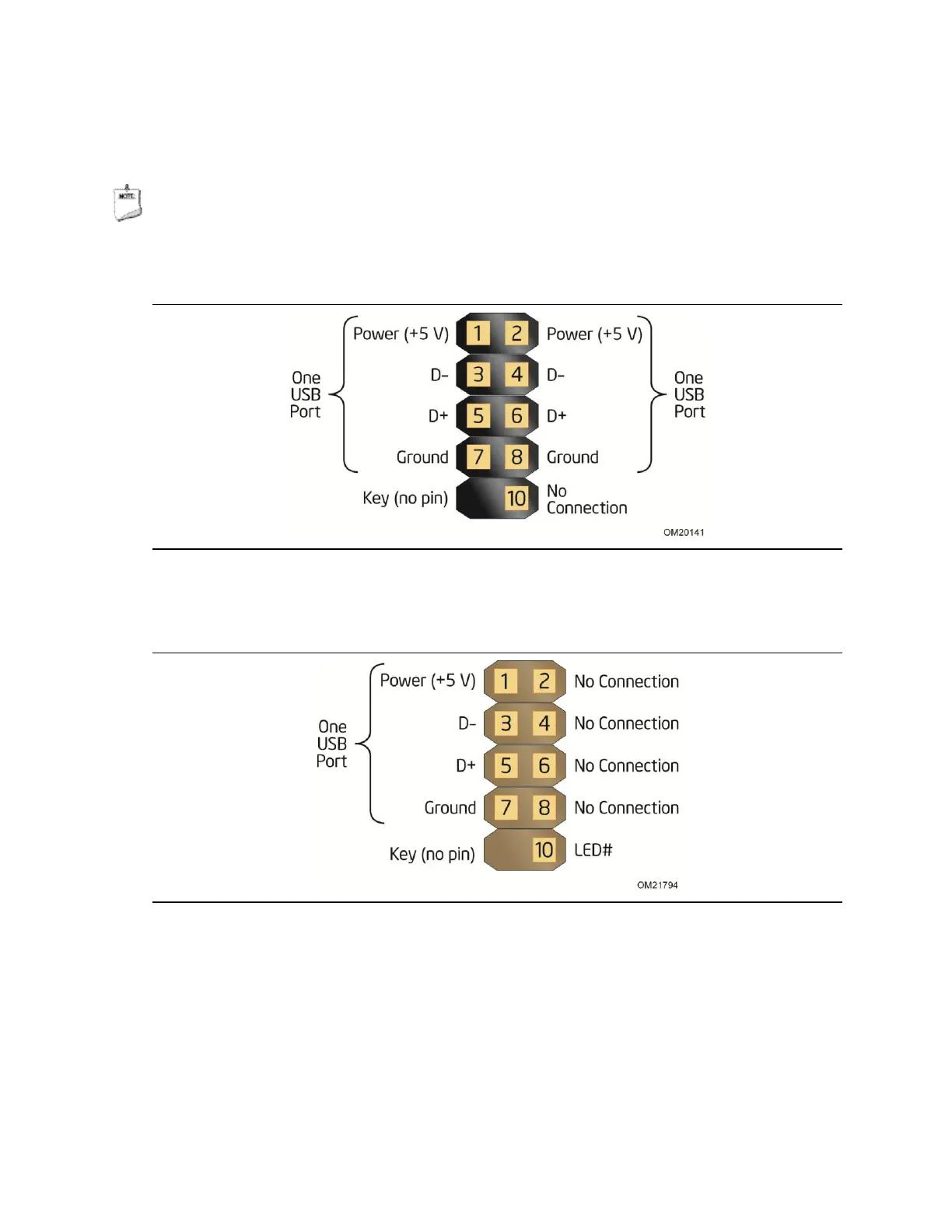

Figure 13 and Figure 14 are connection diagrams for the front panel USB 2.0 headers.

NOTE
 The +5 VDC power on the USB 2.0 headers is fused.
 Use only a front panel USB connector that conforms to the USB 2.0 specification for
high-speed USB devices.
Figure 13. Connection Diagram for Front Panel USB 2.0 Header
Figure 14. Connection Diagram for Front Panel USB 2.0 Header
with Intel
®
Z-USB Solid-State Drive or Compatible Device Support
