2.12.2 Thermal Monitoring

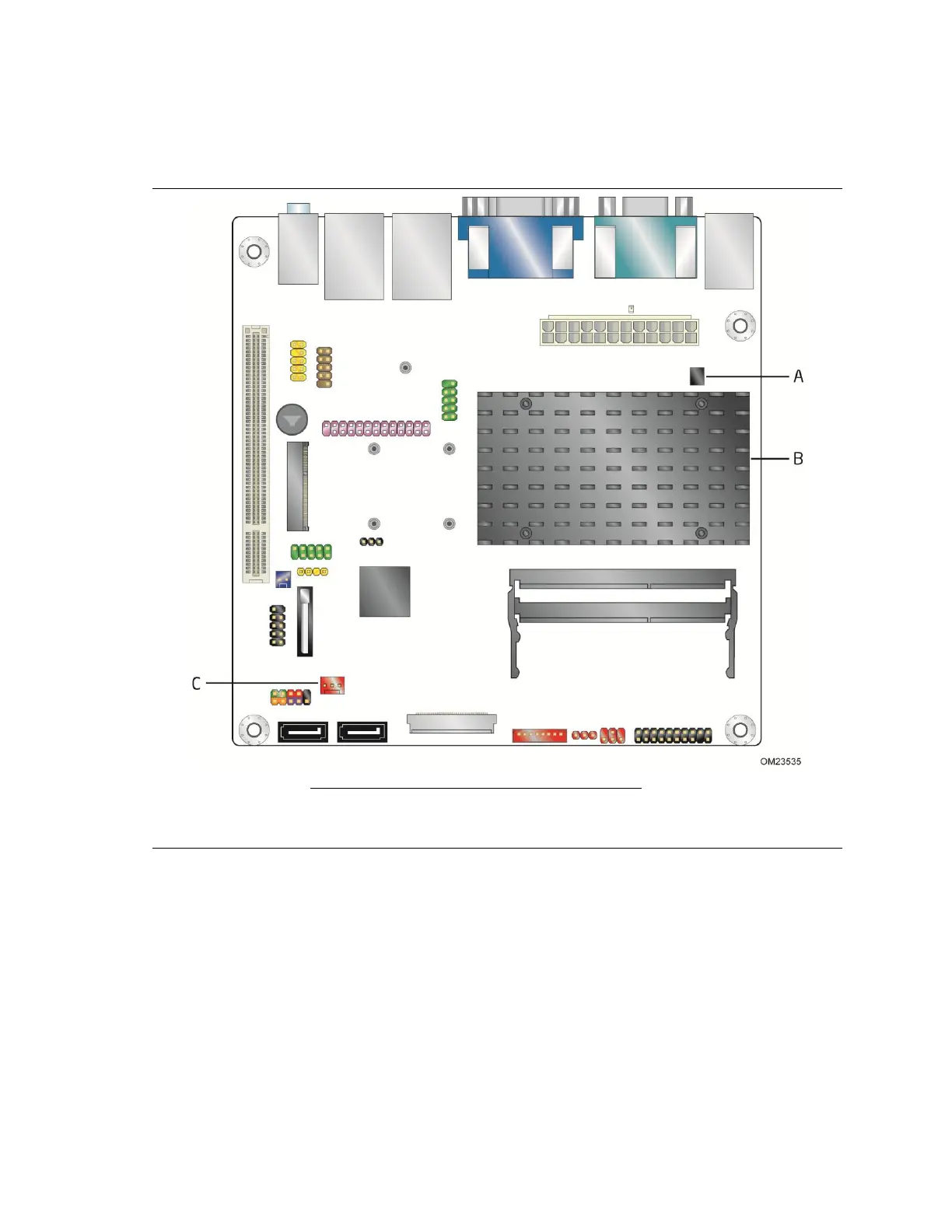

Figure 6 shows the locations of the thermal sensors and fan header.
Item
Description
A
Remote thermal sensor
B
DTS, located on the processor die
C
System fan header
Figure 6. Thermal Sensors and Fan Header
