Embedded Intel® Atom Processor D2700 with Intel® NM10 Express Chipset
87
After installing the desired USB devices, snap back the front plate.
6.5 Installing SSD and Fans
Install the SSD using the provided screws. The SSD (and optional coolers) will be
fastened onto the SSD Mounting Bracket see Figure 22. On the bracket you can install
ured below.

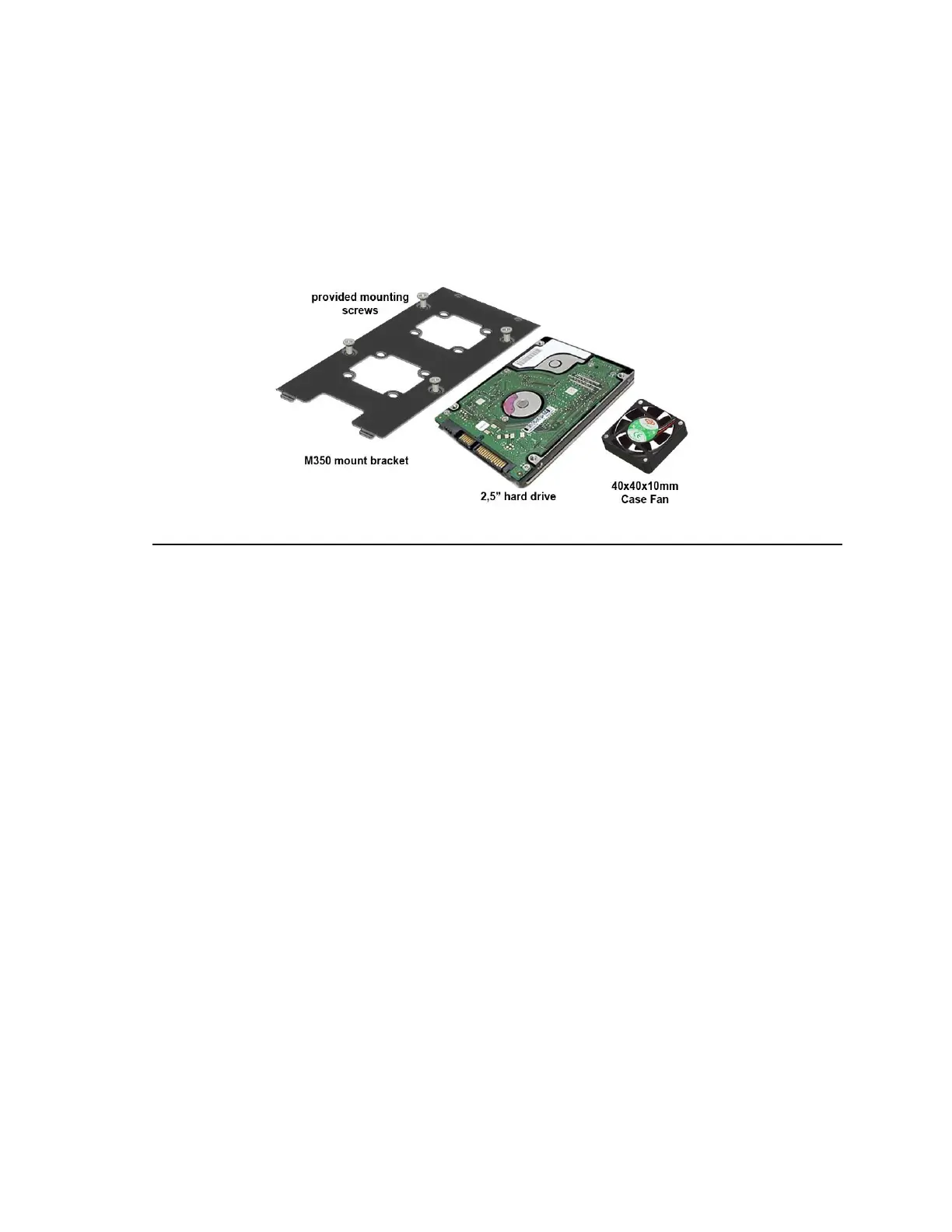

Figure 22: Mount Bracket for HDD, SSD, or Fan
