Embedded Intel® Atom Processor D2700 with Intel® NM10 Express Chipset 
47
3.2.1 Back Panel
3.2.1.1 Back Panel Connectors

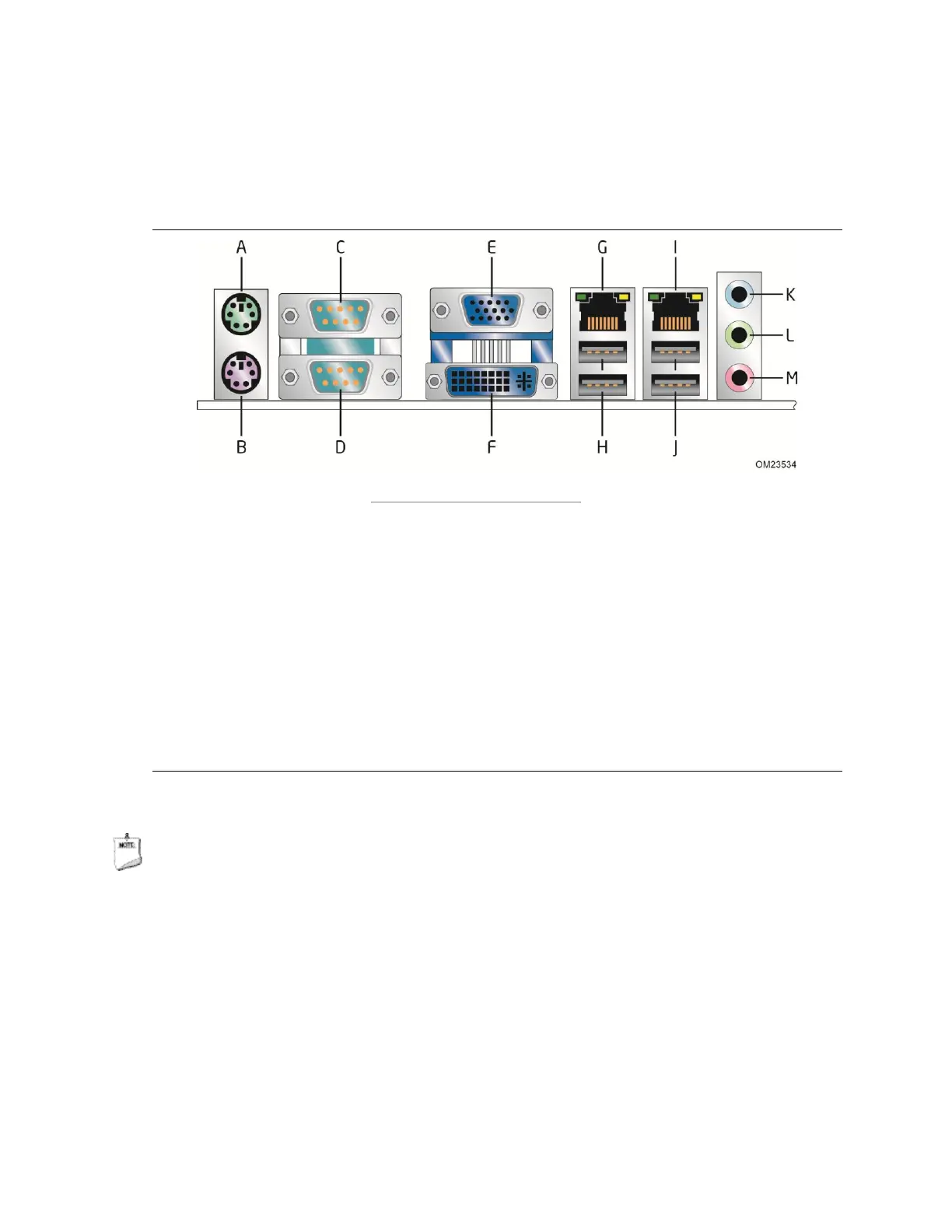

Figure 9 shows the location of the back panel connectors.
Item
Description
A
PS/2 mouse port
B
PS/2 keyboard port
C
Serial port connector
D
Serial port connector
E
VGA connector
F
DVI-I connector
G
LAN port
H
USB 2.0 ports
I
LAN port
J
USB 2.0 ports
K
Line in
L
Line out
M
Mic in
Figure 9. Back Panel Connectors

NOTE
The back panel audio line out connector is designed to power headphones or amplified
speakers only. Poor audio quality occurs if passive (non-amplified) speakers are
connected to this output.
