3.2.2.4 Front Panel Header
This section describes the functions of the front panel header. Table 28 lists the signal
names of the front panel header. Figure 12 is a connection diagram for the front panel
header.
Table 28. Front Panel Header
Pin
Signal
In/
Out
Description
Pin
Signal
In/
Out
Description
Hard Drive Activity LED
Power LED
1
HD_PWR
Out
Hard disk LED
pull-up to +5 V
2
HDR_BLNK_GRN
Out
Front panel green
LED
3
HDA#
Out
Hard disk active
LED
4
HDR_BLNK_YEL
Out
Front panel yellow
LED
Reset Switch
On/Off Switch
5
Ground
Ground
6
FPBUT_IN
In
Power switch
7
FP_RESET#
In
Reset switch
8
Ground
Ground
Power
Not Connected
9
+5 V
Power
10
N/C
Not connected

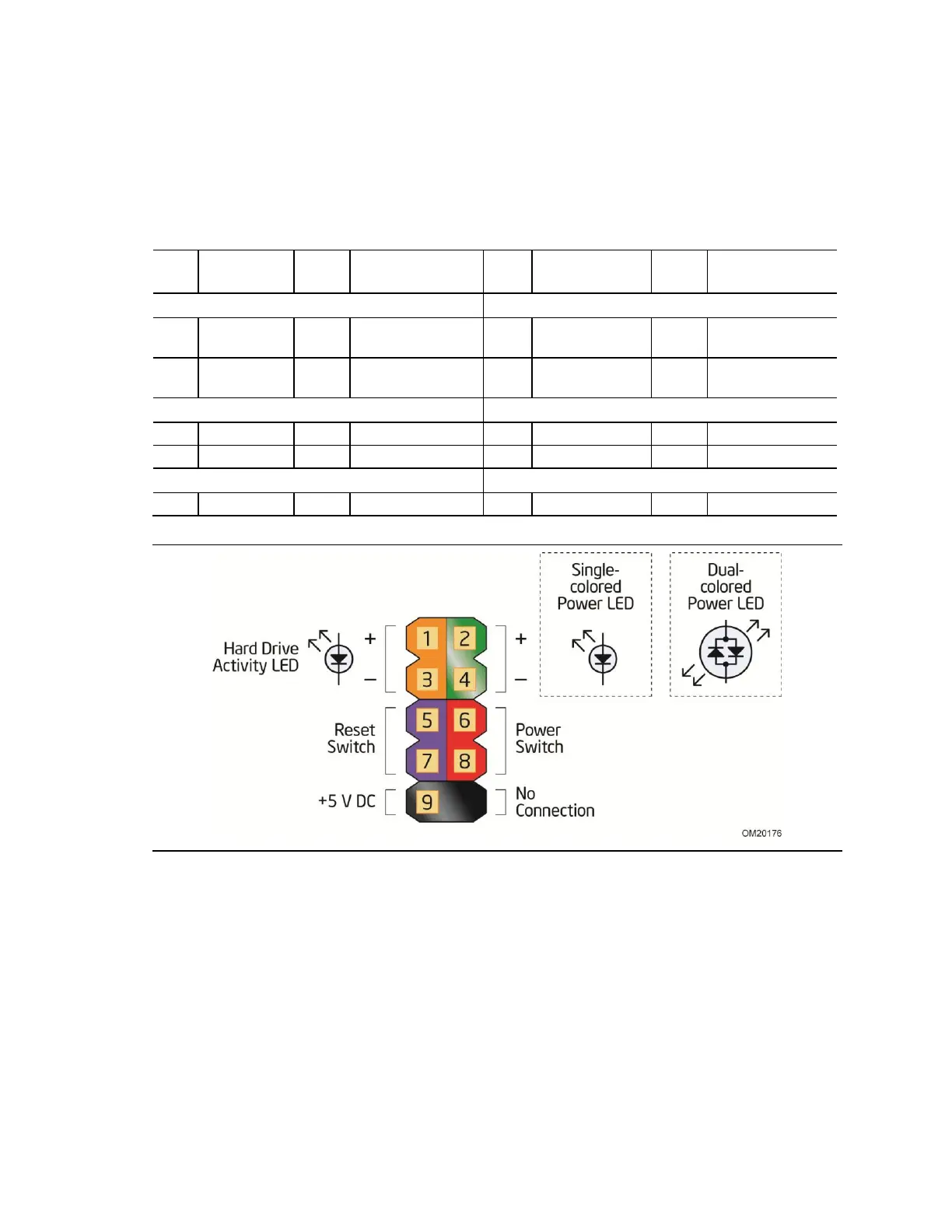

Figure 12. Connection Diagram for Front Panel Header
