2.11.1 Audio Subsystem Software
web site.
For information about
Refer to
Obtaining audio software and drivers
Section 2.2
2.11.2 Audio Connectors and Headers
The board contains audio connectors and headers on both the back panel and the
component side of the board. The component-side audio headers include front panel
audio (a 2 x 5-pin header that provides mic in and line out signals for front panel audio
connectors).
Item
Description
A
Line in
B
Line out
C
Mic in

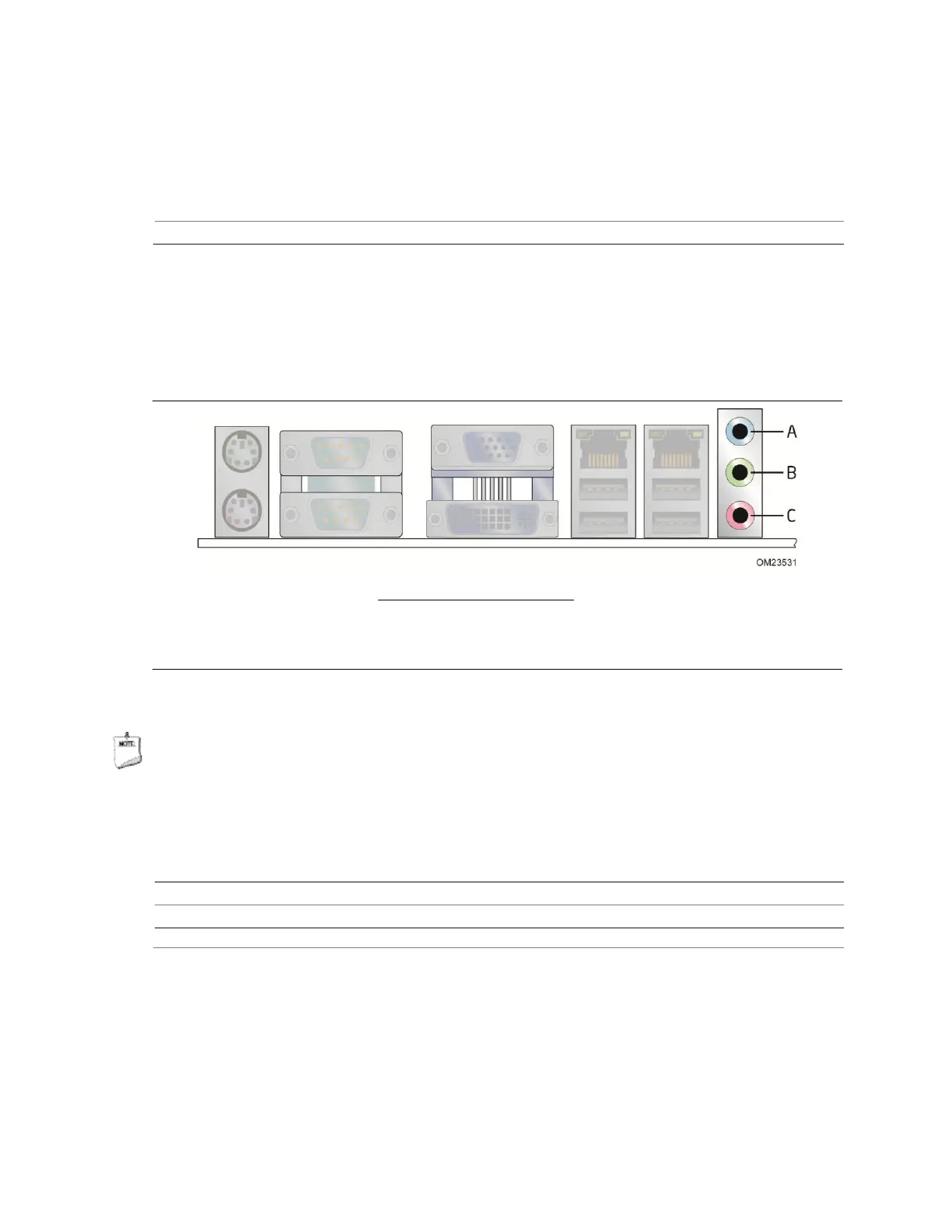

Figure 5. Back Panel Audio Connectors

NOTE
The back panel audio line out connector is designed to power headphones or amplified
speakers only. Poor audio quality occurs if passive (non-amplified) speakers are
connected to this output.
For information about
Refer to
The locations of the front panel audio header and S/PDIF audio header
Figure 11
The signal names of the front panel audio header and S/PDIF header
Section 3.2.2.1
The back panel audio connectors
Figure 5
