Embedded Intel® Atom Processor D2700 with Intel® NM10 Express Chipset 
49
3.2.2 Component-side Connectors and Headers
Figure 11 shows the locations of the component-side connectors and headers.

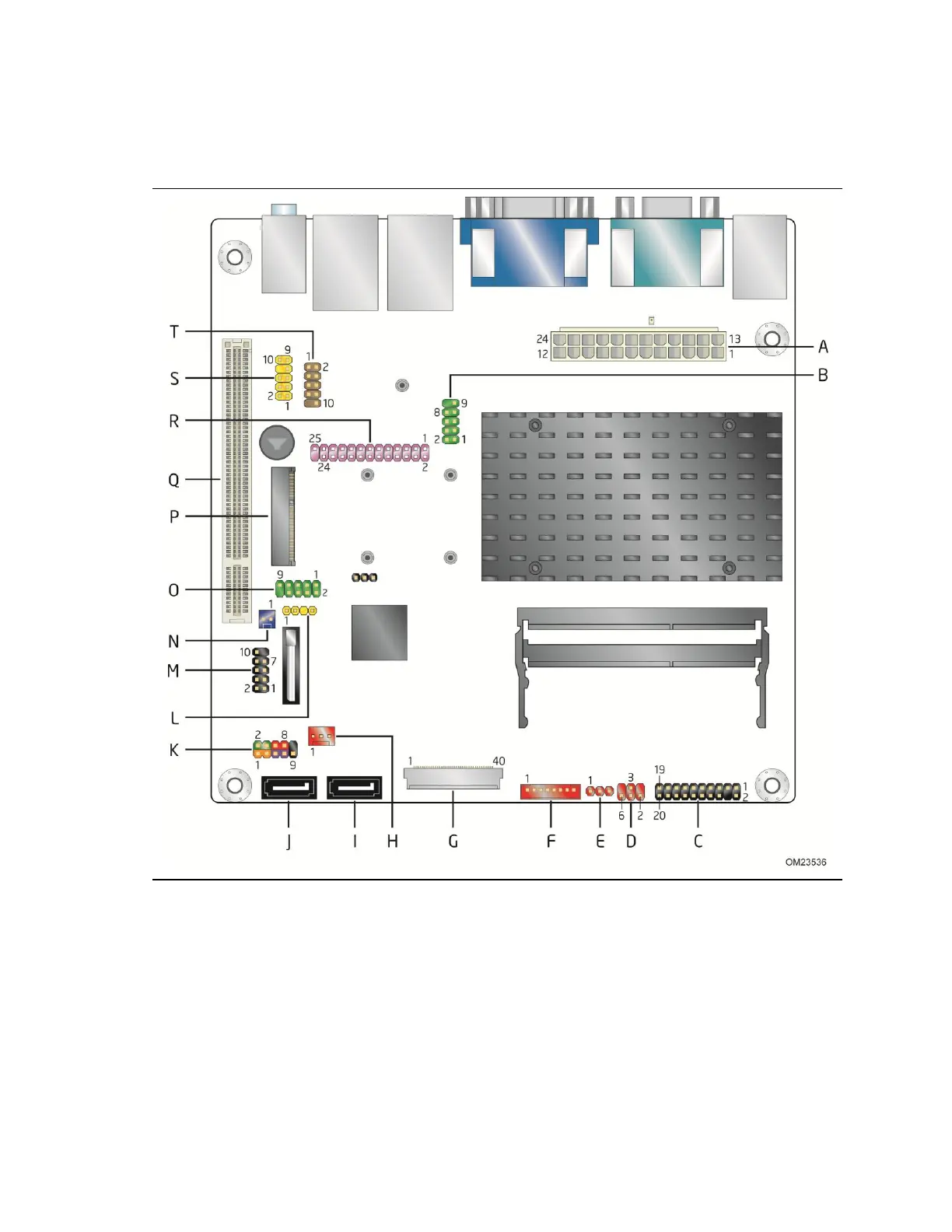

Figure 11. Component-side Connectors and Headers
