Embedded Intel® Atom Processor D2700 with Intel® NM10 Express Chipset
86

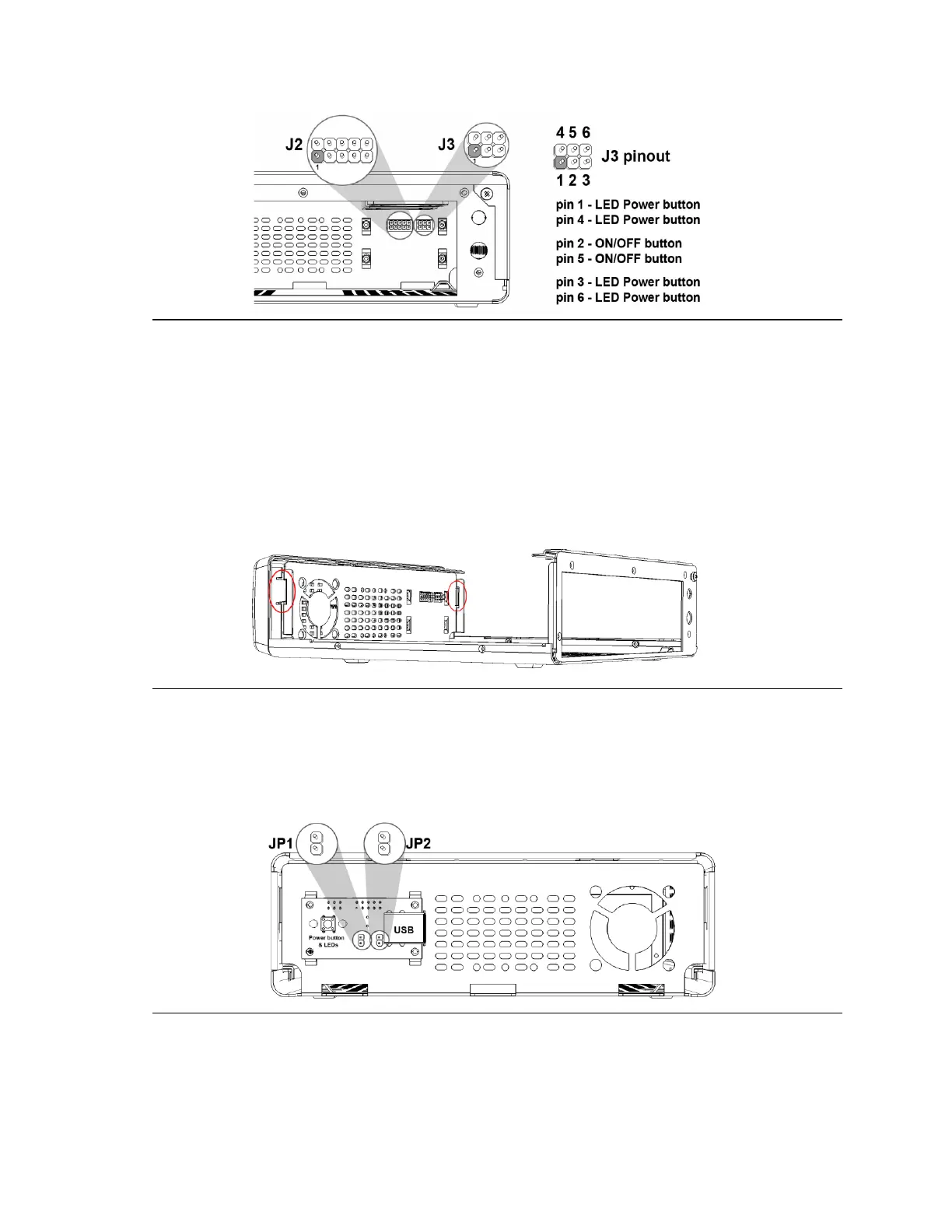

Figure 19 -- J2 (USB Header) and J3 (2x3) pin header, view from the back of
Enclosure
6.4 Installing USB devices under the front plate
The face plate is designed to conceal USB flash drives, Bluetooth, USB WIFI modules or
other USB devices. To add a USB device under the front plate, remove it by carefully
pressing outwards and gently pushing, one by one, the plastic lids from the sides (see
Figure 20).
Figure 20 -- Removing the front plate by pressing the left and right plastic lids
Near the front USB connector there are 2 jumpers (pictured in Figure 21) which are used
to customize how the board will start.
JP1: Disable On/Off power button (removing this jumper disables the power button).
JP2: Enable auto start (s
Figure 21 -- JP1, JP2 pin header and 2 x USB slots
Front view of the enclosure, with the front plate removed.
