C H A P T E R 1 Intel Express 510T Switch
Software features
The switch offers the following features:
• Intel Device View for Windows* 95, Windows* 98 and Windows
NT* or Intel Device View for Web
• Adaptive forwarding mode
• Local Management via a direct terminal connection or via TEL-
NET
• SNMP Management support
• BOOTP and TFTP support
• Control over user access rights
• Creation of virtual LANs
• Stand-alone (per switch or stack) or distributed (switch network)
VLAN
• IGMP Pruning
Front Panel
Introduction The LEDs on the front panel show the status of the ports, so you
should position the switch with the front panel facing you. You can
also see which ports the cables are connected to on the switch.

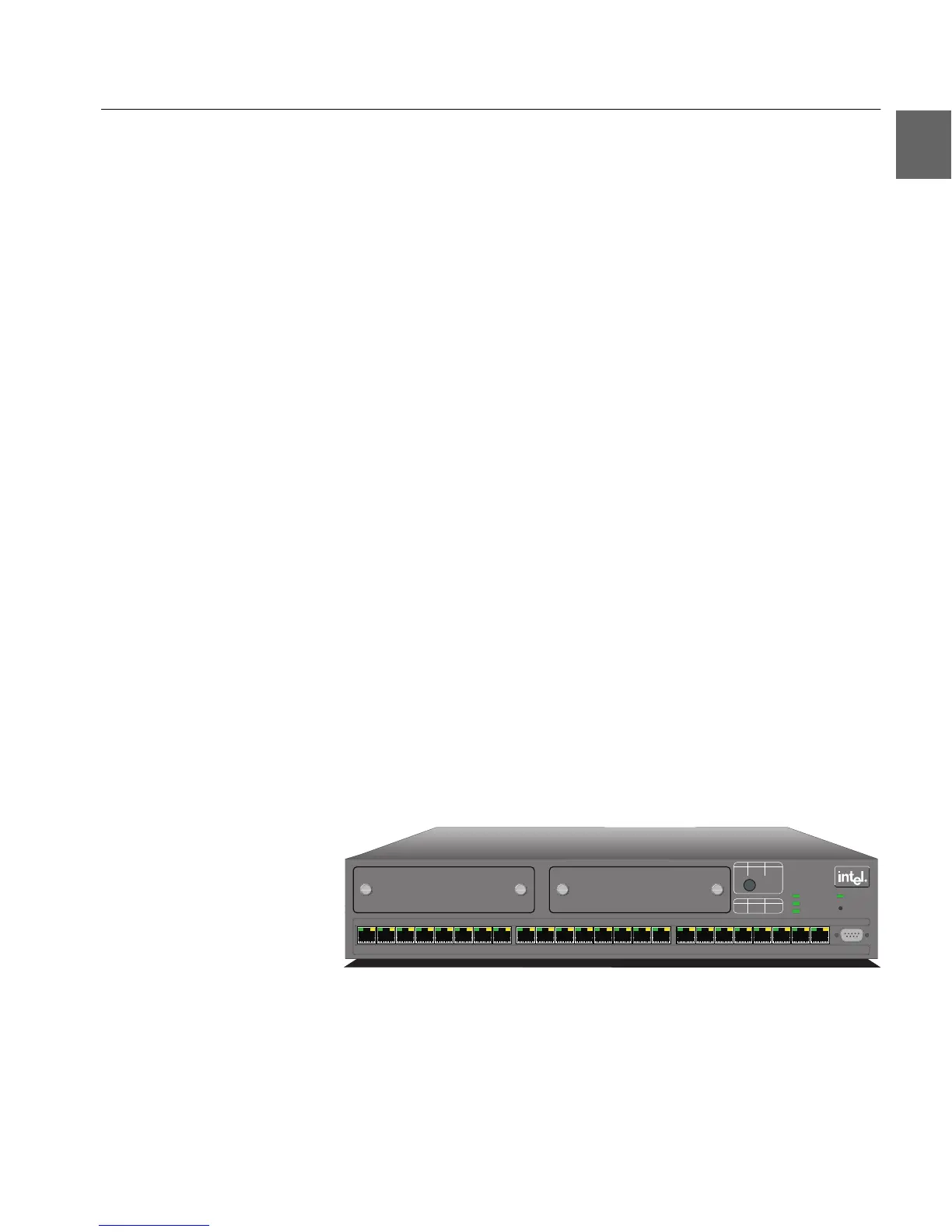

View of the front panel The front panel of the switch is shown below:
1589
Power
Intel Express
510T Switch
Status
Temperature
RPS
123 87654 9 10 11 1615141312 17 18 19 2423222120
Reset
Console
9600-8-N-1
Slot BSlot A
Blink Activity Collision
Solid Link Disable
LEDs Green Orange
Port Status
Solid 100 Mbps Full duplex
Off 10 Mbps Half duplex
LEDs Green Orange
