C H A P T E R 5 Managing the Switch

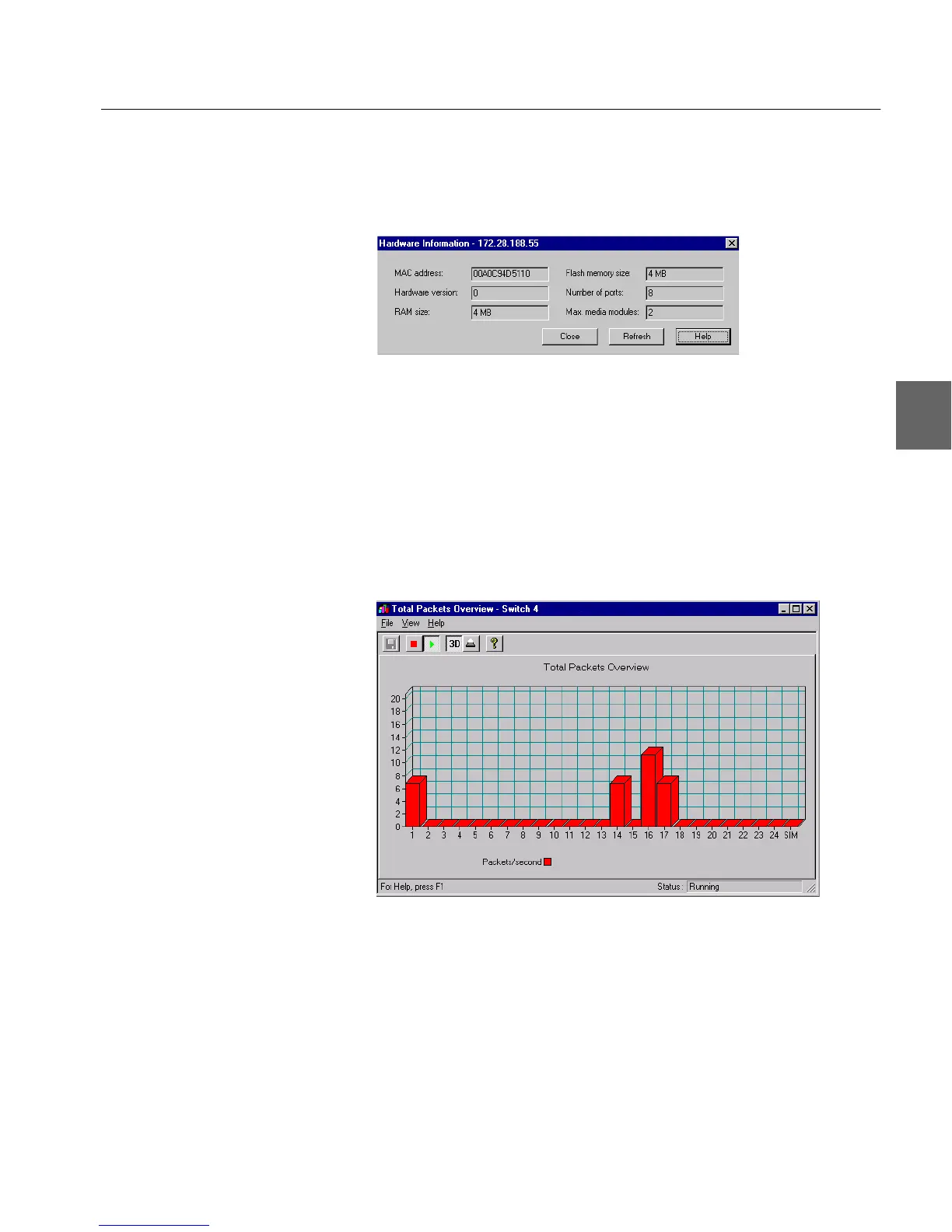

Hardware details
To see the MAC address, hardware version and memory size:
1 Click Monitoring>Hardware Information.
2 To update the information, click Refresh.
Monitoring the Switch’s Performance
Monitoring the total packet
activity
To view the total activity of the packets on all the ports:
1 Select Device Activity>Total Packets.
Each column represents a port and its activity level.
2 To see the exact value, hold the mouse pointer over a port.
3 Click View and change the presentation style: 3D- to 2D-
Graph, with or without a peak value indicator and vertical to
horizontal bars.
