Intel NUC5i5MYBE - Board Layout (Top); Major Board Components (Top)

Product Description
15
1.1.2 Board Layout (Top)

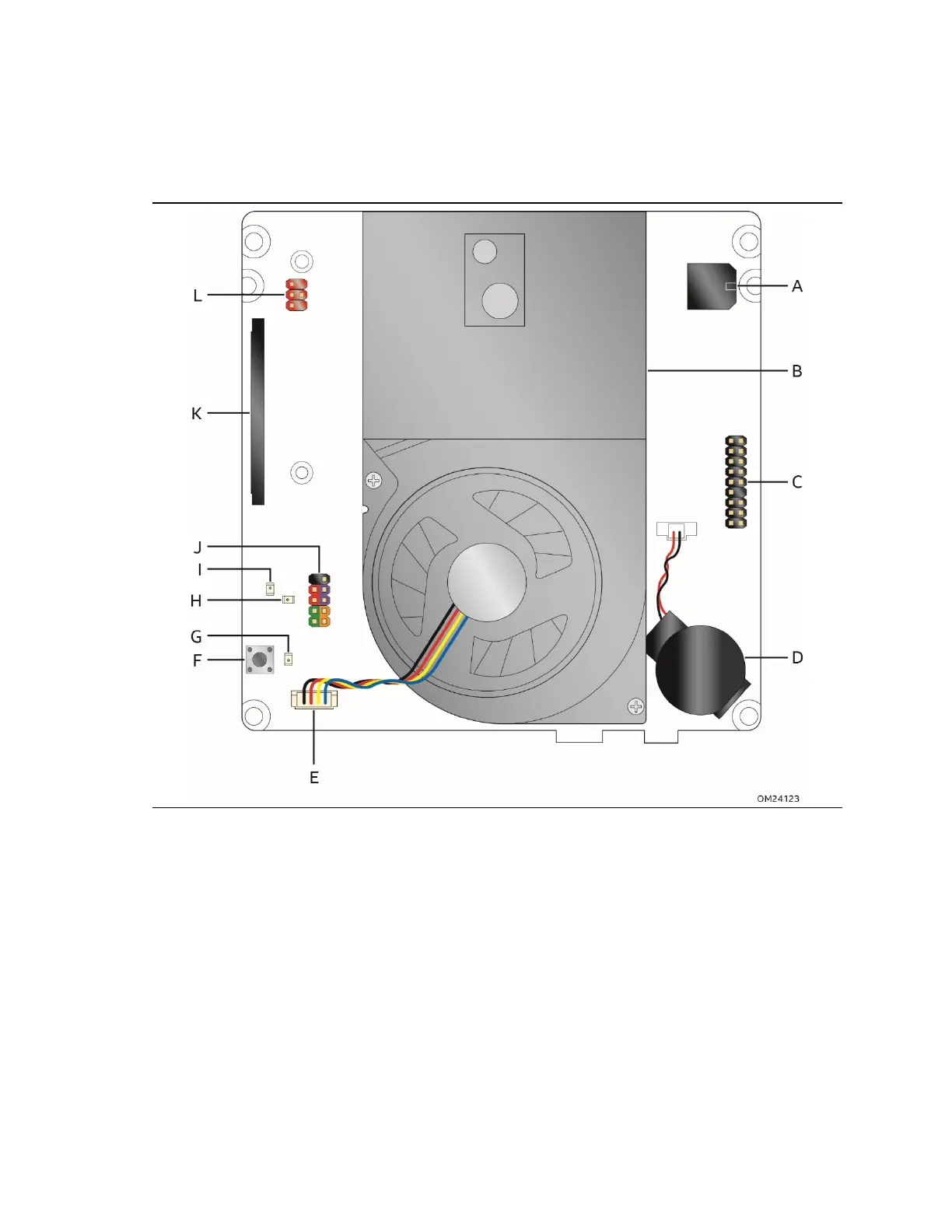

Figure 1 shows the location of the major components on the top-side of Intel NUC Board
NUC5i5MYBE.
Figure 1. Major Board Components (Top)
