2.2.4.7 Internal USB 2.0 Dual-Port Header (1.25 mm Pitch)
Figure 18 is a connection diagram for the internal USB header.
Connector is Molex part number 53398-0871, 1.25mm Pitch PicoBlade Header, Surface Mount,
Vertical, Lead-Free, 8 Circuits.
NOTE
• The +5 V DC power on the USB header is fused.
• Use only an internal USB connector that conforms to the USB 2.0 specification for high-speed
USB devices.

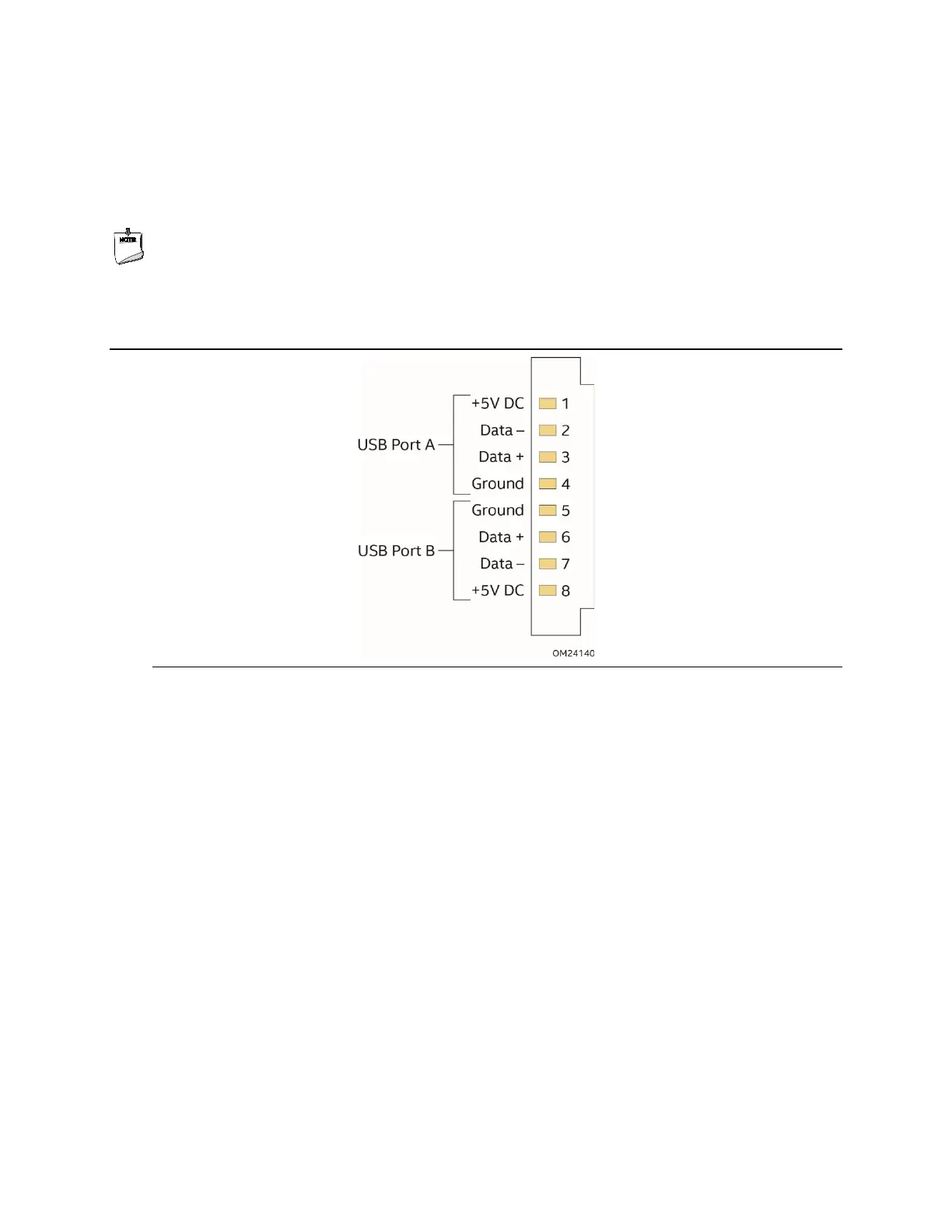

Figure 18. Connection Diagram for Internal
USB 2.0 Dual-Port Header (1.25 mm Pitch)
